ID Registration Procedure
ID Registration ProcedureID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL
NOTE: This procedure must be done after replacement of a low tire pressure warning transmitter or BCM. New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 before ID registration can be performed.
1. Connect CONSULT-III.
2. Select AIR PRESSURE MONITOR on BCM.
3. Select WORK SUPPORT and select "ID REGIST".

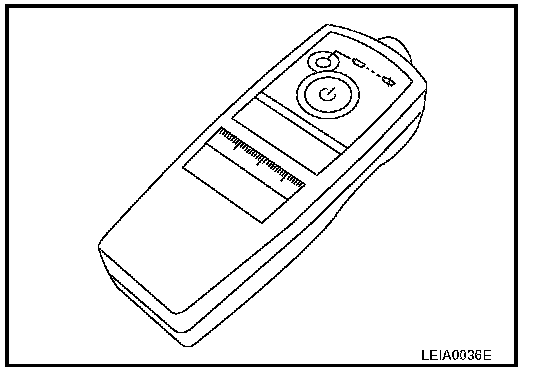

4. Push the transmitter activation tool against the tire near the front left transmitter. Press the button for 5 seconds.
Tool number: (J-45295)

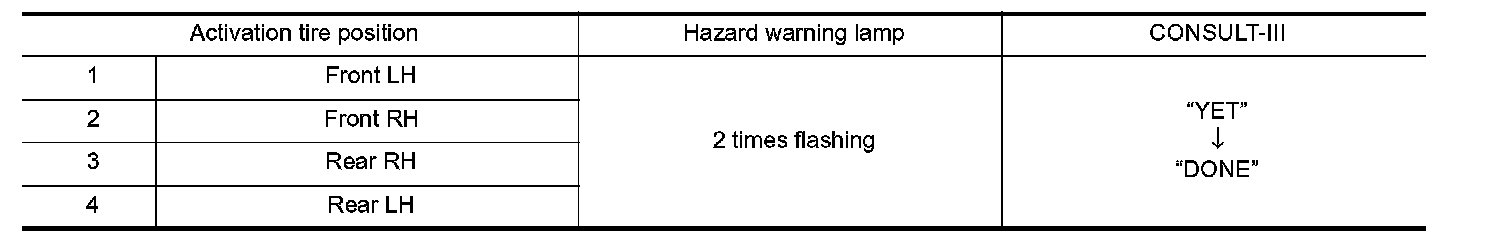

5. Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has been completed the hazard warning lamps flash.
6. After completing all ID registrations, press END to complete the procedure.
NOTE: Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results display will not function properly.
ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL
NOTE: This procedure must be done after replacement of a low tire pressure warning transmitter or BCM. New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 before ID registration can be performed.
1. Connect CONSULT-III.
2. Select AIR PRESSURE MONITOR on BCM.
3. Select WORK SUPPORT and select "ID REGIST".

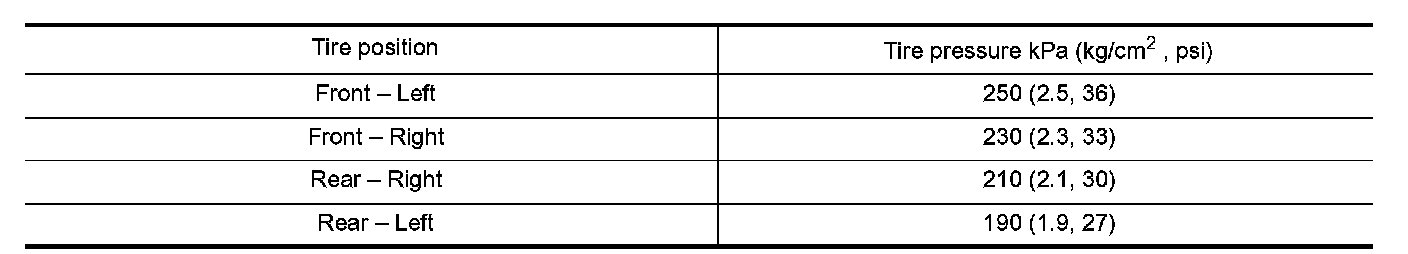

4. Adjust the tire pressure to the values shown in the table and drive the vehicle at 40 km/h (25 MPH) or more for a few minutes.
5. After completing all ID registrations, press END to complete the procedure.
6. Inflate all tires to proper pressure.
