Rear Suspension

Exploded View RSU-7:

SHOCK ABSORBER

Removal and Installation
REMOVAL
1. Set jack under rear suspension beam.

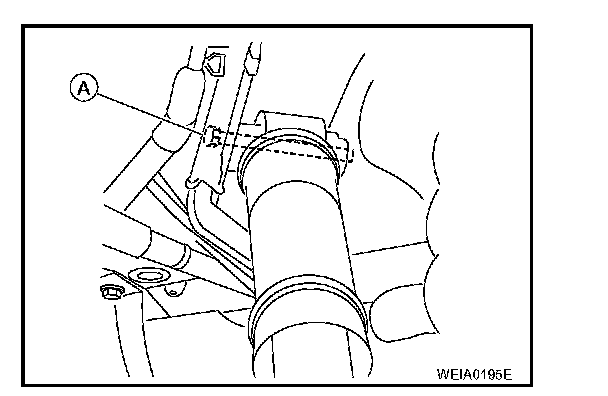

2. Remove upper shock absorber bolt (A).

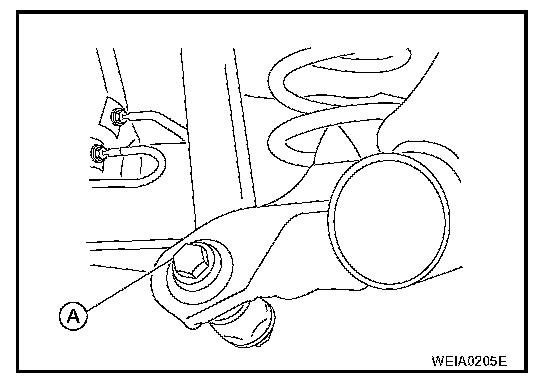

3. Remove shock absorber lower bolt (A).
4. Remove the shock absorber from vehicle.

INSPECTION AFTER REMOVAL
Shock Absorber
Check the following:
^ Shock absorber for deformation, cracks or damage, and replace if necessary.
^ Piston rod for damage, uneven wear or distortion, and replace if necessary.

INSTALLATION
Installation is in the reverse order of removal. For tightening specifications, refer to Exploded View RSU-7.
