Suspension Spring ( Coil / Leaf ): Service and Repair

Exploded View RSU-7:

COIL SPRING

Removal and Installation
REMOVAL
1. Set jack under rear suspension beam.

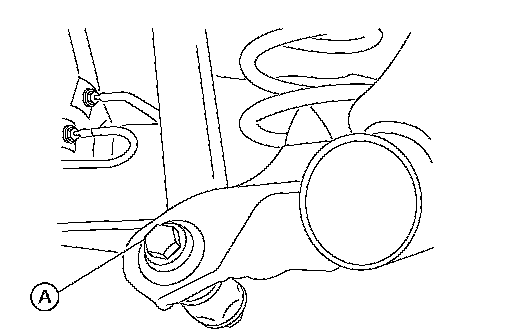

2. Remove both shock absorber lower bolts (A).
3. Gradually lower the jack, and then remove coil spring, bound bumper and rear spring rubber seat.

INSPECTION AFTER REMOVAL
Check coil spring and spring rubber seat for deformation, cracks, and damage, and replace it if a malfunction is detected.

INSTALLATION
Installation is in the reverse order of removal. For tightening specifications, refer to Exploded View RSU-7.

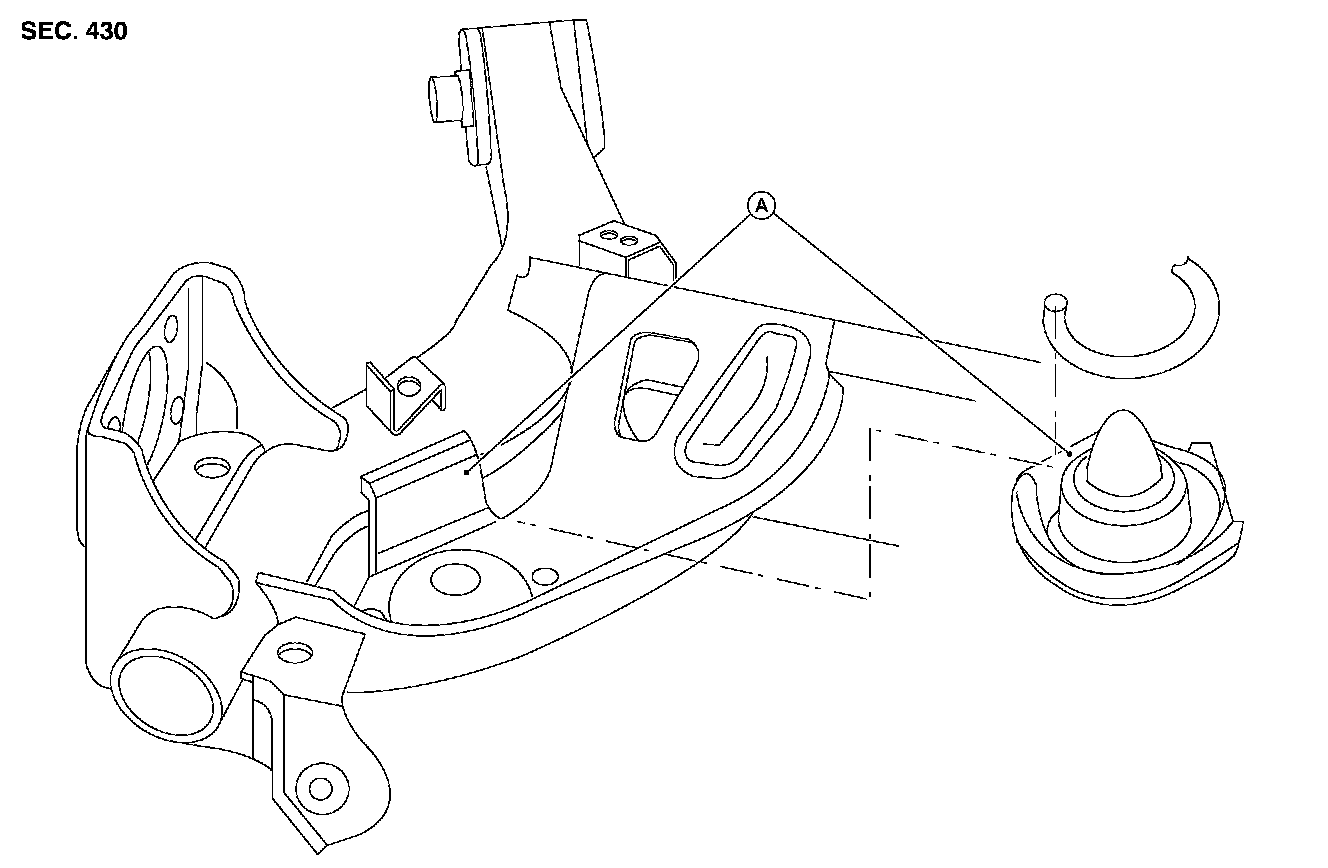

^ When installing rear spring rubber seat, be sure that the flat areas (A) are aligned.

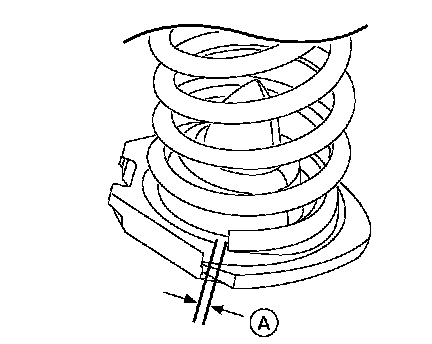

^ When installing rear spring, be sure that the gap is less than 5 mm.
