EPS System
>>
Symptom Matrix Chart
Symptom Matrix Chart

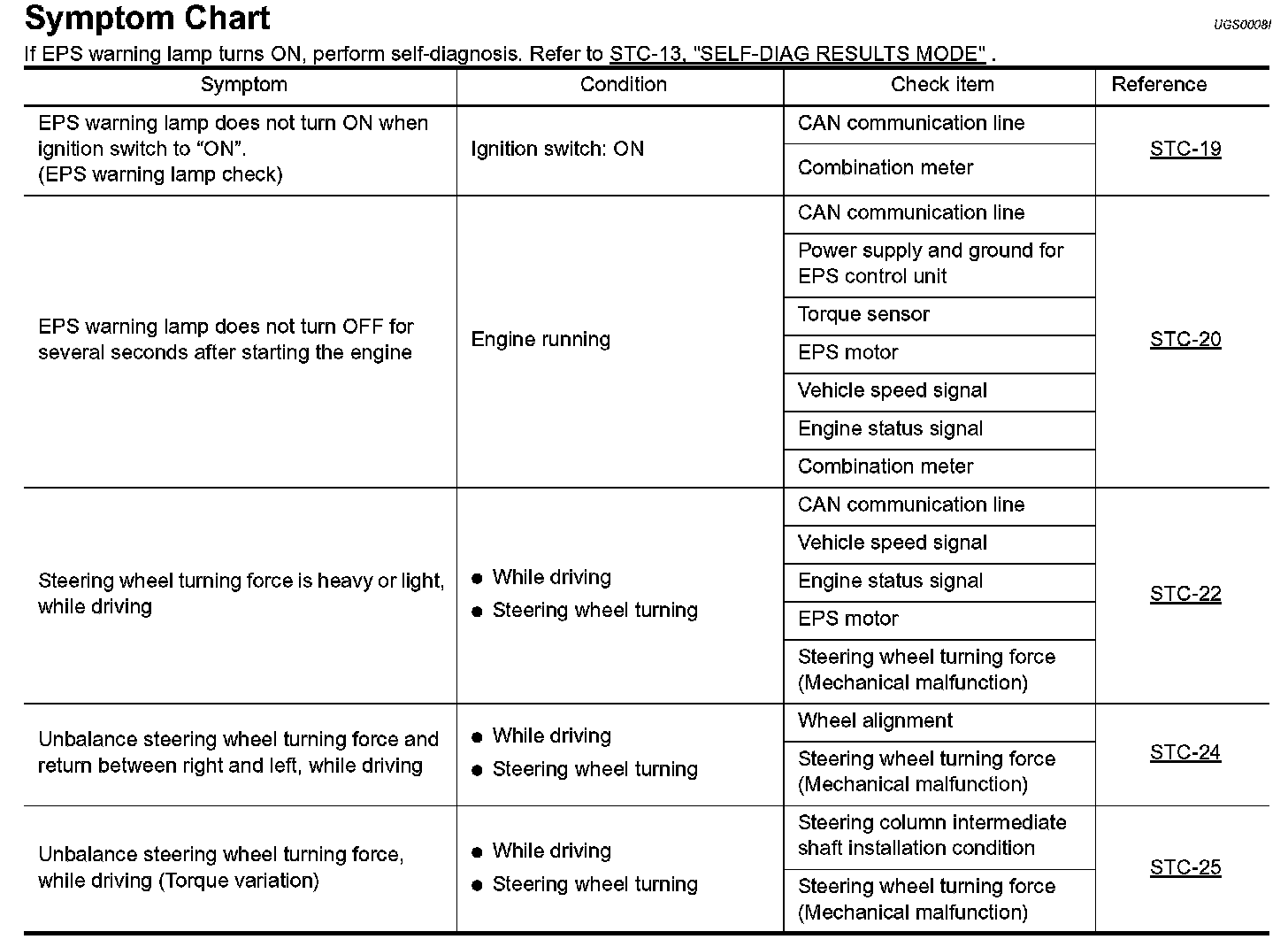

Symptom Chart
If EPS warning lamp turns ON, perform self-diagnosis. Refer to STC-13, "SELF-DIAG RESULTS MODE".
Electronically Controlled Power Steering System (EPS)
