Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Specifications >> Steering Column

Steering Column

Steering Column

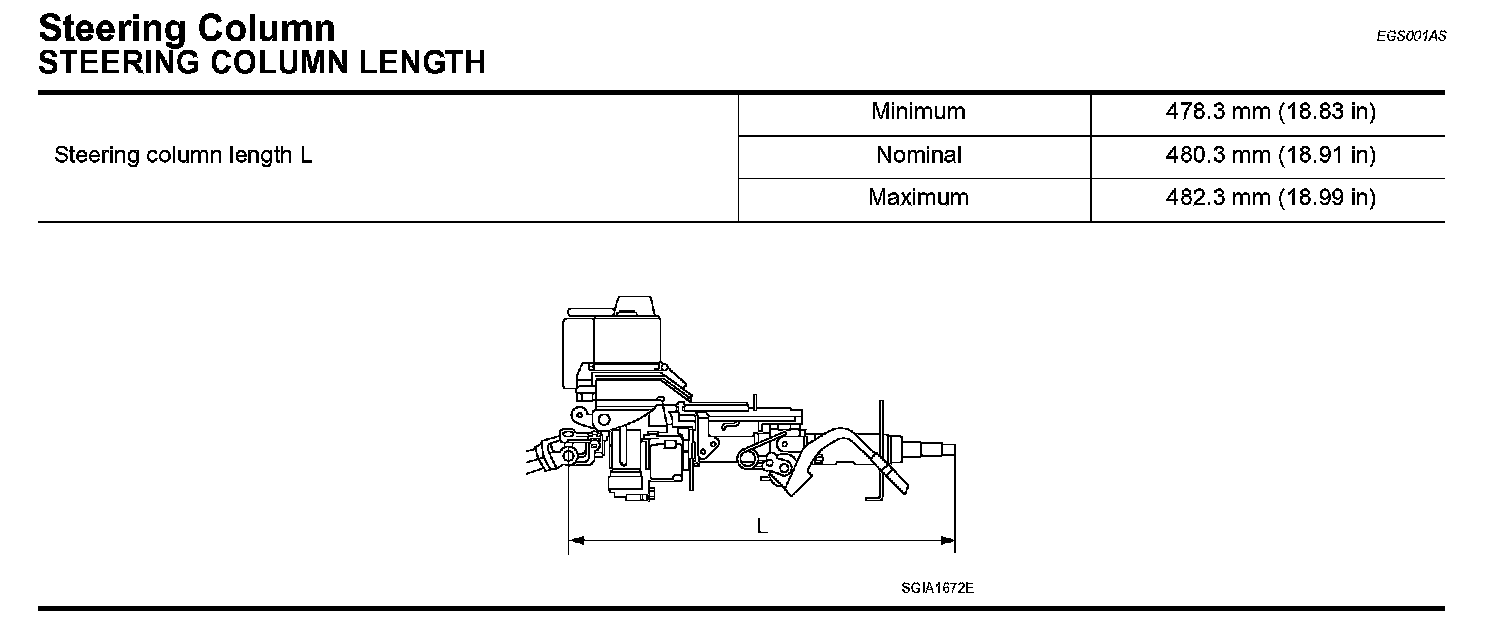

STEERING COLUMN LENGTH

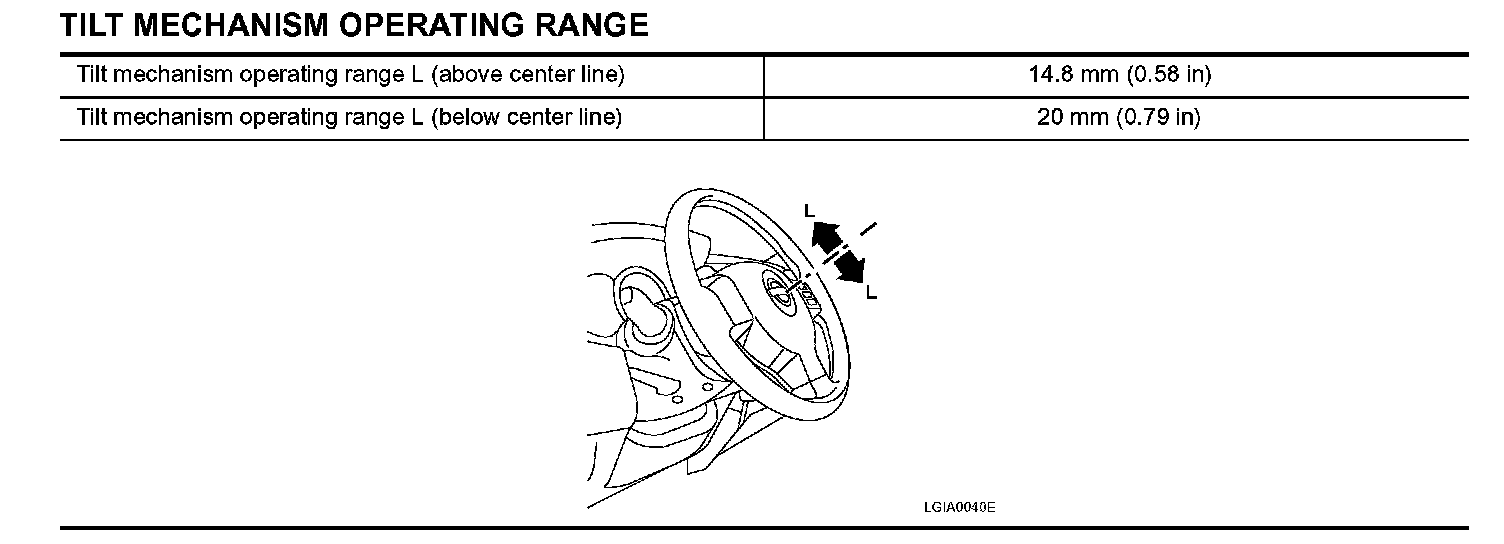

TILT MECHANISM OPERATING RANGE
