Auxiliary Power Outlet: Service and Repair

POWER SOCKET

Removal and Installation

REMOVAL
1. Remove the center console.
2. Remove the instrument lower covers (LH) and (RH). Refer to "INSTRUMENT PANEL ASSEMBLY".
3. Remove the instrument lower cover (center). Refer to "INSTRUMENT PANEL ASSEMBLY".

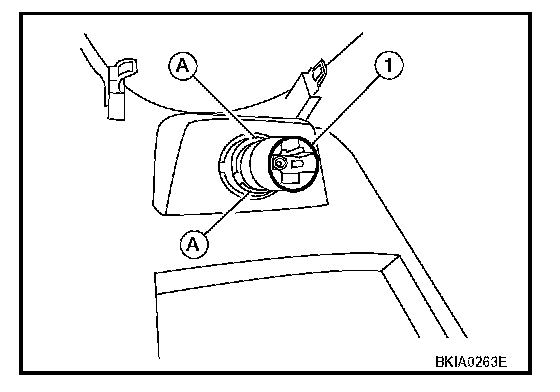

4. Remove the power socket (1) while pressing the tabs (A) on the ring, disconnect the power socket connector.

INSTALLATION
Installation is in the reverse order of removal.
