Exhaust Manifold

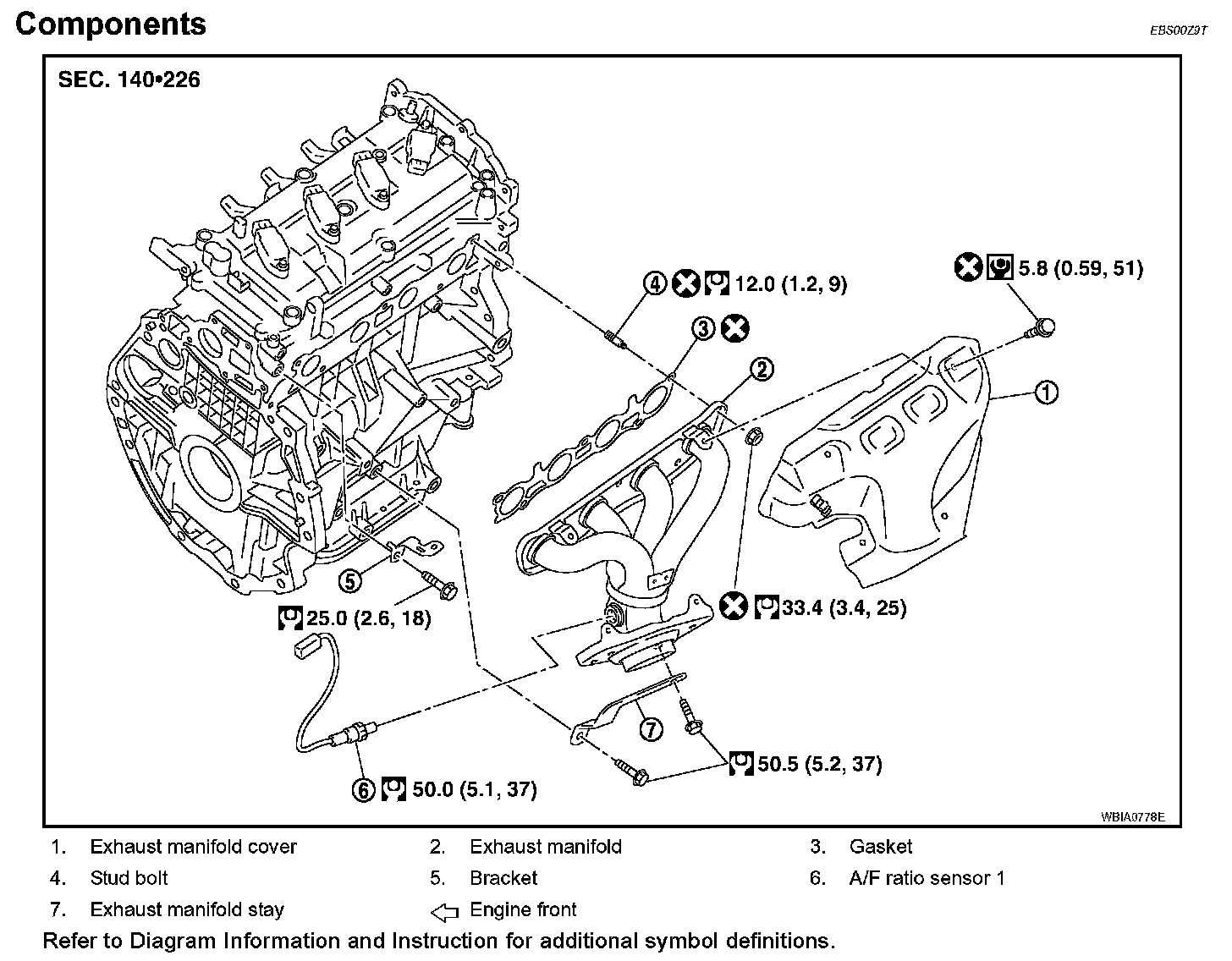

Exploded View EM-23:





Exhaust Manifold

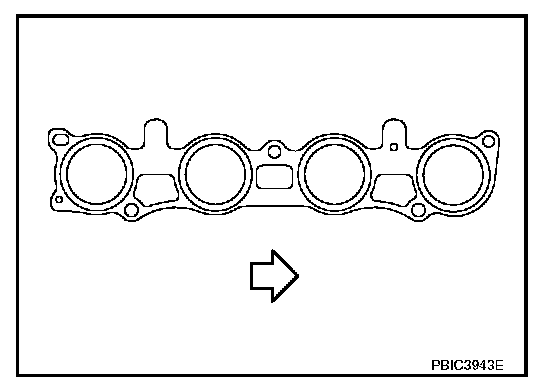

Install exhaust manifold gasket to cylinder head as shown.
<-: Engine front

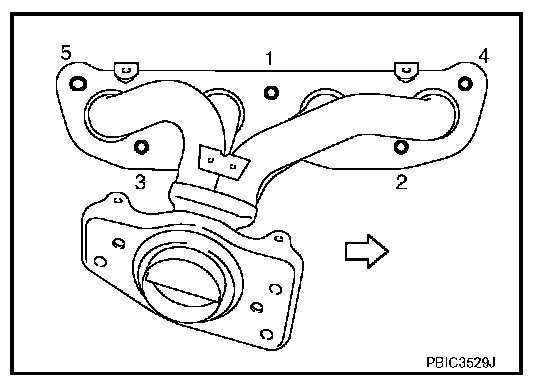

Tighten exhaust manifold nuts to specification in two stages in the numerical order as shown.
<-: Engine front
