Windshield Washer Switch: Service and Repair

Removal and Installation of Front Wiper and Washer Switch

REMOVAL
1. Remove the steering column cover. Refer to "INSTRUMENT PANEL ASSEMBLY".
2. Disconnect the wiper and washer switch connector.

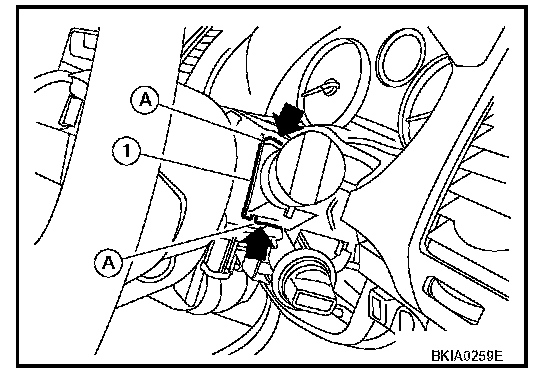

3. Pull wiper and washer switch (1) toward the passenger door while pressing pawls (A) in direction shown by the arrow, and remove it from the base.

INSTALLATION
Installation is in the reverse order of removal.
