Transmission Position Sensor/Switch: Service and Repair

Park/Neutral Position (PNP) Switch

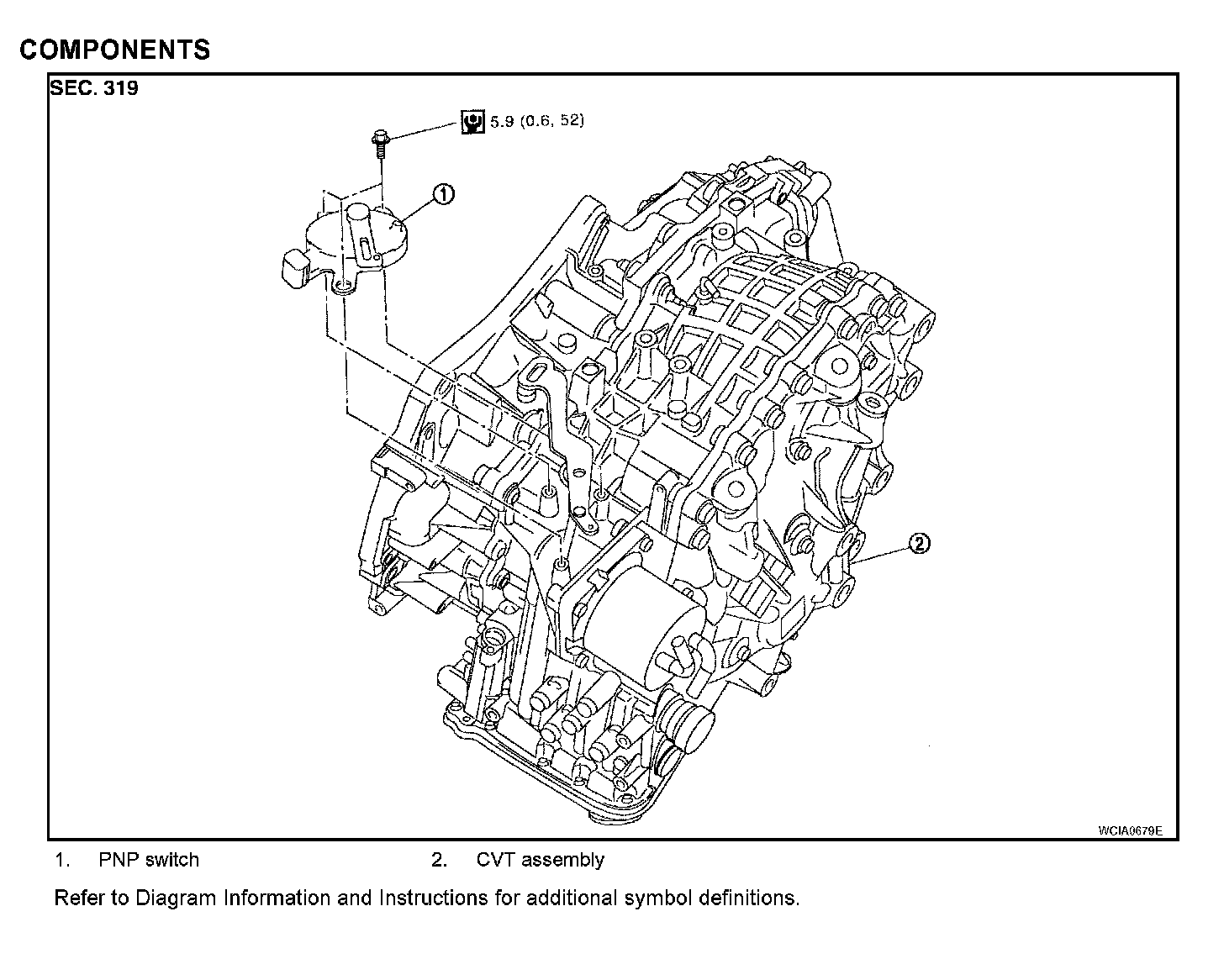

Exploded View CVT-195:

NOTE:
^ Align PNP switch position when installing.
^ After installation of PNP switch, check the continuity of PNP switch.
^ After installation is complete, adjust and check CVT position.
