Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Electric Load Sensor >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

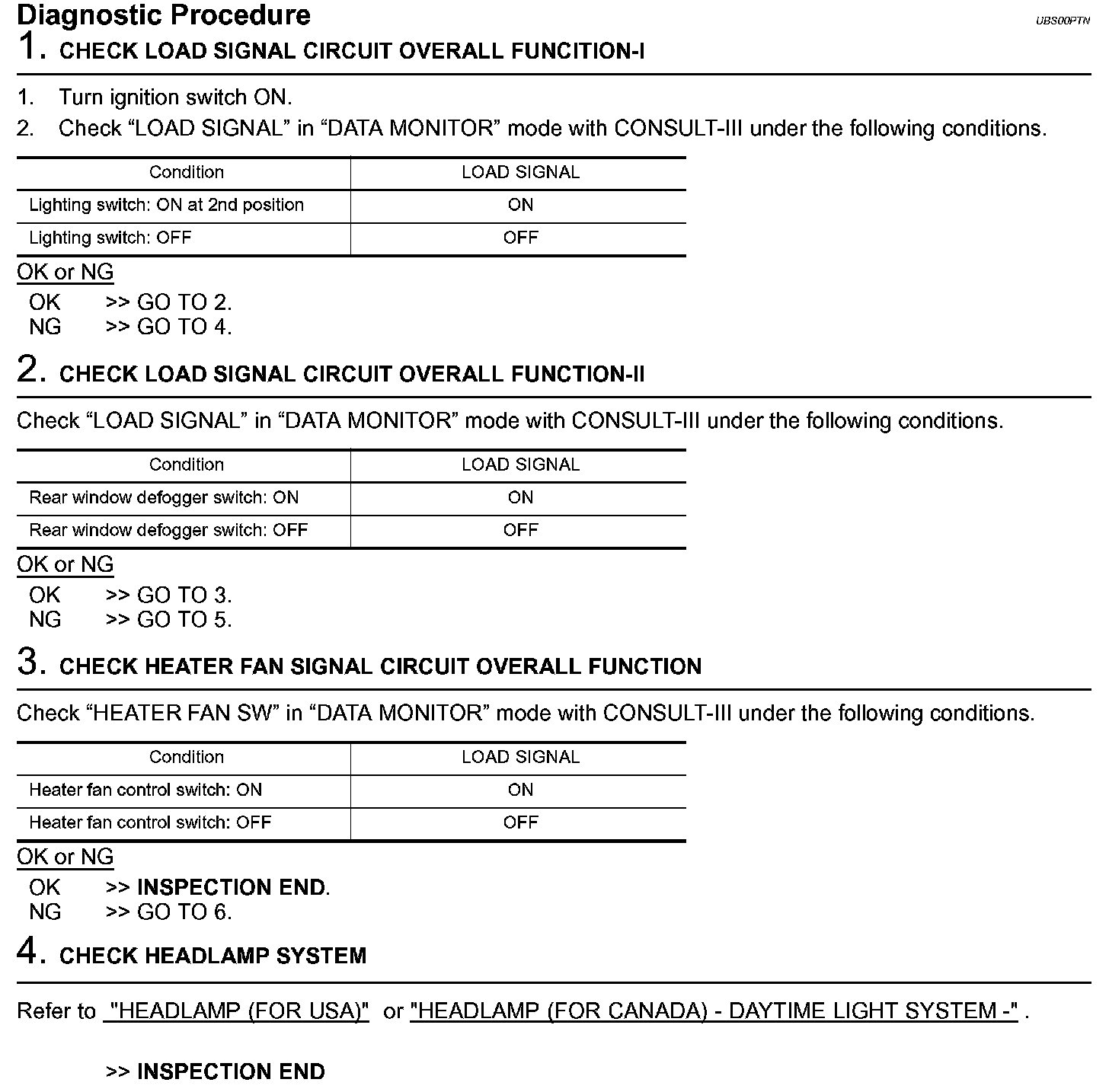

Step 1-4:

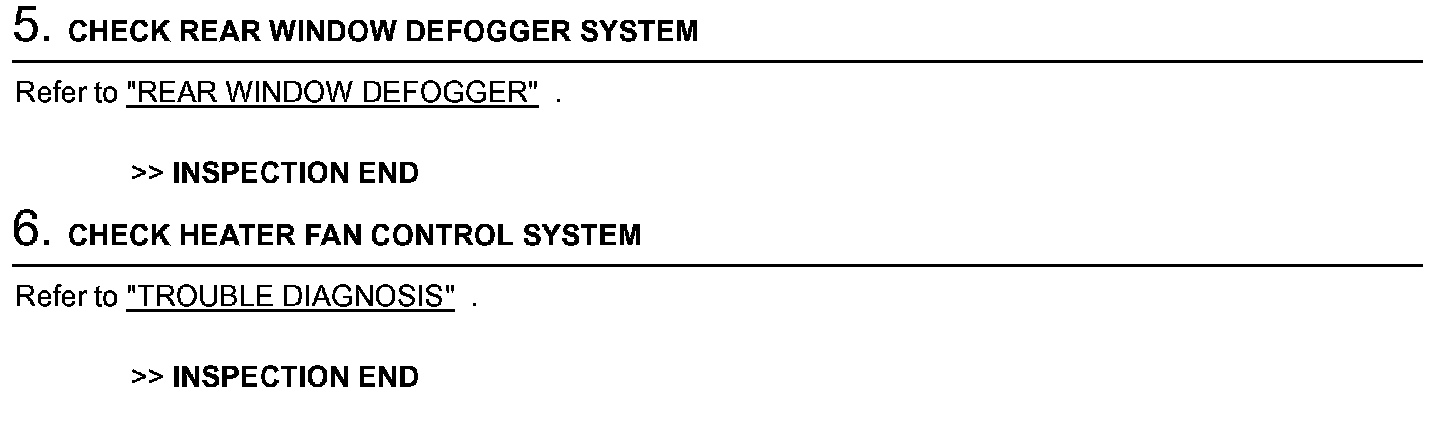

Step 5-6:
