Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Brake Switch (Cruise Control) >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Procedure

Diagnostic Procedure

Step 1:

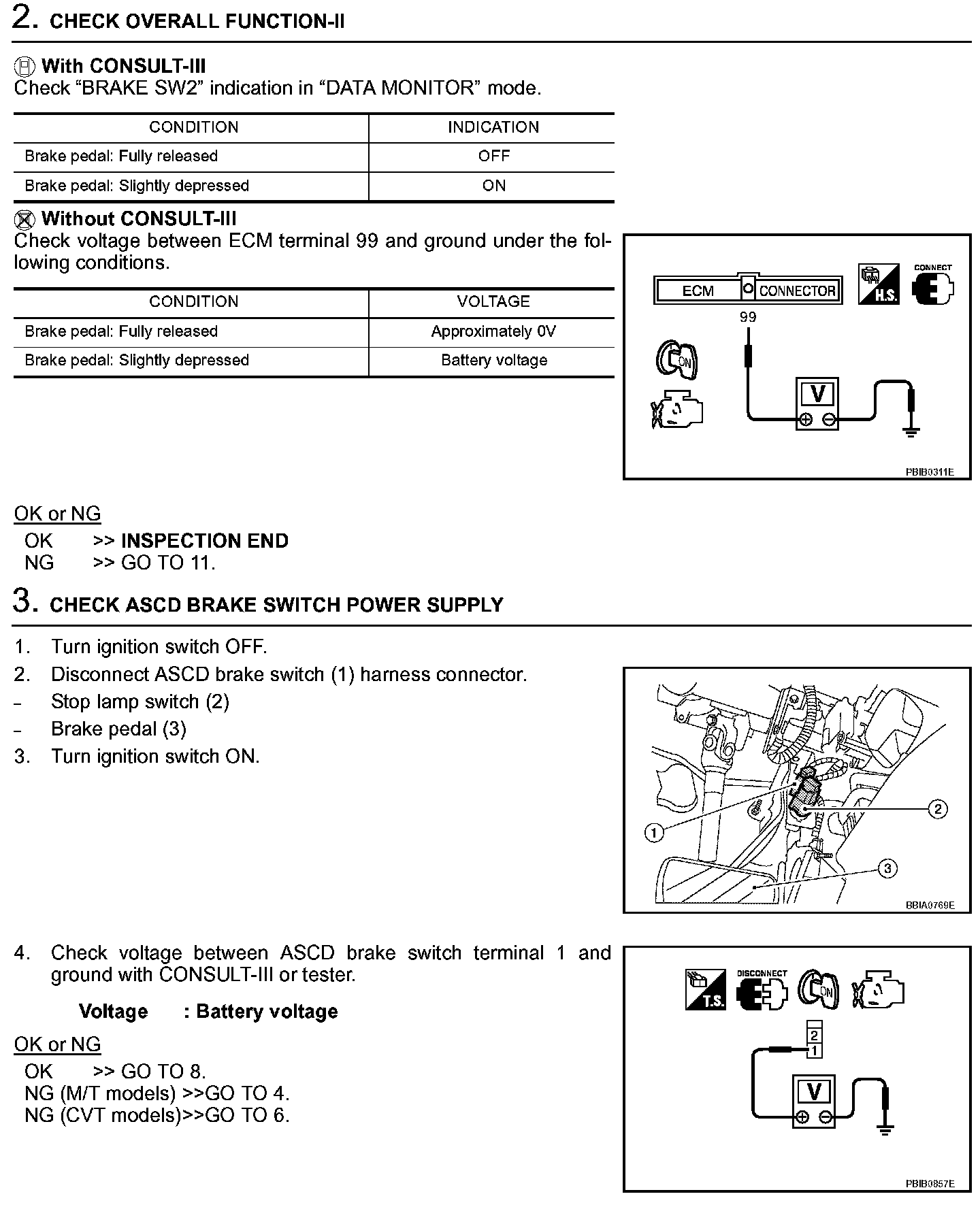

Step 2-3:

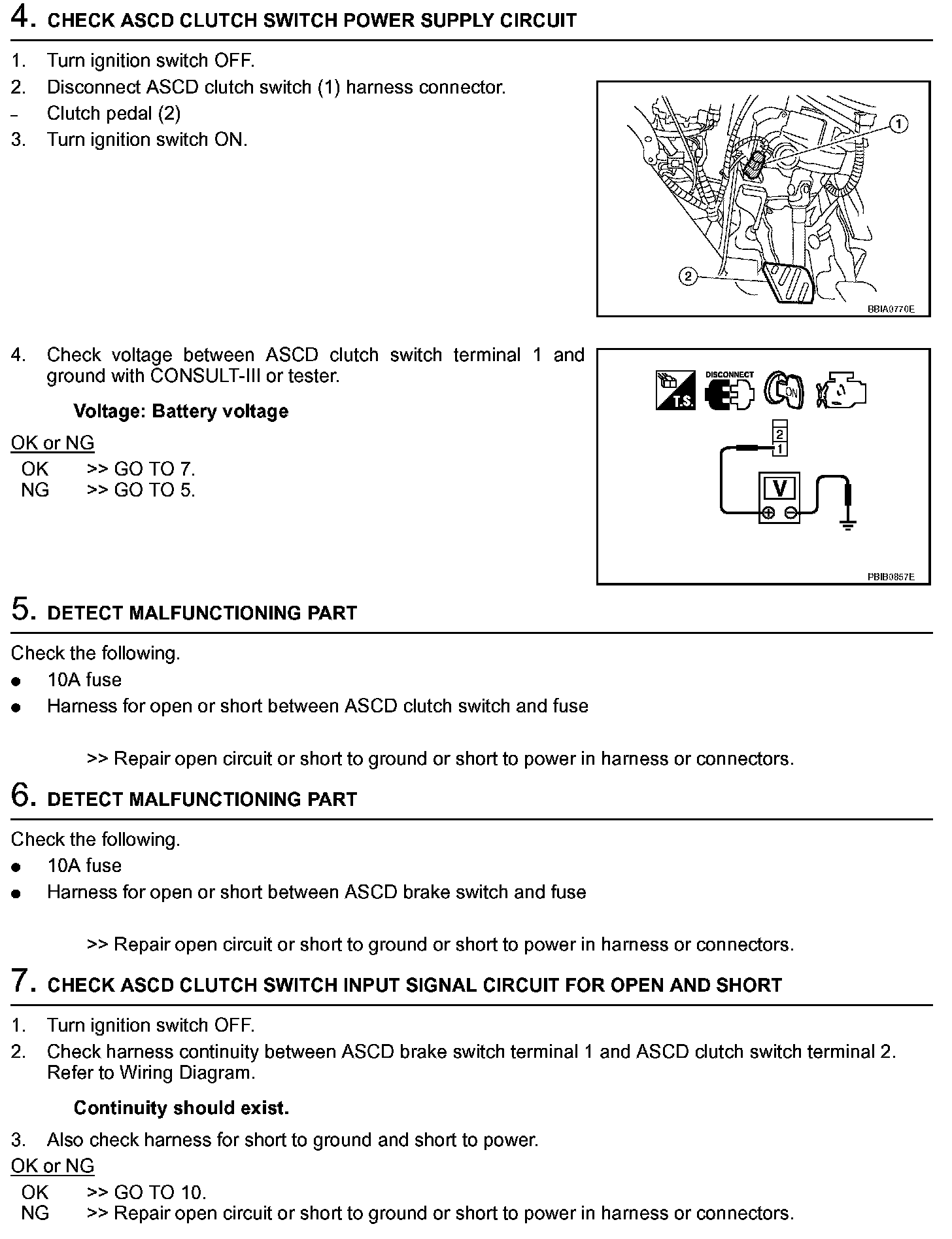

Step 4-7:

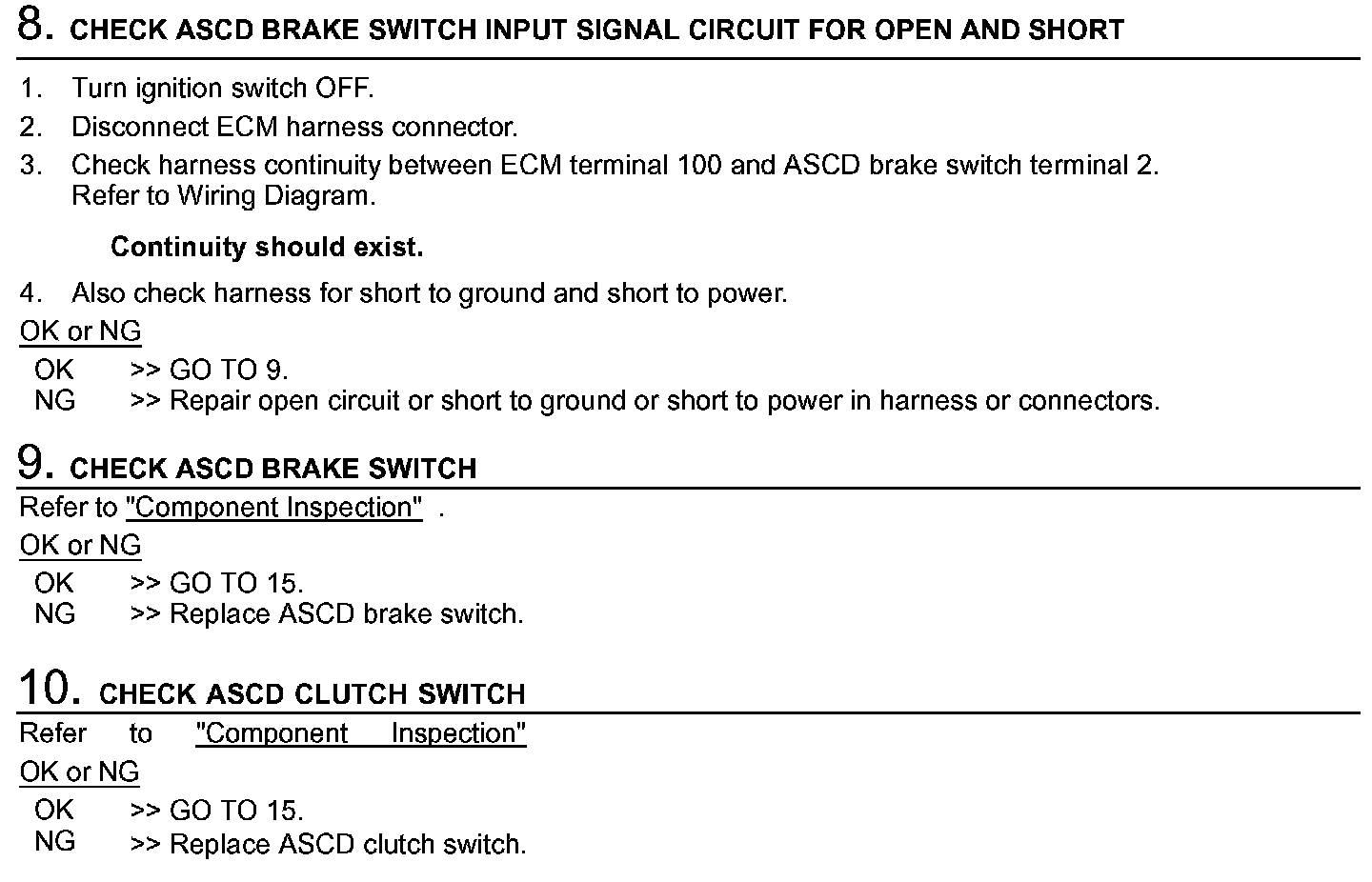

Step 8-10:

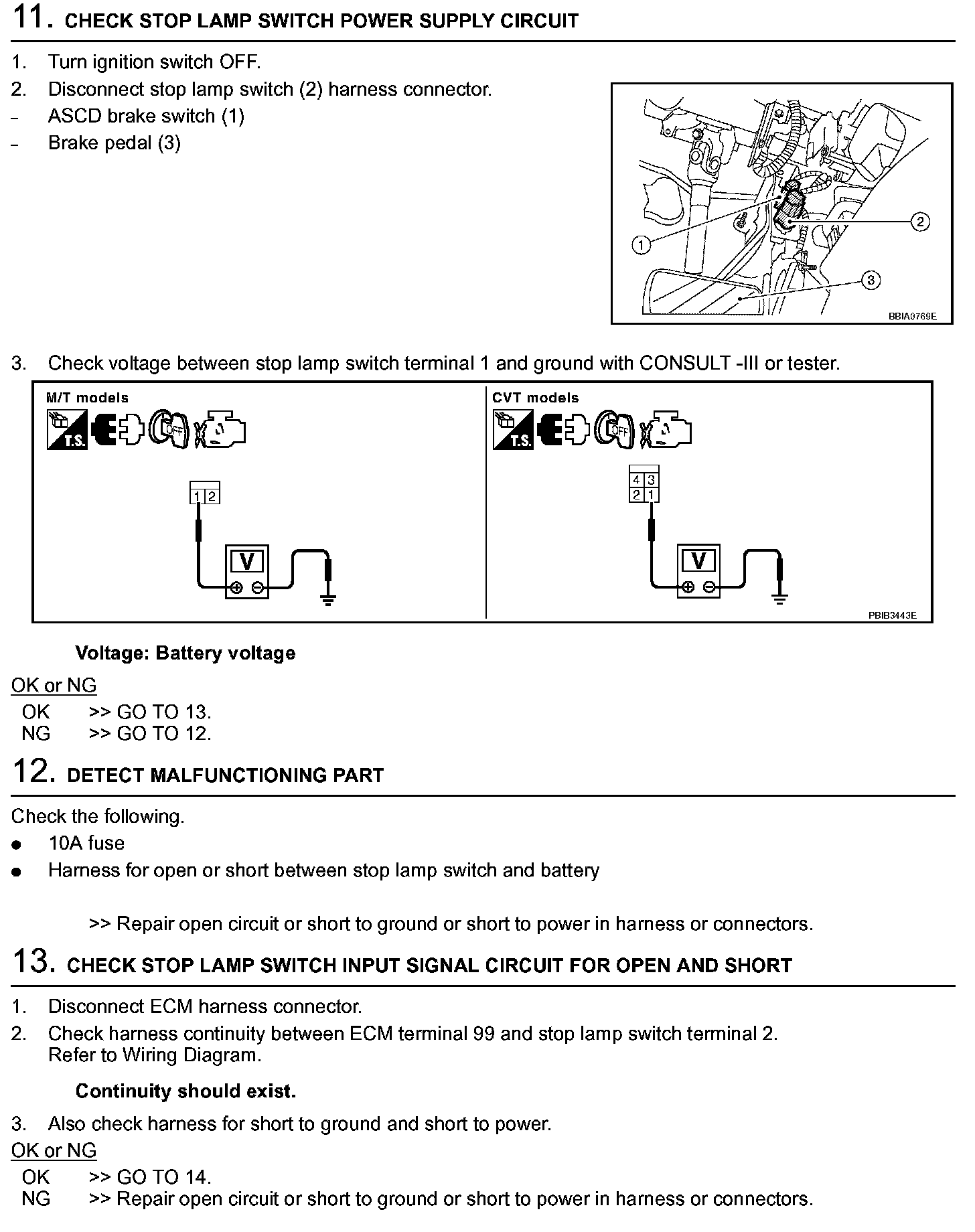

Step 11-13:

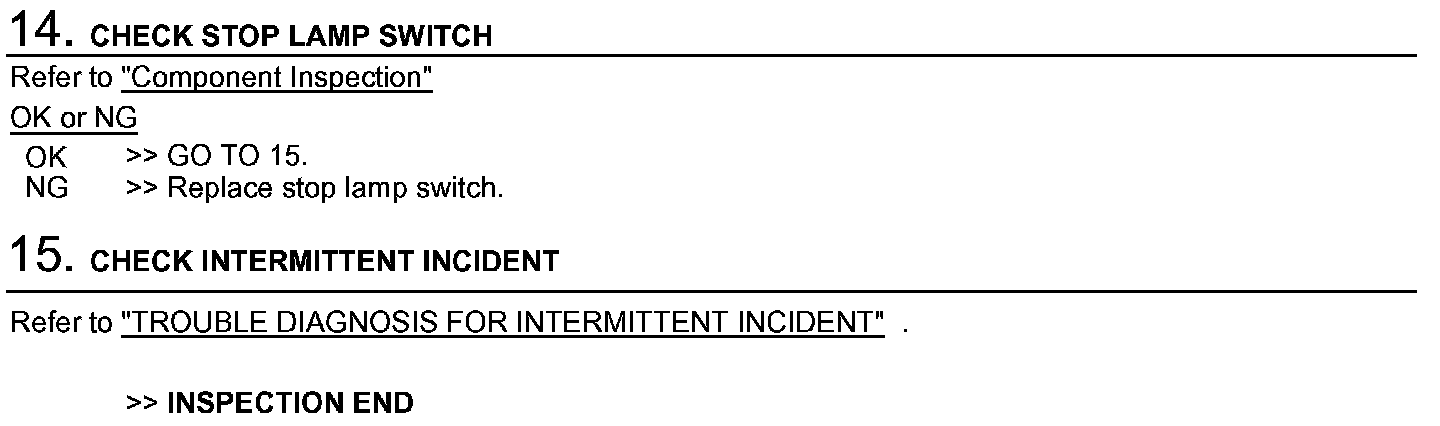

Step 14-15:
