Front

SEAT BELTS





Refer to Diagram Information and Instructions for additional symbol definitions. Key to Symbols Used In Illustrations

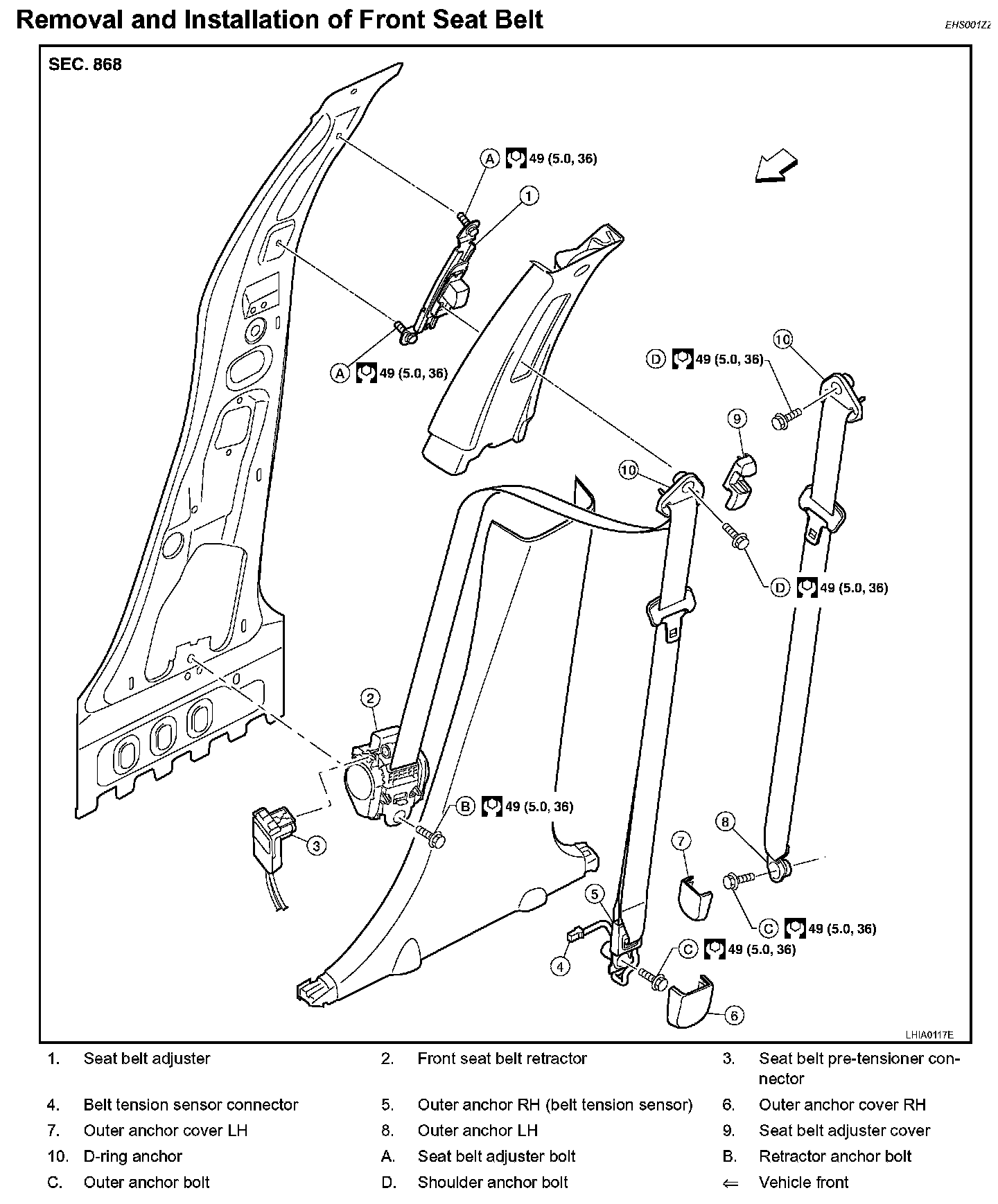

Removal and Installation of Front Seat Belt

CAUTION: Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
