Side Air Bag: Service and Repair

SIDE CURTAIN AIR BAG MODULE

Image Symbols:

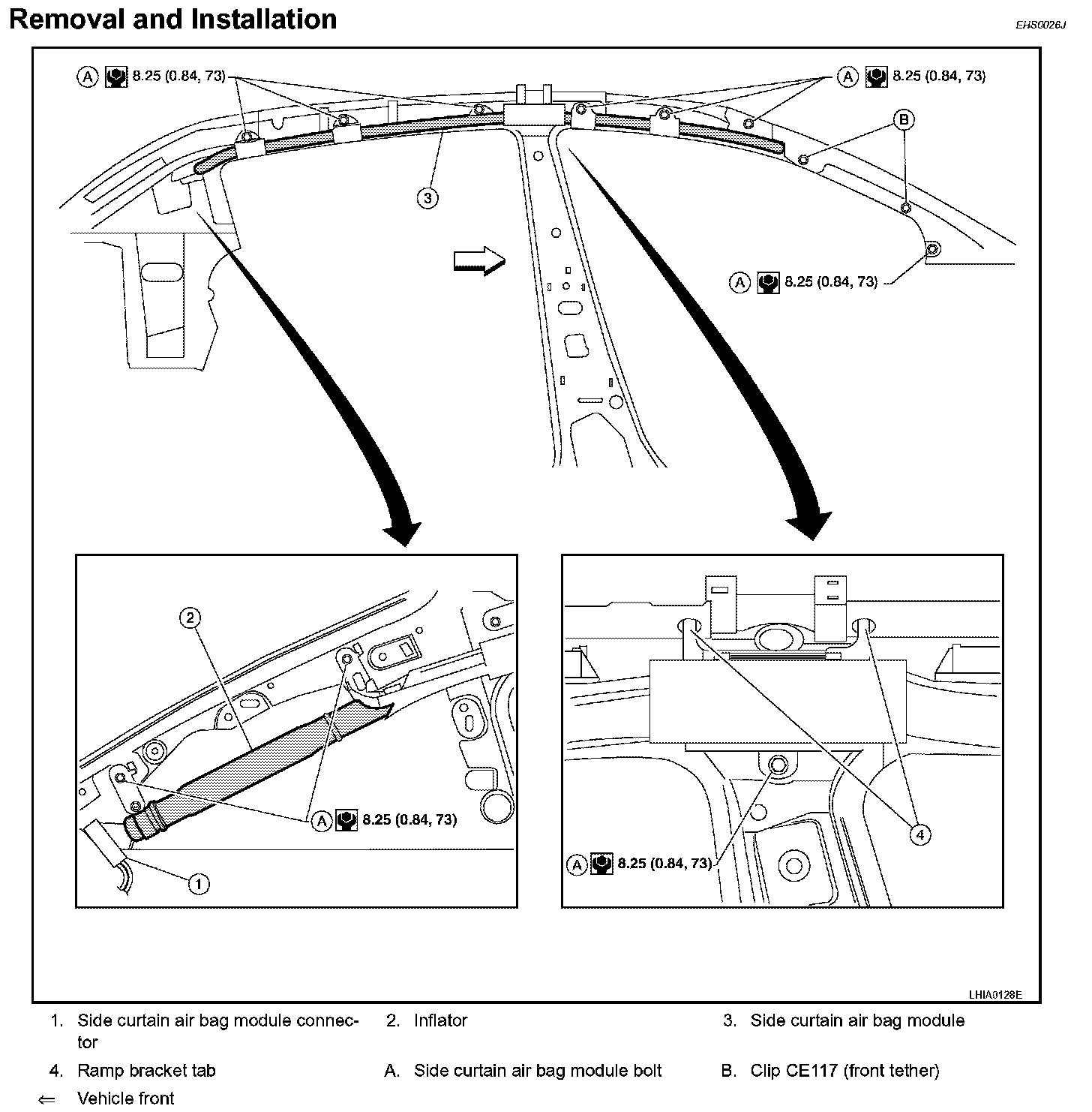

Removal and Installation

REMOVAL

WARNING:
- When servicing the SRS, do not work from directly in front of side curtain air bag module.
- Always place the curtain air bag module with deployment side facing upward.

CAUTION:
- Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least 3 minutes.
- Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
- Do not attempt to disassemble side curtain air bag module.
- Do not expose the side curtain air bag module to temperatures exceeding 90 °C (194 °F).




- Replace the side curtain air bag module if it has been dropped or sustained an impact.
- Do not allow oil, grease or water to come in contact with the side curtain air bag module.
- Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a direct-connect harness connector is damaged, the harness must be replaced.

1. Disconnect both the negative and positive battery cables, then wait at least 3 minutes.
2. Remove the headlining.




3. Disconnect side curtain air bag module connector.

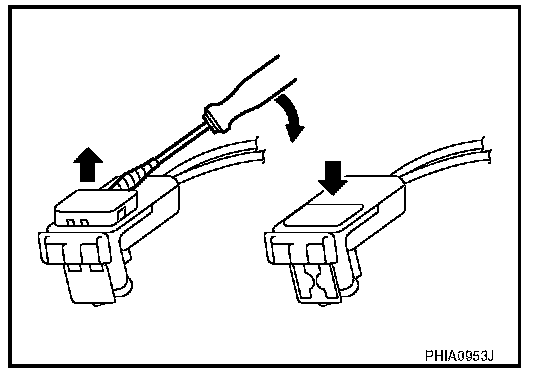

- For removal/installation of the direct-connect SRS connectors, refer to "Direct-connect SRS Component Connectors".

4. Remove the front tether clips.
5. Remove the side curtain air bag module bolts in order starting at the front or rear, then remove the side curtain air bag module.

INSTALLATION
Installation is in the reverse order of removal.
- For removal/installation of the direct-connect SRS connectors, refer to "Direct-connect SRS Component Connectors".
- After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is detected. Refer to SRS-20, "SRS Operation Check". [1][2]Component Tests and General Diagnostics
