Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Data Monitor Mode

Data Monitor Mode

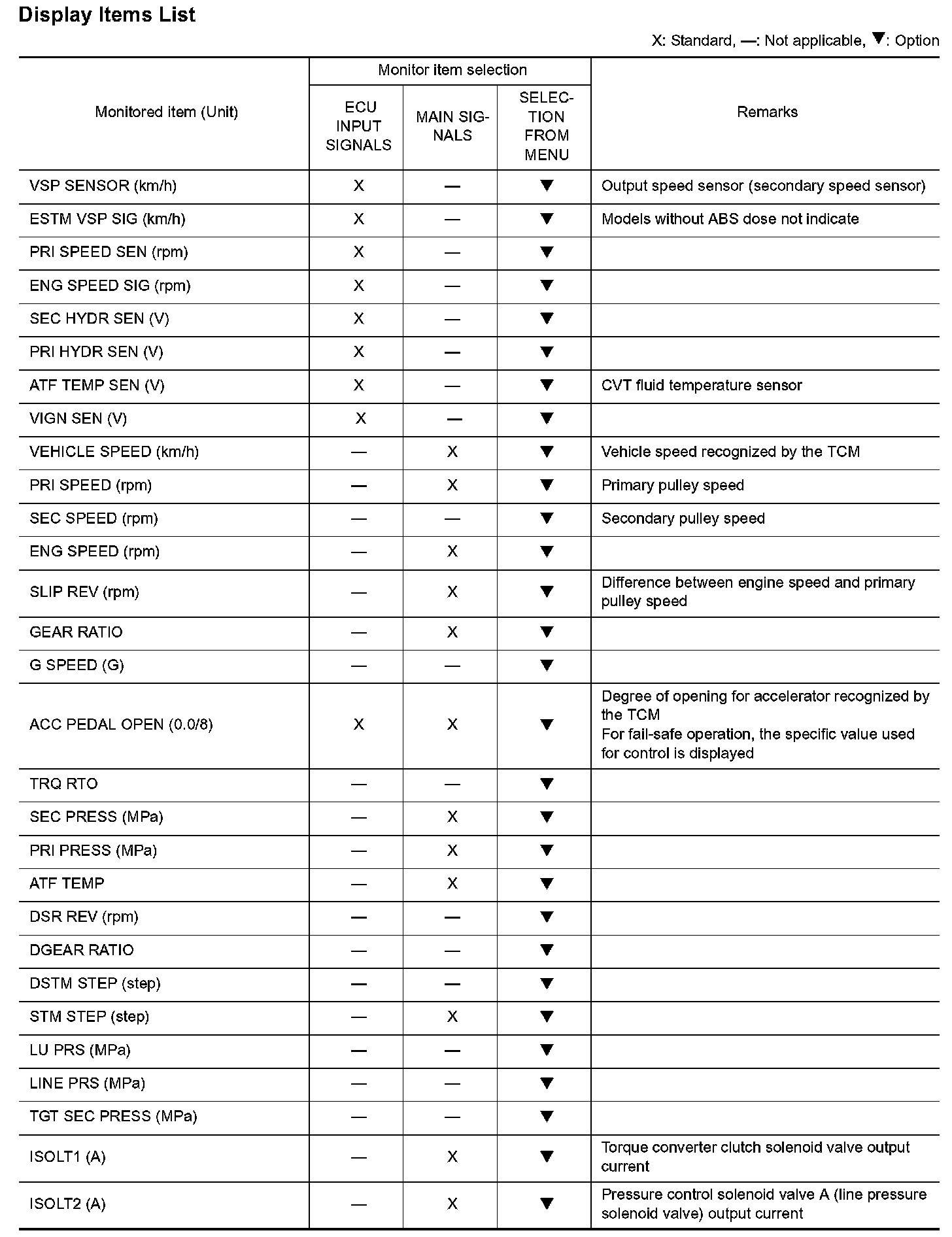

Display Items List (Part 1):

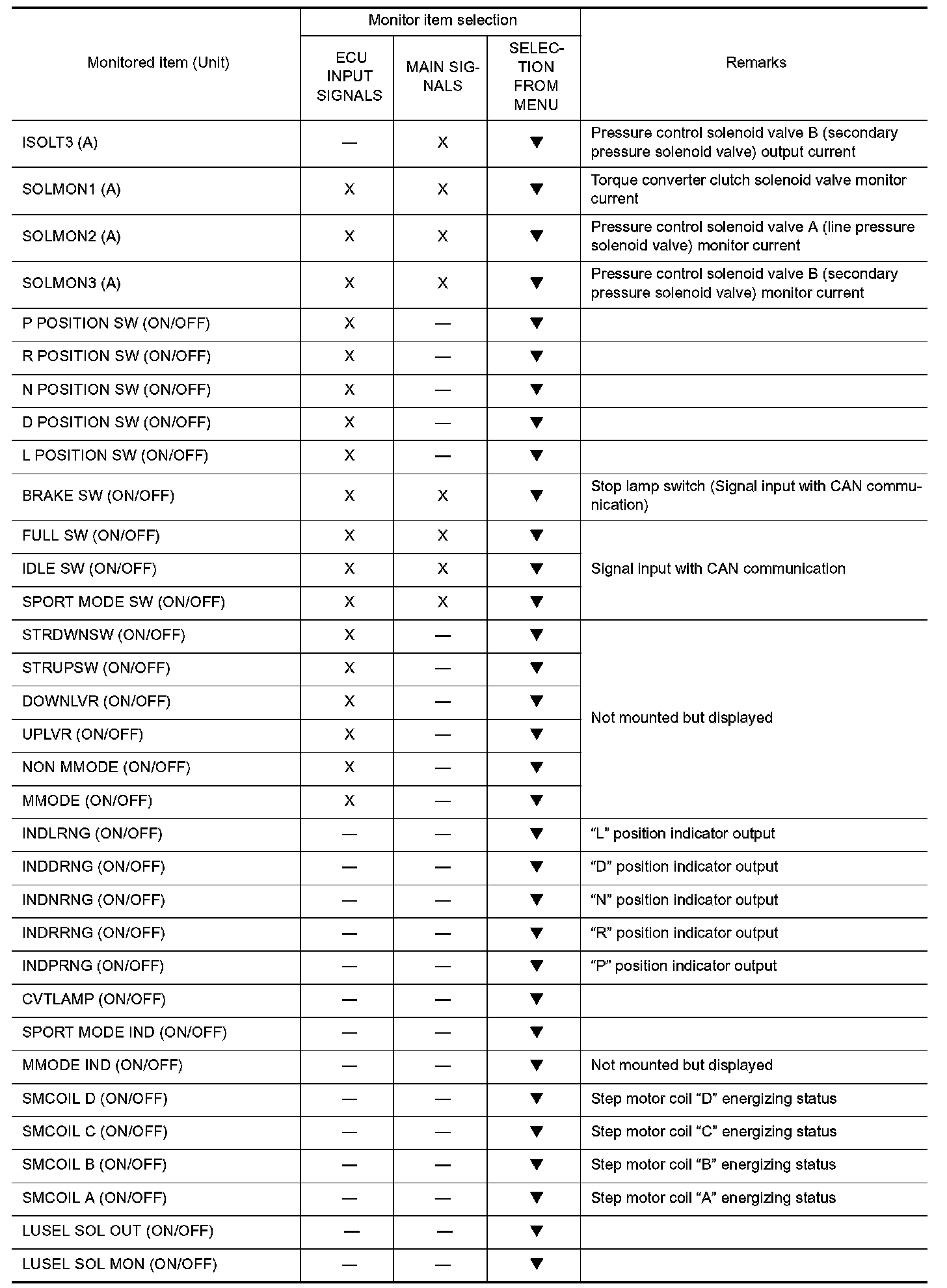

Display Items List (Part 2):

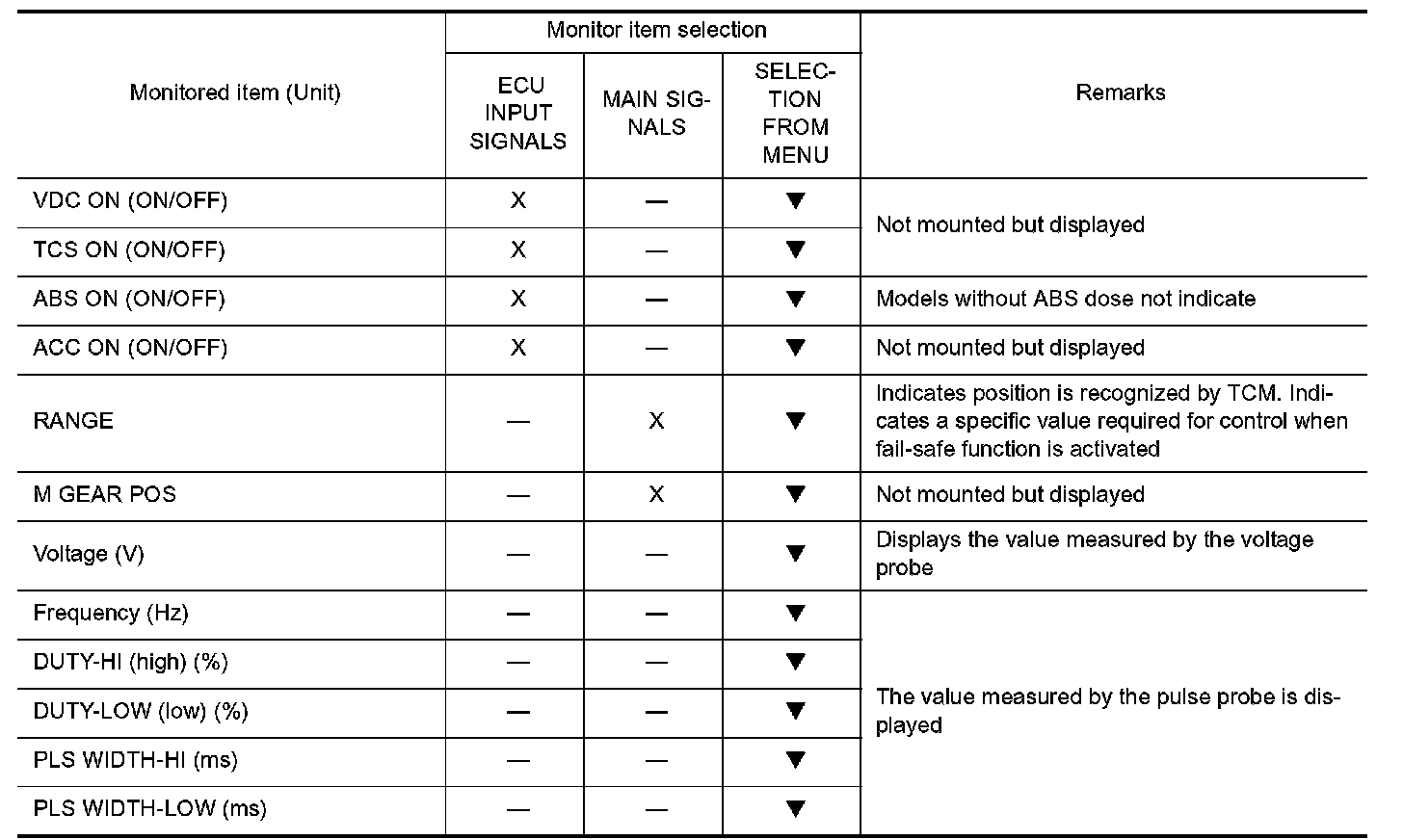

Display Items List (Part 3):
