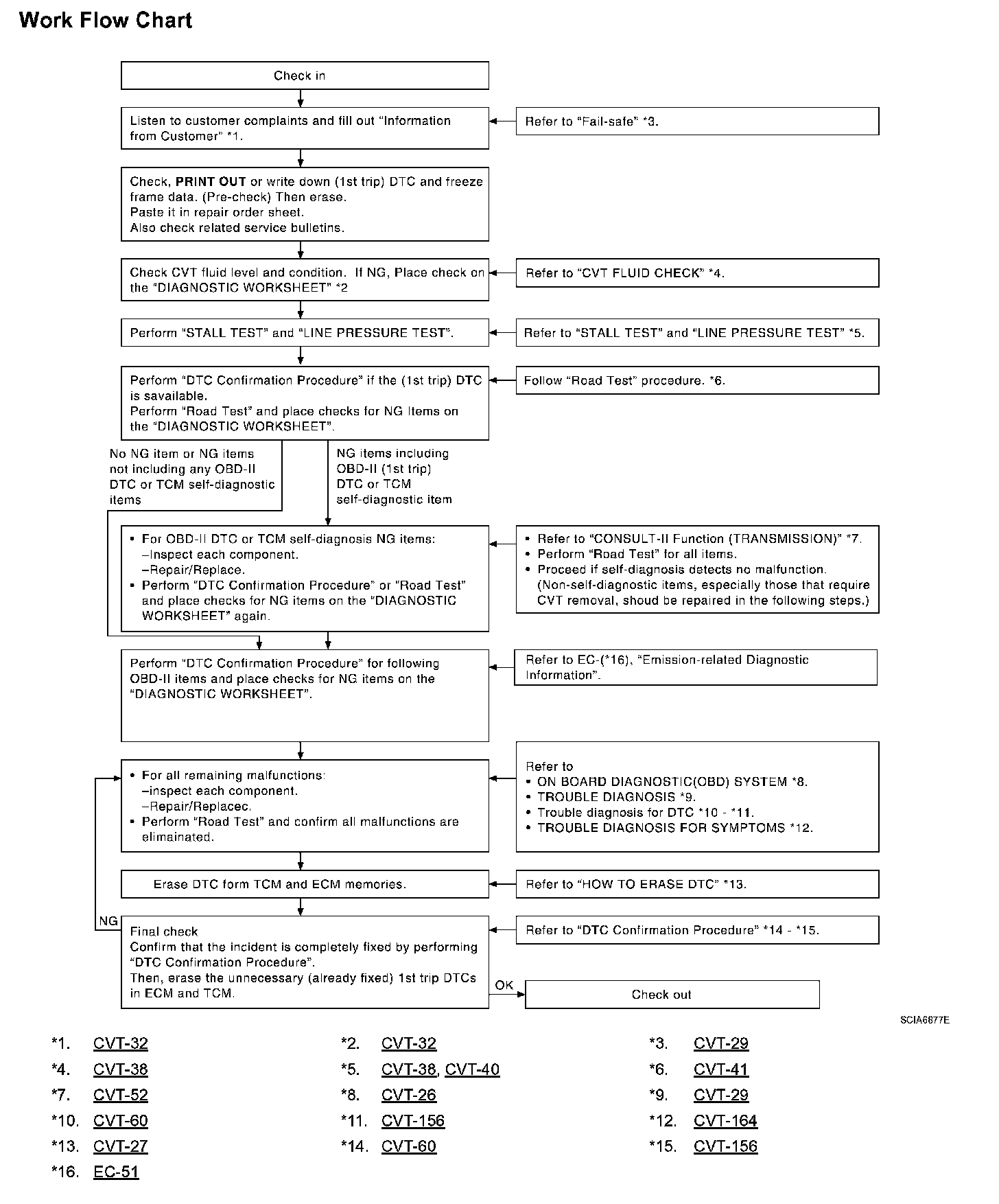

Work Flow
WORK FLOWA good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symptoms or conditions for a customer complaint.
Make good use of the two sheets provided, CVT-32, "Information From Customer" and CVT-32, "Diagnostic Worksheet Chart", to perform the best troubleshooting possible. Example of Diagnosis Sheet
