Shift Position Indicator Circuit
SHIFT POSITION INDICATOR CIRCUITDescription
TCM sends the switch signals to combination meter via CAN communication line. Then selector lever position is indicated on the shift position indicator.

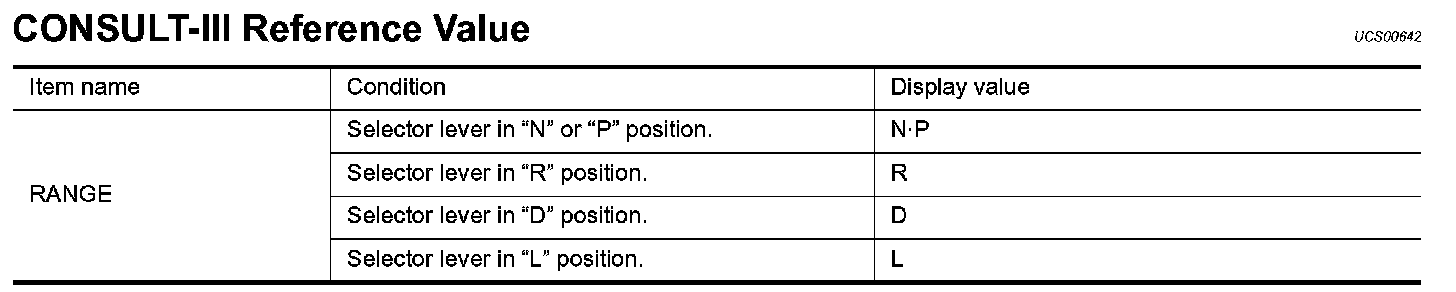

CONSULT-III Reference Value:
Diagnostic Procedure
1. CHECK INPUT SIGNALS ON With CONSULT-III
1. Start engine.
2. Select MAIN SIGNALS in DATA MONITOR mode for TRANSMISSION with CONSULT-III and read out the value of RANGE.
3. Check that the following three positions or indicators are same.
- Actual position of the selector lever
- RANGE on CONSULT-III screen
- Shift position indicator in the combination meter
OK or NG
OK >> INSPECTION END

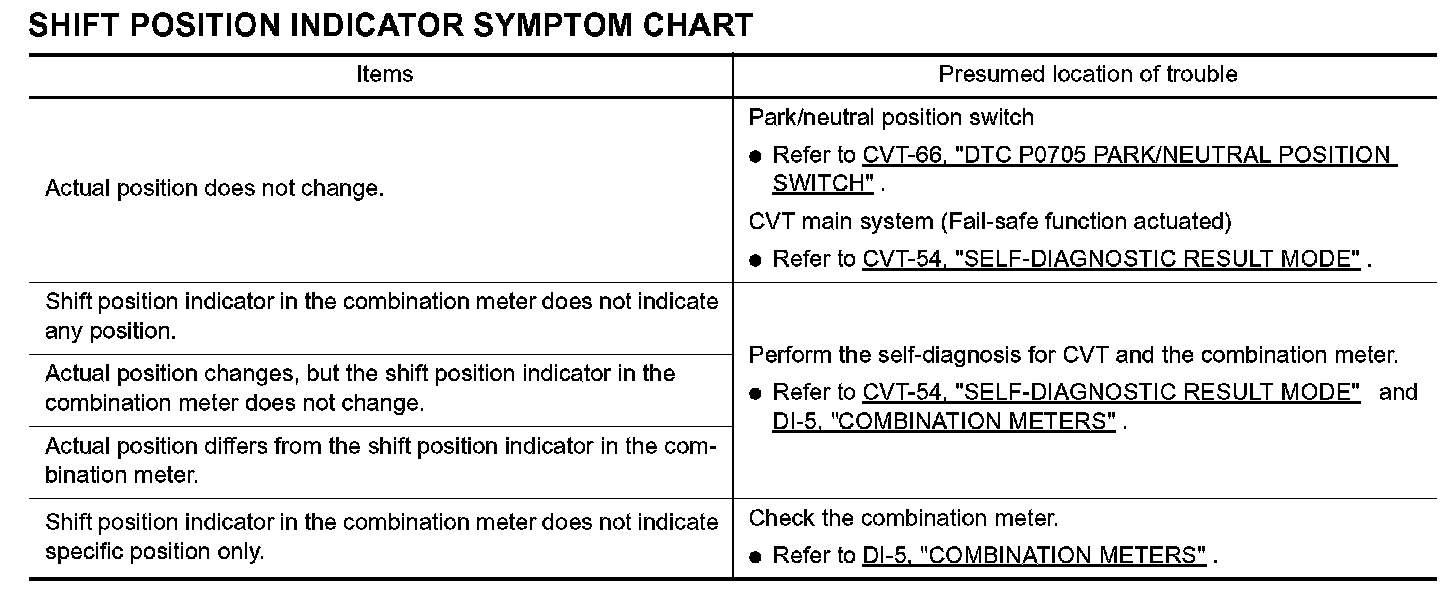

NG >> Check the following.
