Transmission Position Sensor/Switch: Adjustments

Adjustment of PNP switch
1. Move selector lever to N position.
2. Remove control cable from manual lever.

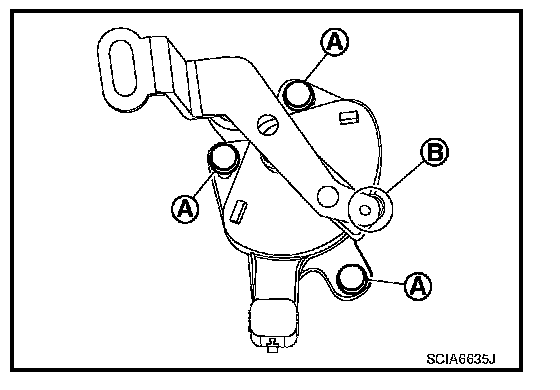

3. Loosen PNP switch bolts (A). Insert a pin ([diameter]4 mm) into the adjusting holes (B) on both PNP switch and manual lever for adjusting the position.
4. Tighten PNP switch bolts (A).
PNP switch bolts: 5.9 Nm (0.60 kg-m, 52 in-lb)
5. Connect control cable on manual lever (B).
