Component Tests

Component Inspection

FUEL PUMP
1. Disconnect "fuel level sensor unit and fuel pump" harness connector.

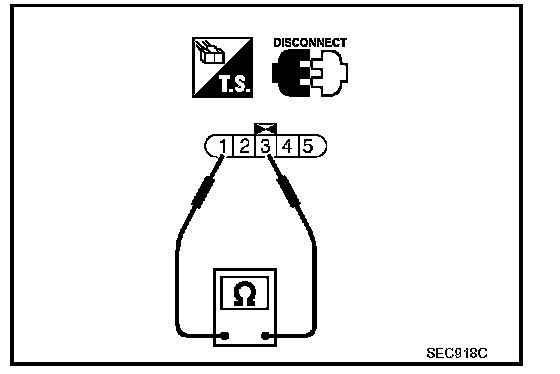

2. Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.

Resistance: Approximately 0.2 - 5.0 ohms [at 25 °C (77 °F)]

3. If NG, replace "fuel level sensor unit and fuel pump".
