Component Tests
Component InspectionFUEL INJECTOR
1. Disconnect fuel injector harness connector.

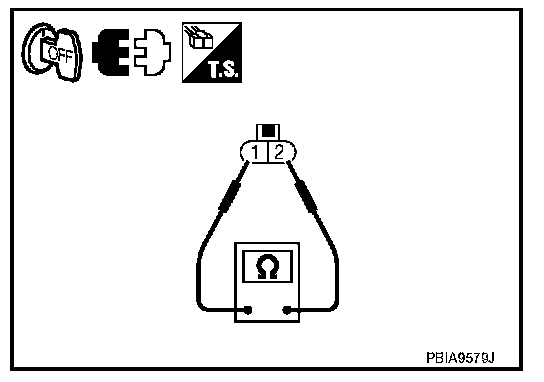

2. Check resistance between terminals as shown in the figure.
Resistance: 11.1 - 14.5 ohms [at 10 - 60 °C (50 - 140 °F)]
3. If NG, replace fuel injector.
