Canister Vent Valve: Service and Repair

EVAP CANISTER VENT CONTROL VALVE

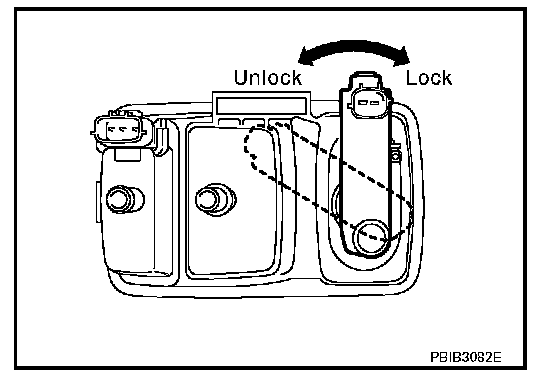

1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.

Always replace O-ring with a new one.
