Diag on CAN

Diag on CAN

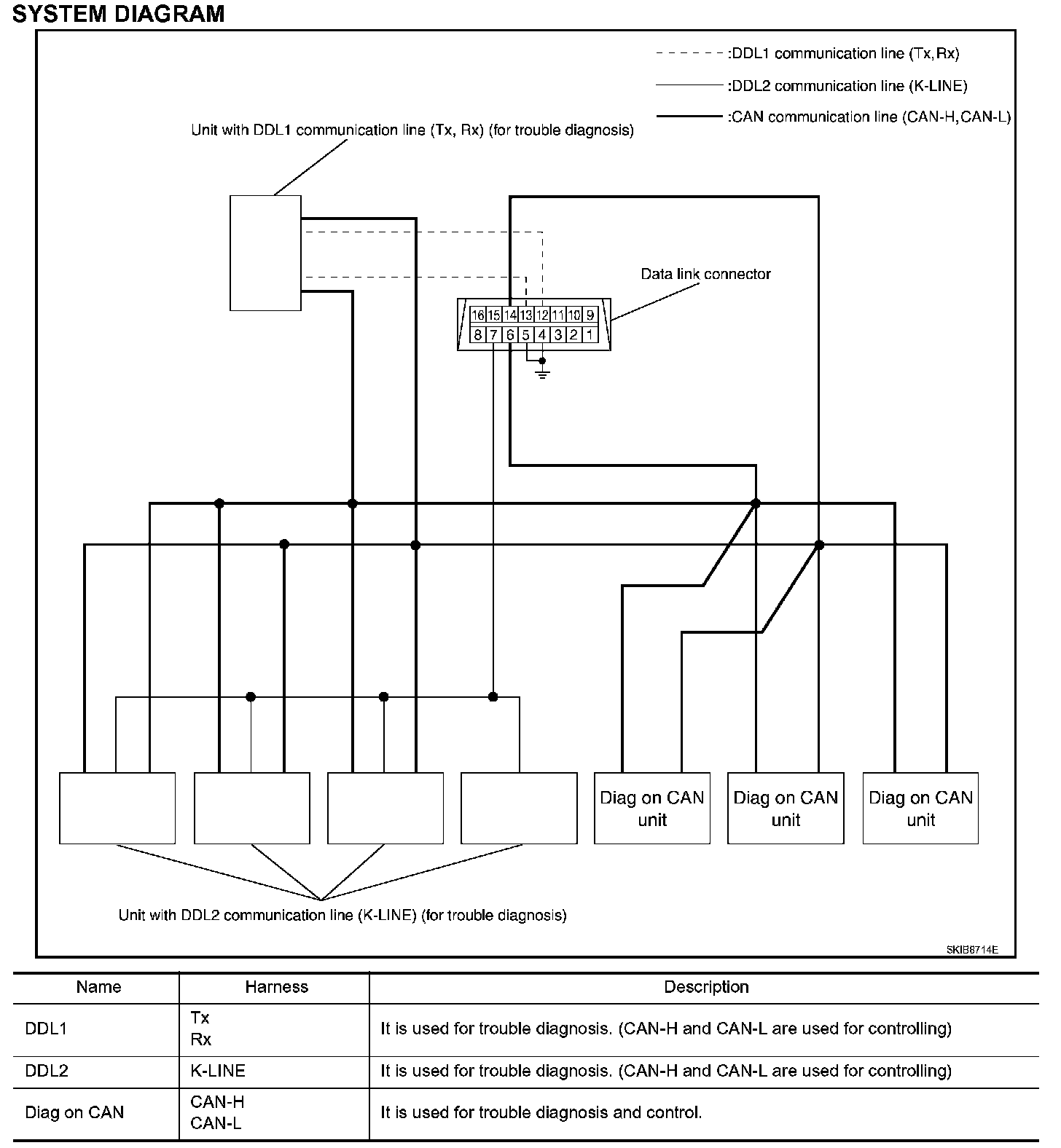

Diag On CAN System Diagram:





DESCRIPTION
"Diag on CAN" is a diagnosis using CAN communication instead of previous DDL1 and DDL2 communication lines, between control units and diagnosis unit.
