CAN Communication Signal Chart

CAN Communication Signal Chart
Refer to LAN-14, "How to Use CAN Communication Signal Chart" for how to use CAN communication signal chart. Trouble Diagnosis

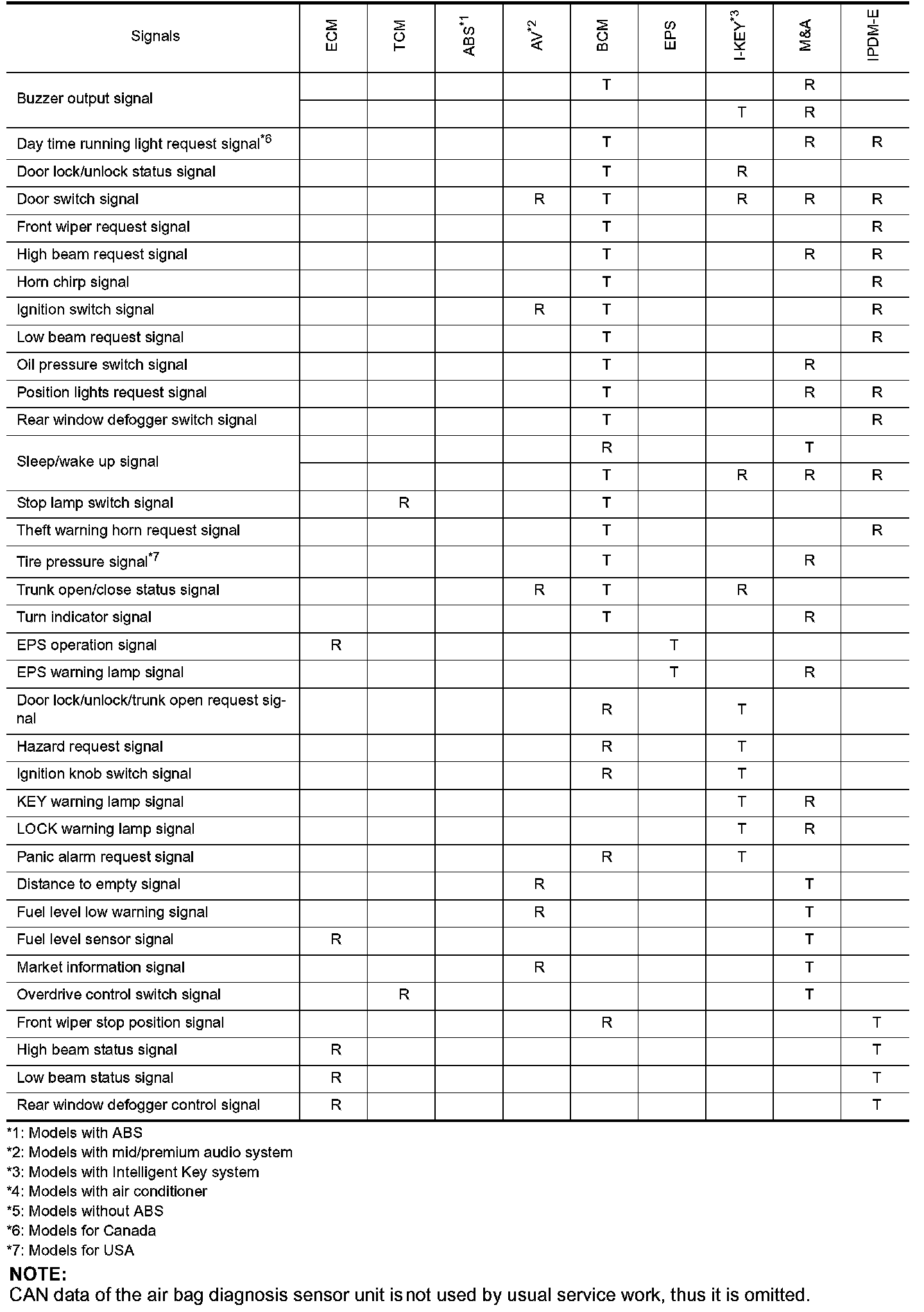

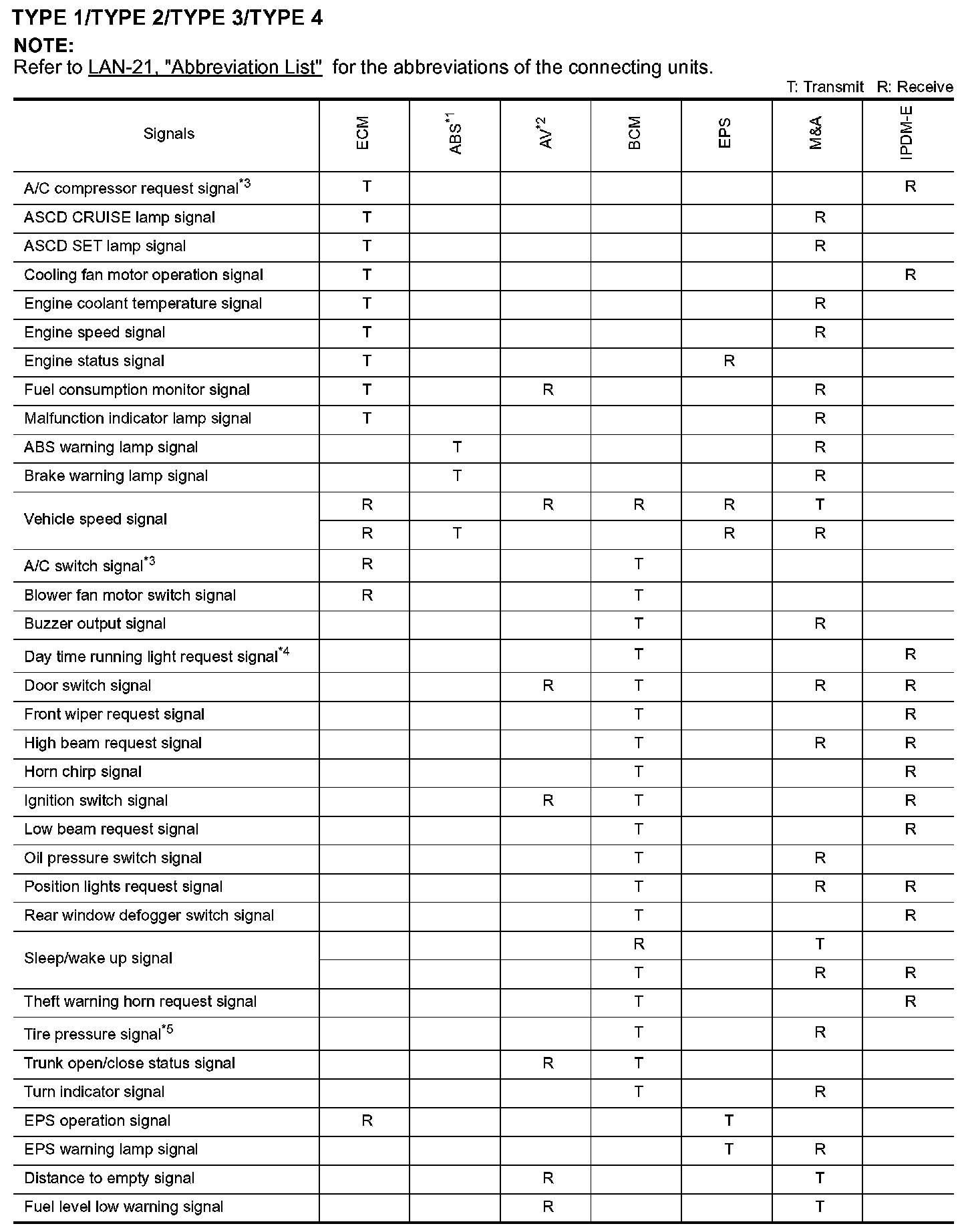

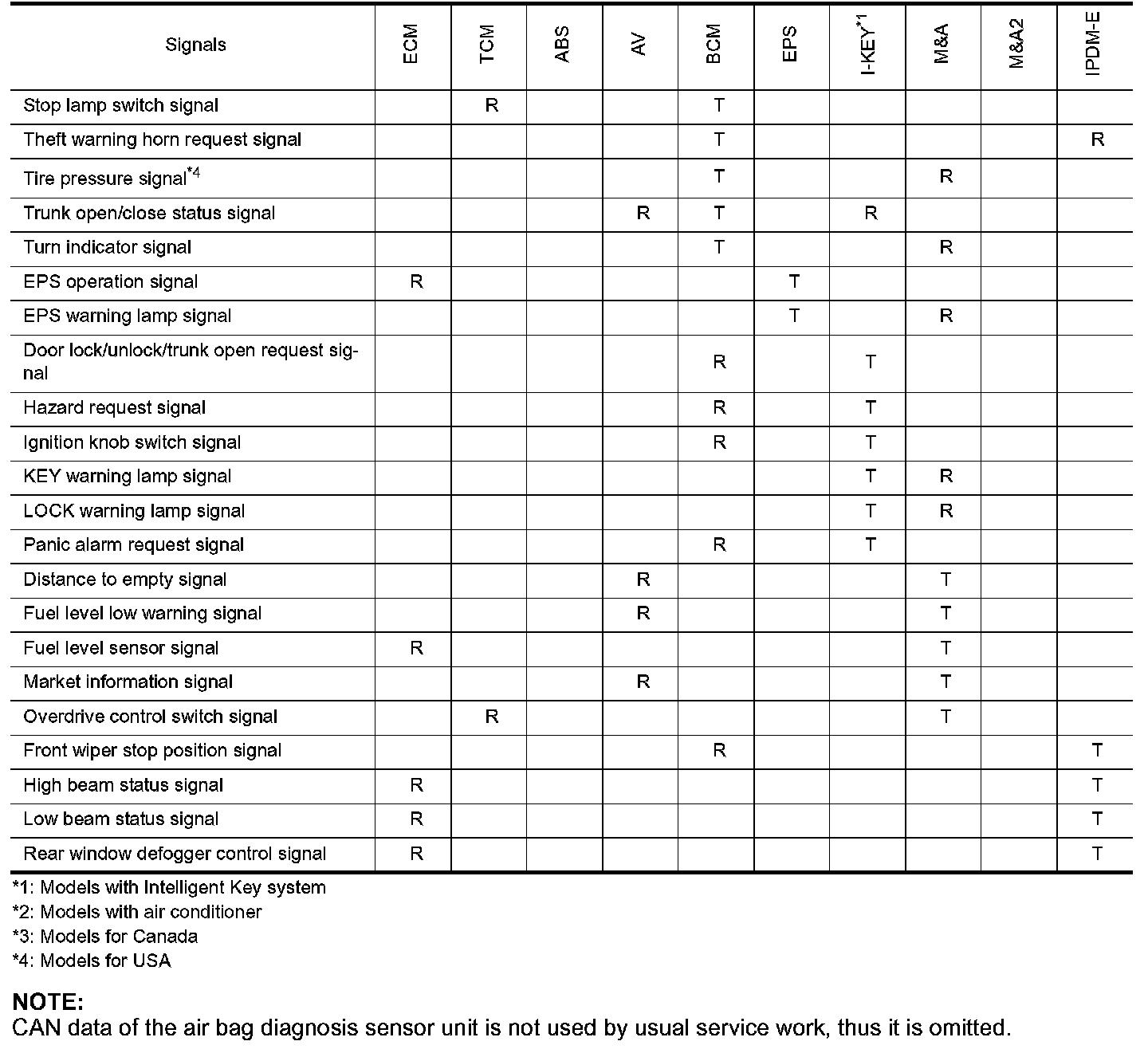

TYPE 1/TYPE 2/TYPE 3/TYPE 4

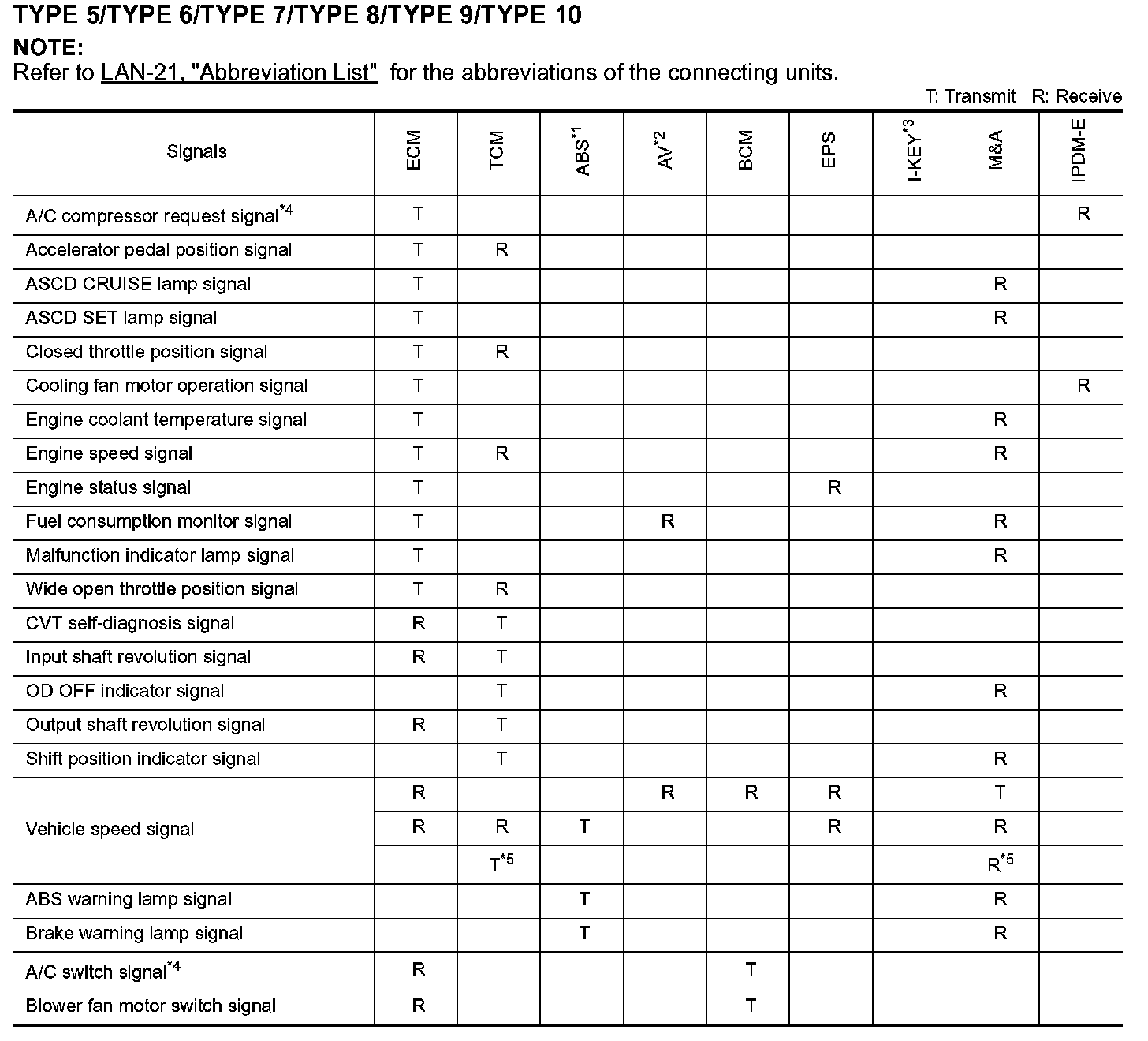

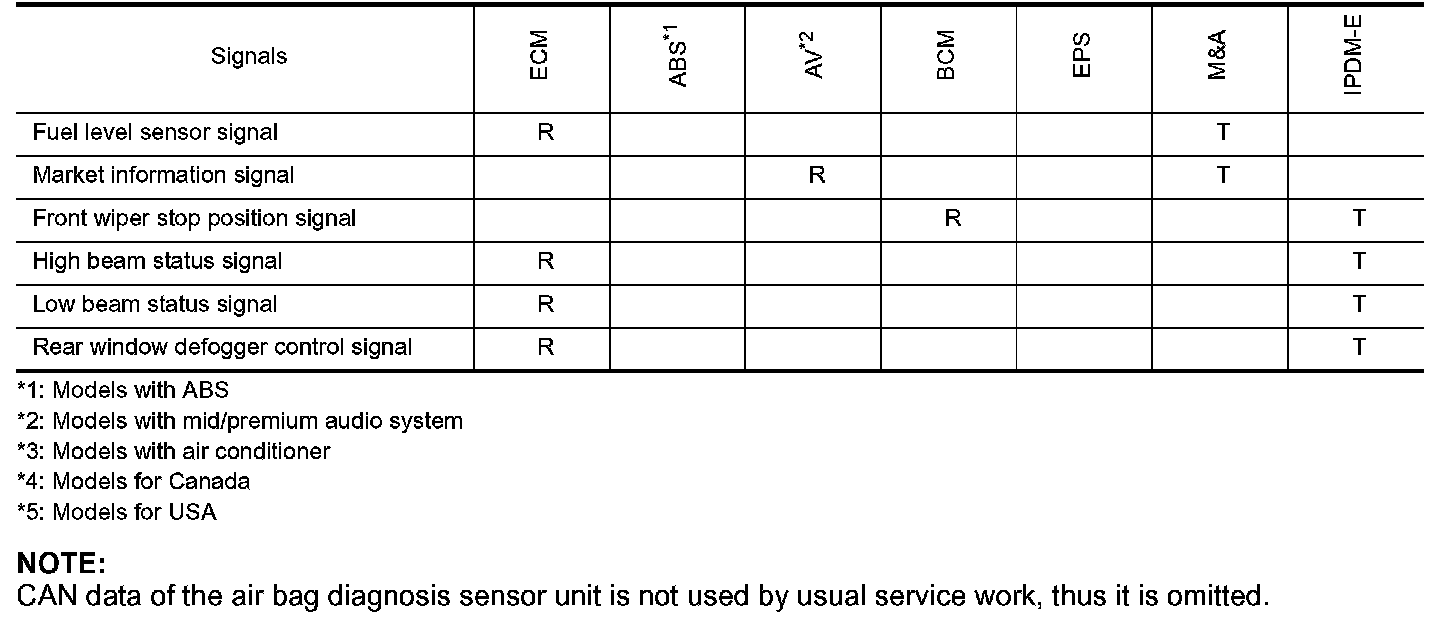

TYPE 5/TYPE 6/TYPE 7/TYPE 8/TYPE 9/TYPE 10

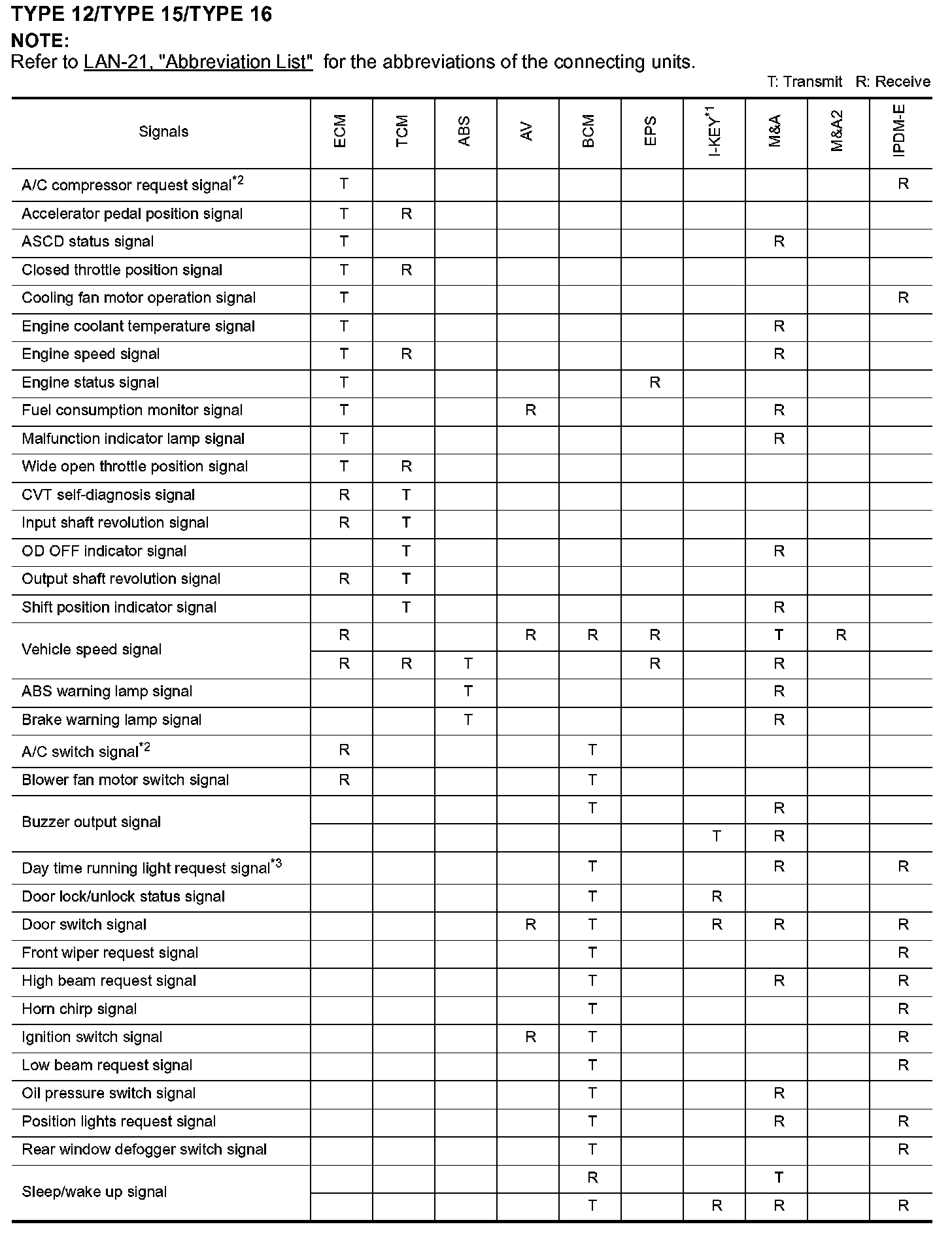

TYPE 12/TYPE 15/TYPE 16
