Reading and Clearing Diagnostic Trouble Codes

FUNCTION
When the tire pressure monitoring system detects low inflation pressure or an internal malfunction, the low tire pressure warning lamp in the combination meter comes on. The malfunction location is indicated by the low tire pressure warning lamp flashing and the buzzer sounding.

CONSULT-III Application to Tire Pressure Monitoring System





�: Applicable
-: Not applicable

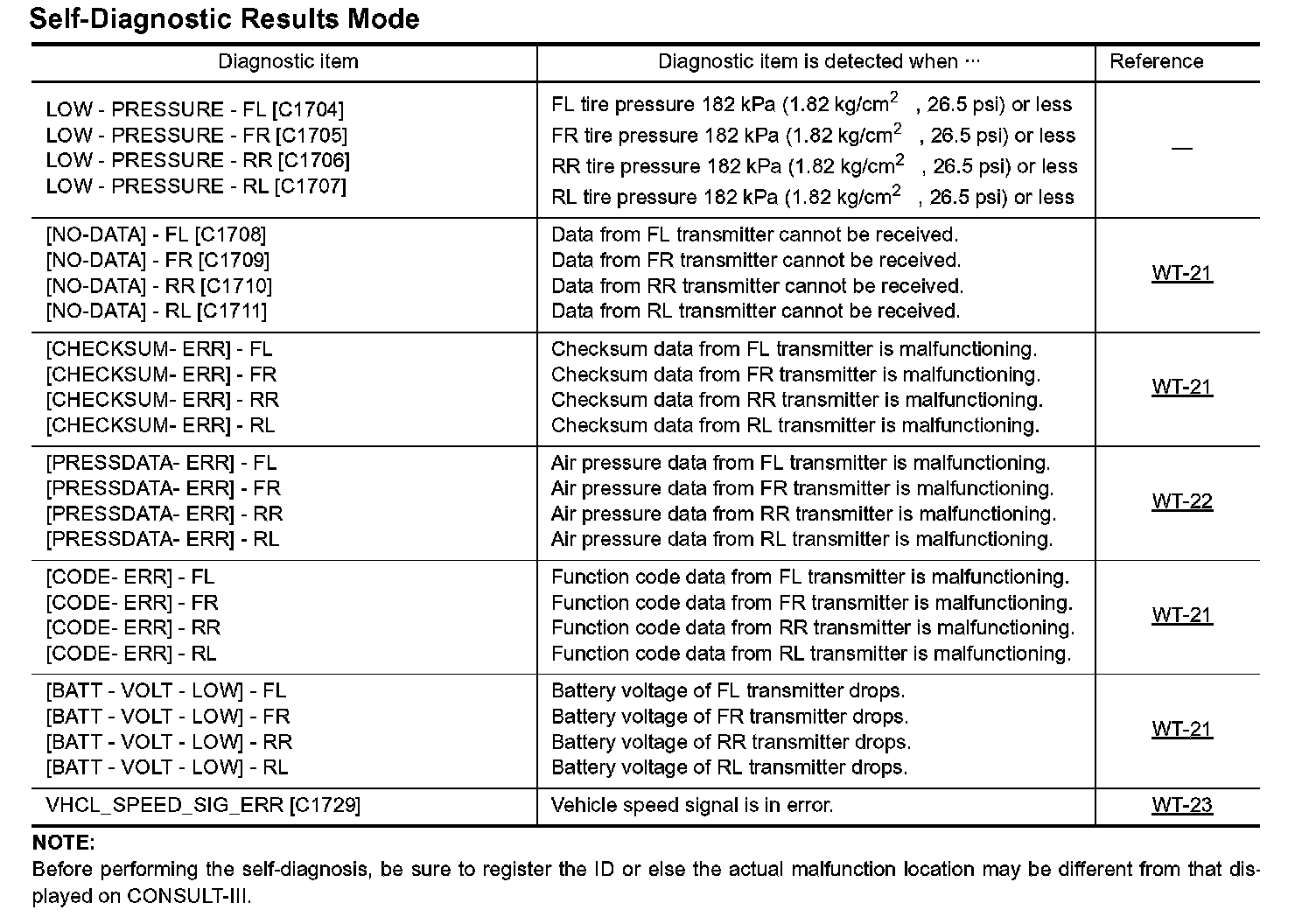

Self-Diagnostic Results Mode
