Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates

Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates

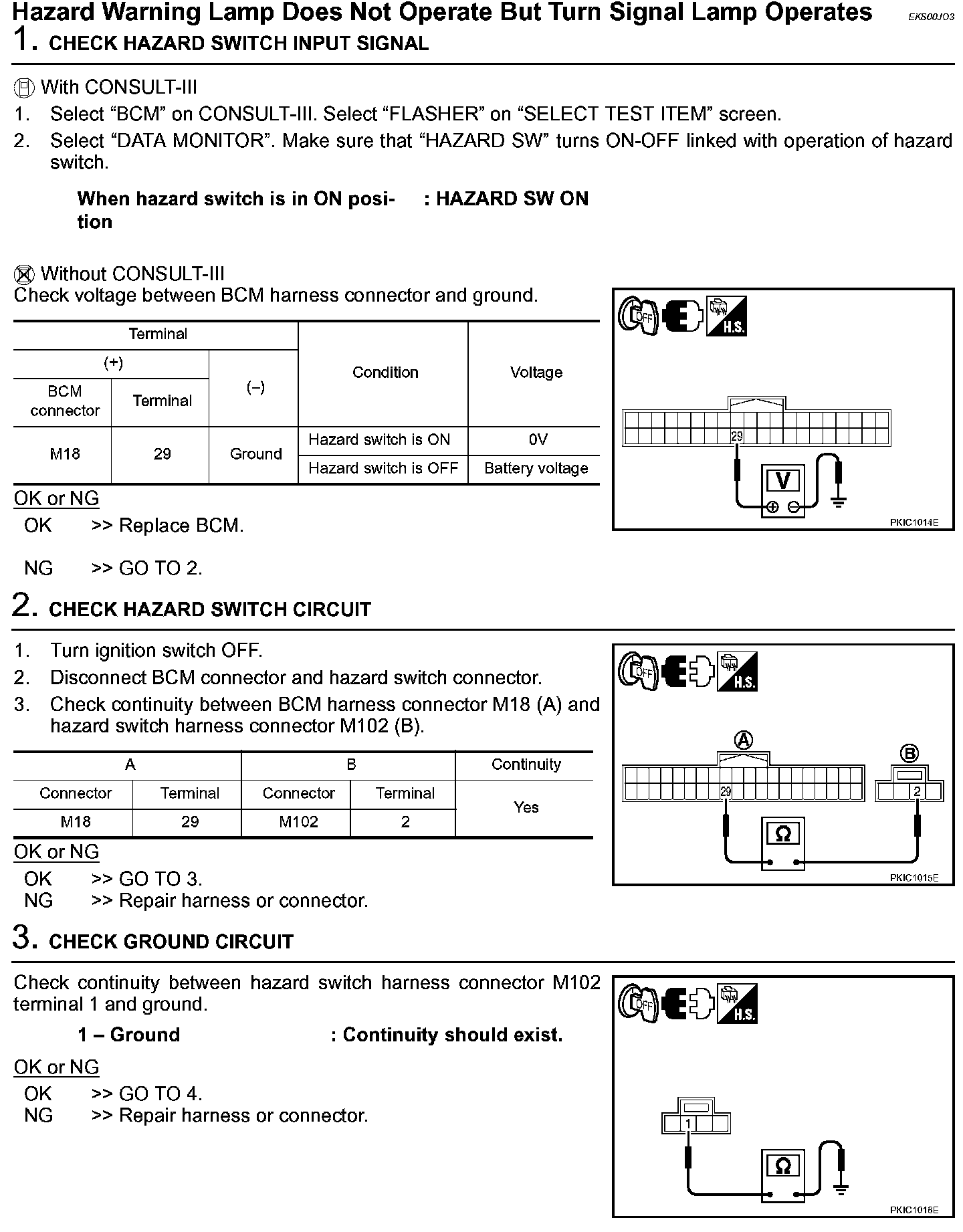

Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates (Steps 1 - 3):

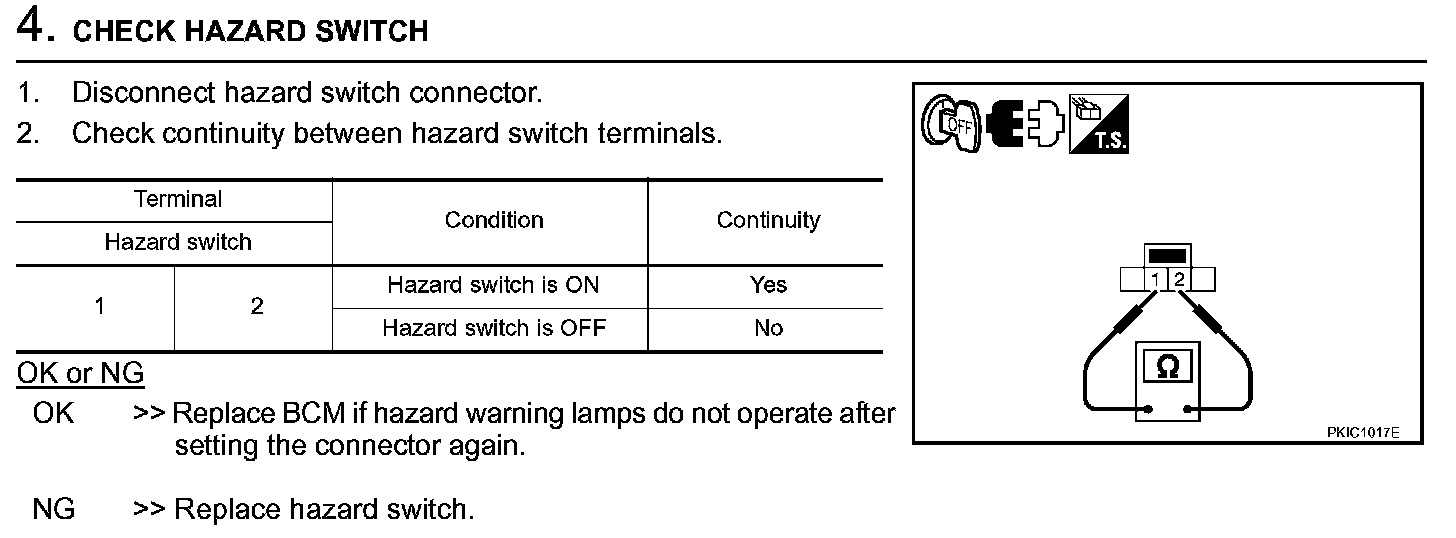

Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates (Step 4):
