Front Parking Lamps Do Not Illuminate (License Plate and Tail Lamps Operate Normally)

Front Parking Lamps Do Not Illuminate (License Plate And Tail Lamps Operate Normally) (Step 1):

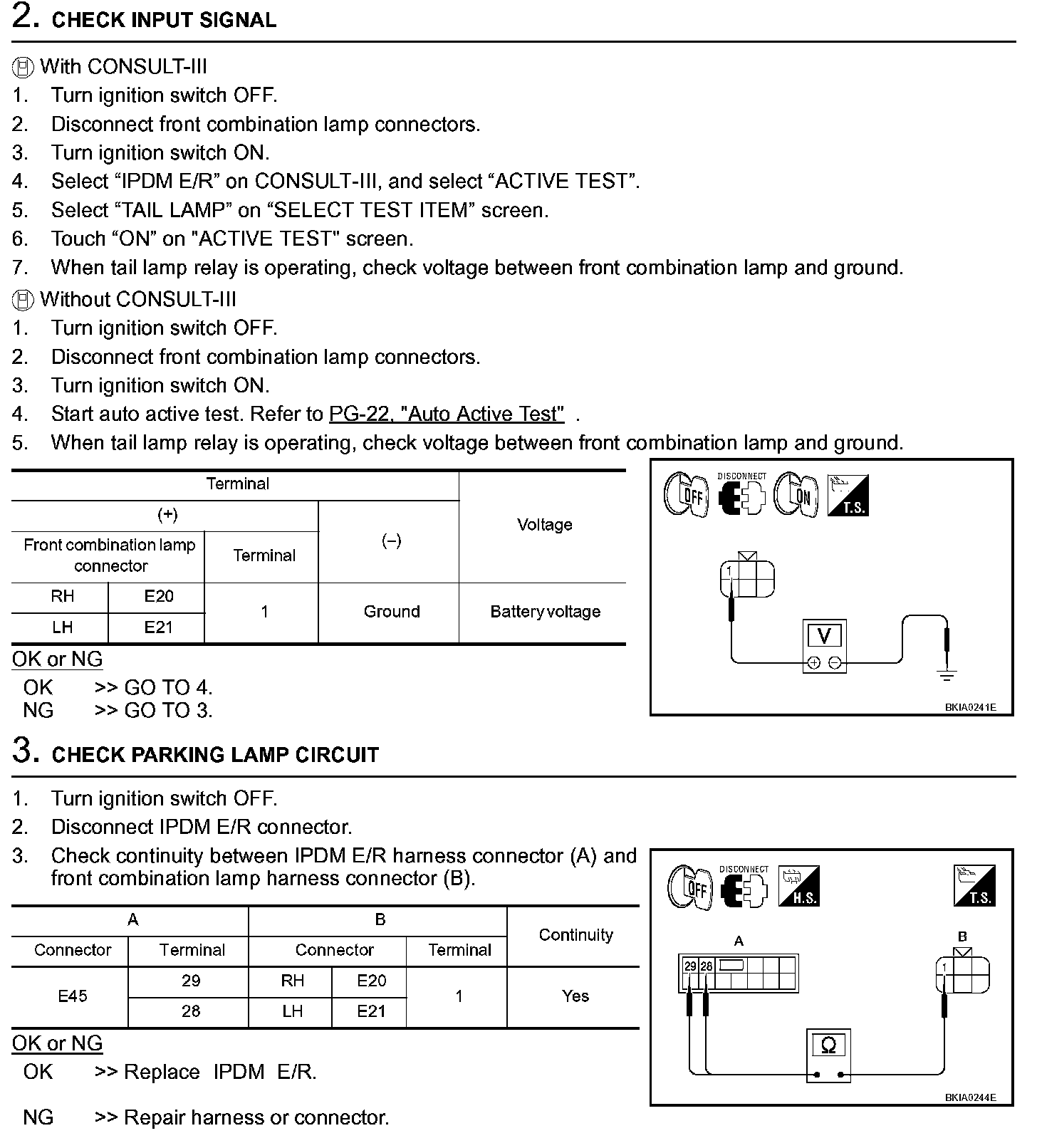

Front Parking Lamps Do Not Illuminate (License Plate And Tail Lamps Operate Normally) (Steps 2 - 3):

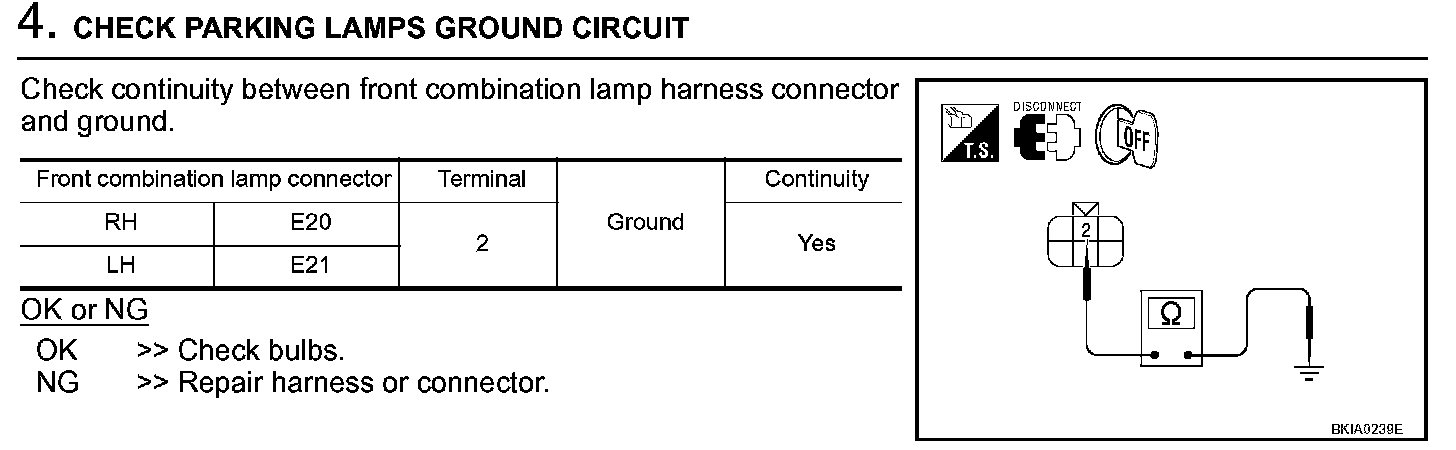

Front Parking Lamps Do Not Illuminate (License Plate And Tail Lamps Operate Normally) (Step 4):
