Removal and Installation

REAR COMBINATION LAMP

Removal and Installation

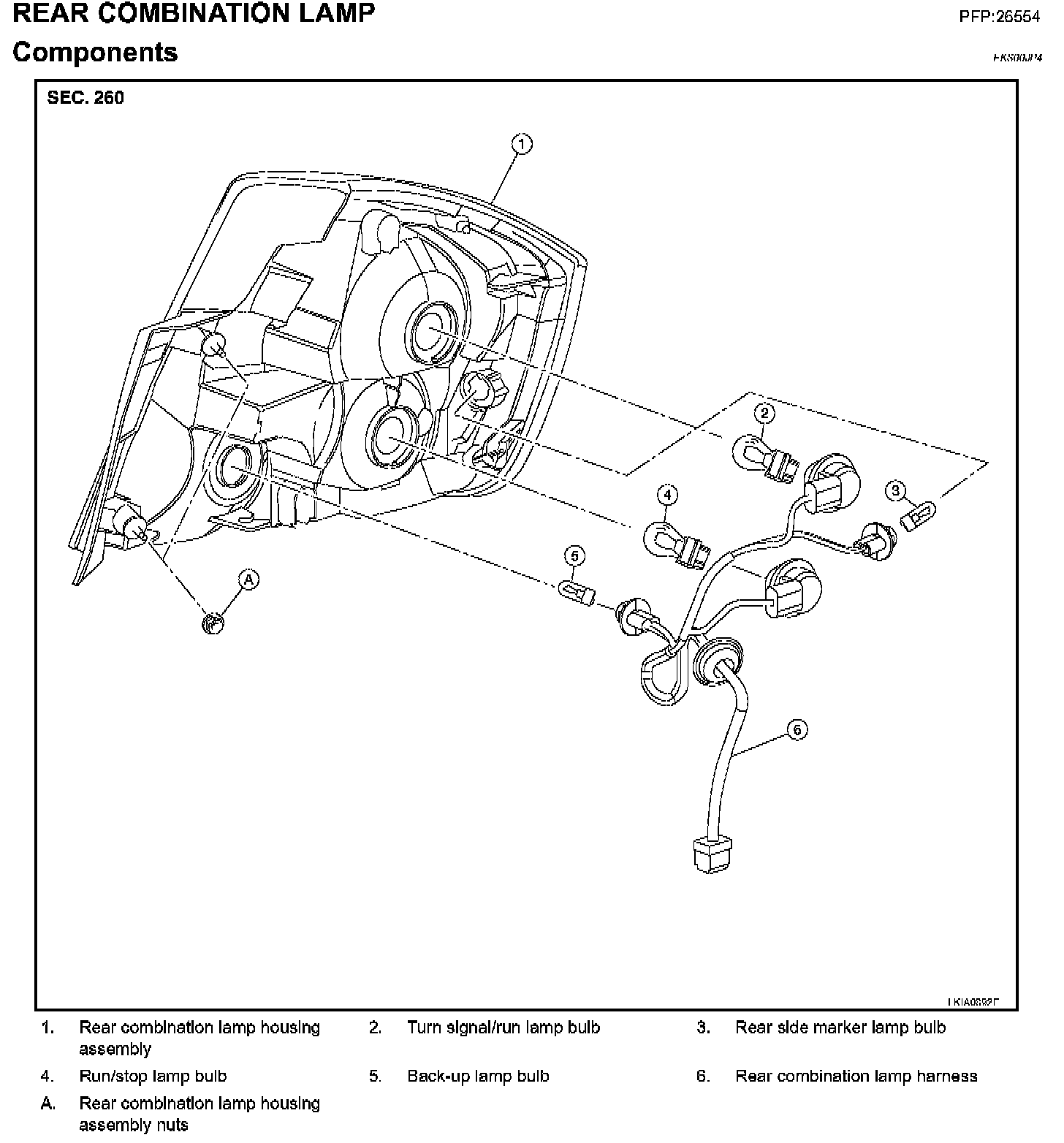

Components:

REMOVAL
1. Remove the luggage compartment side finisher.
2. Detach the harness clips and remove rear combination lamp housing assembly nuts.
3. Pull the rear combination lamp toward the rear of the vehicle.
4. Disconnect rear combination lamp connector, and remove rear combination lamp.

INSTALLATION
Installation is in the reverse order of removal.
