Headlamp (For USA)
>>
Headlamp High Beam Does Not Illuminate (One Side)
Headlamp High Beam Does Not Illuminate (One Side)

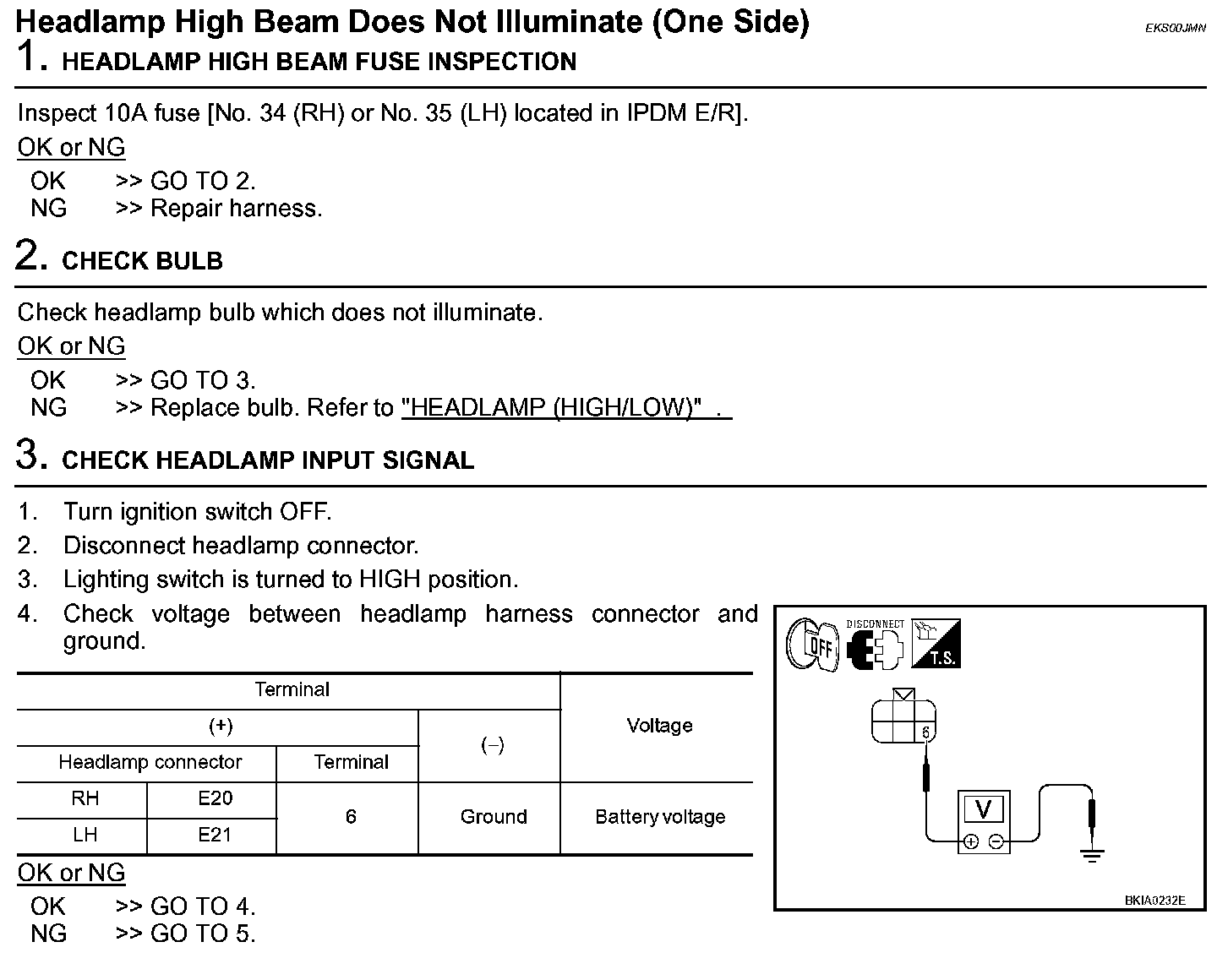

Headlamp High Beam Does Not Illuminate (One Side) (Steps 1 - 3):
Headlamp High Beam Does Not Illuminate (One Side) (Steps 4 - 5):
