Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamp (For CANADA) - Daytime Light System

Headlamp (For CANADA) - Daytime Light System

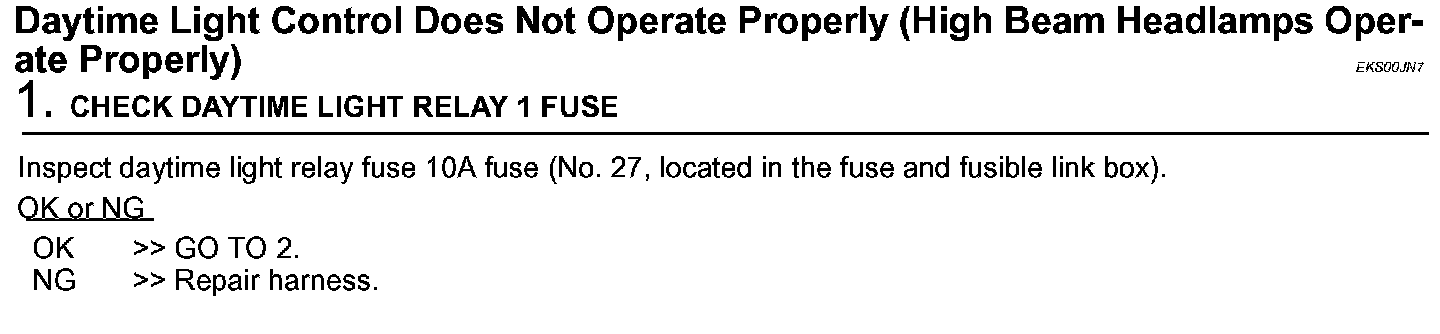

Daytime Light Control Does Not Operate Properly (High Beam Headlamps Operate Properly) (Step 1):

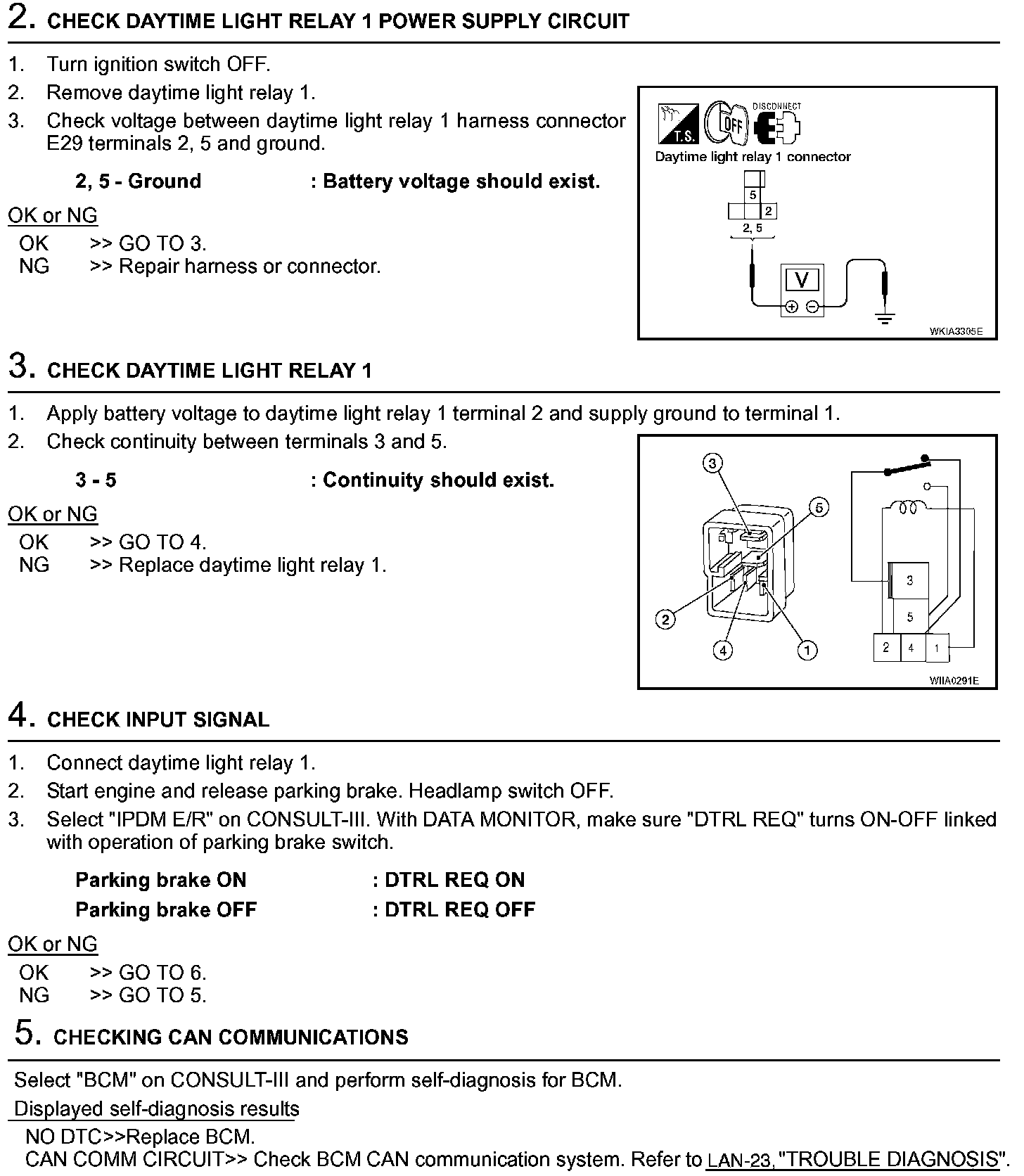

Daytime Light Control Does Not Operate Properly (High Beam Headlamps Operate Properly) (Steps 2 - 5):

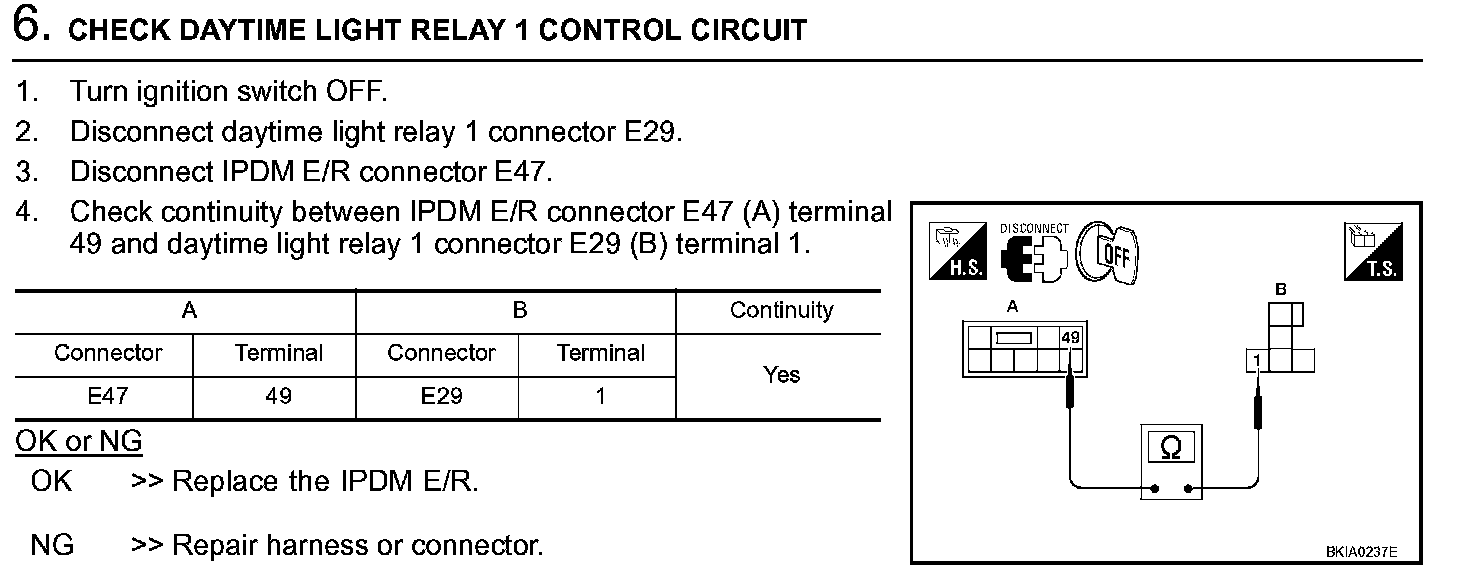

Daytime Light Control Does Not Operate Properly (High Beam Headlamps Operate Properly) (Step 6):
