Front Fog Lamps Do Not Illuminate (Both Sides)

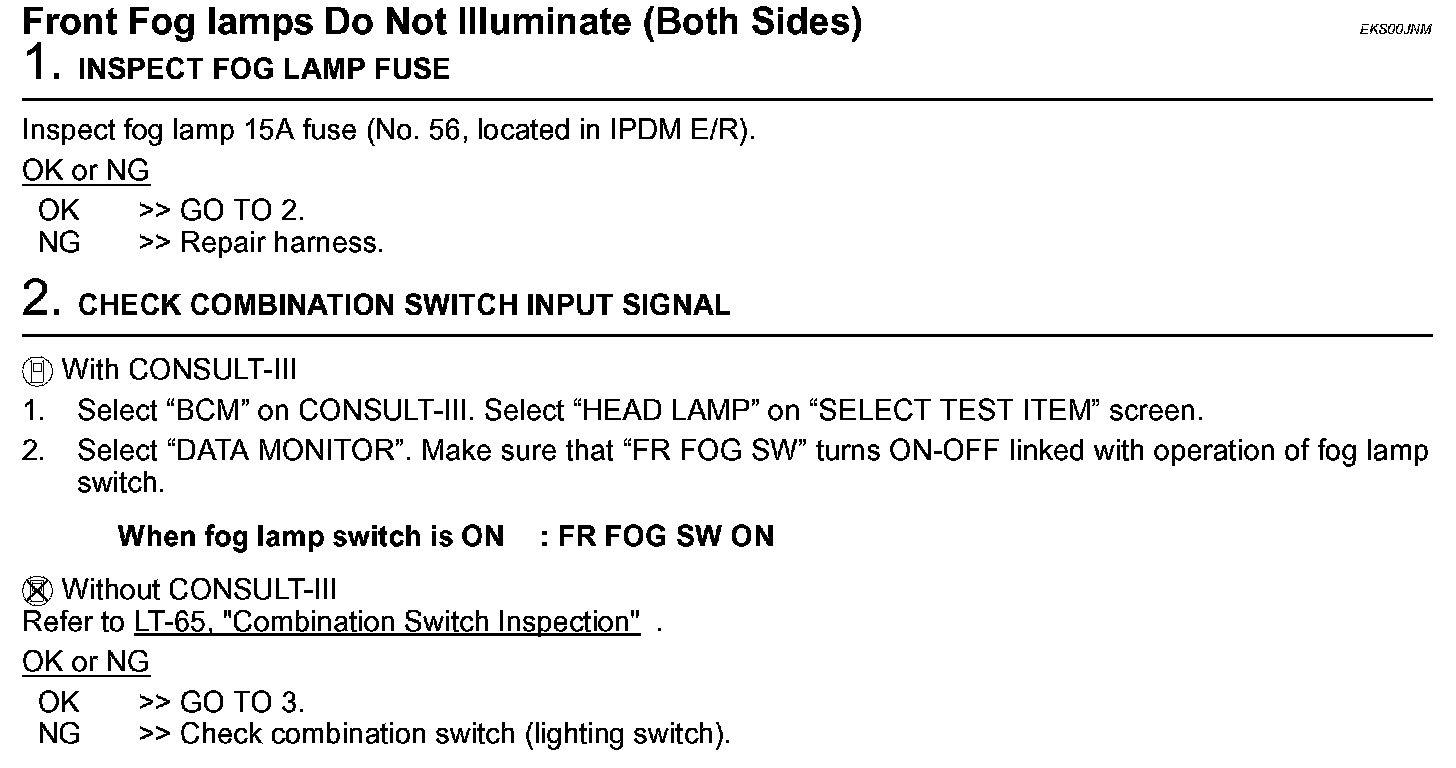

Front Fog Lamps Do Not Illuminate (Both Sides) (Steps 1 - 2):

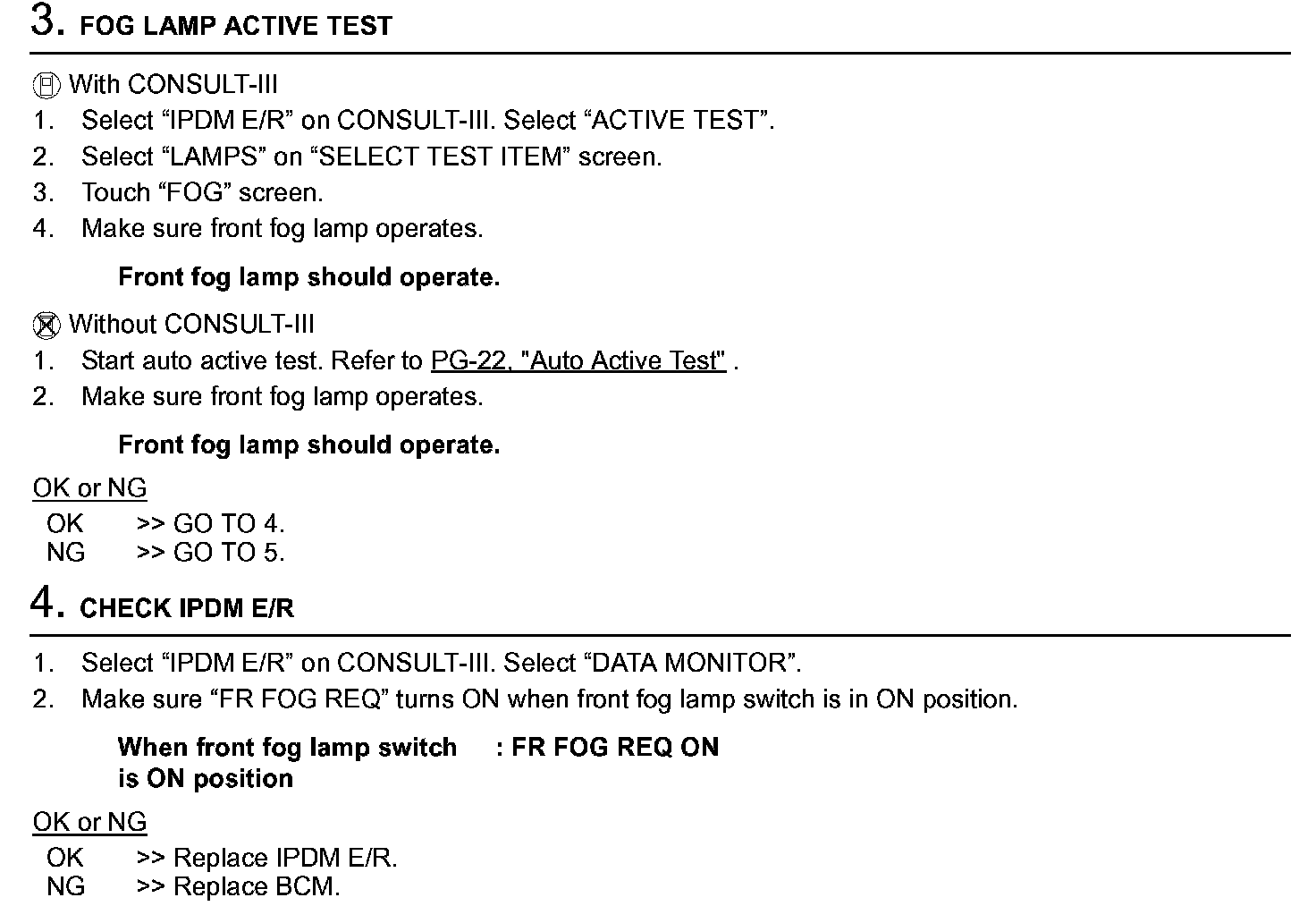

Front Fog Lamps Do Not Illuminate (Both Sides) (Steps 3 - 4):

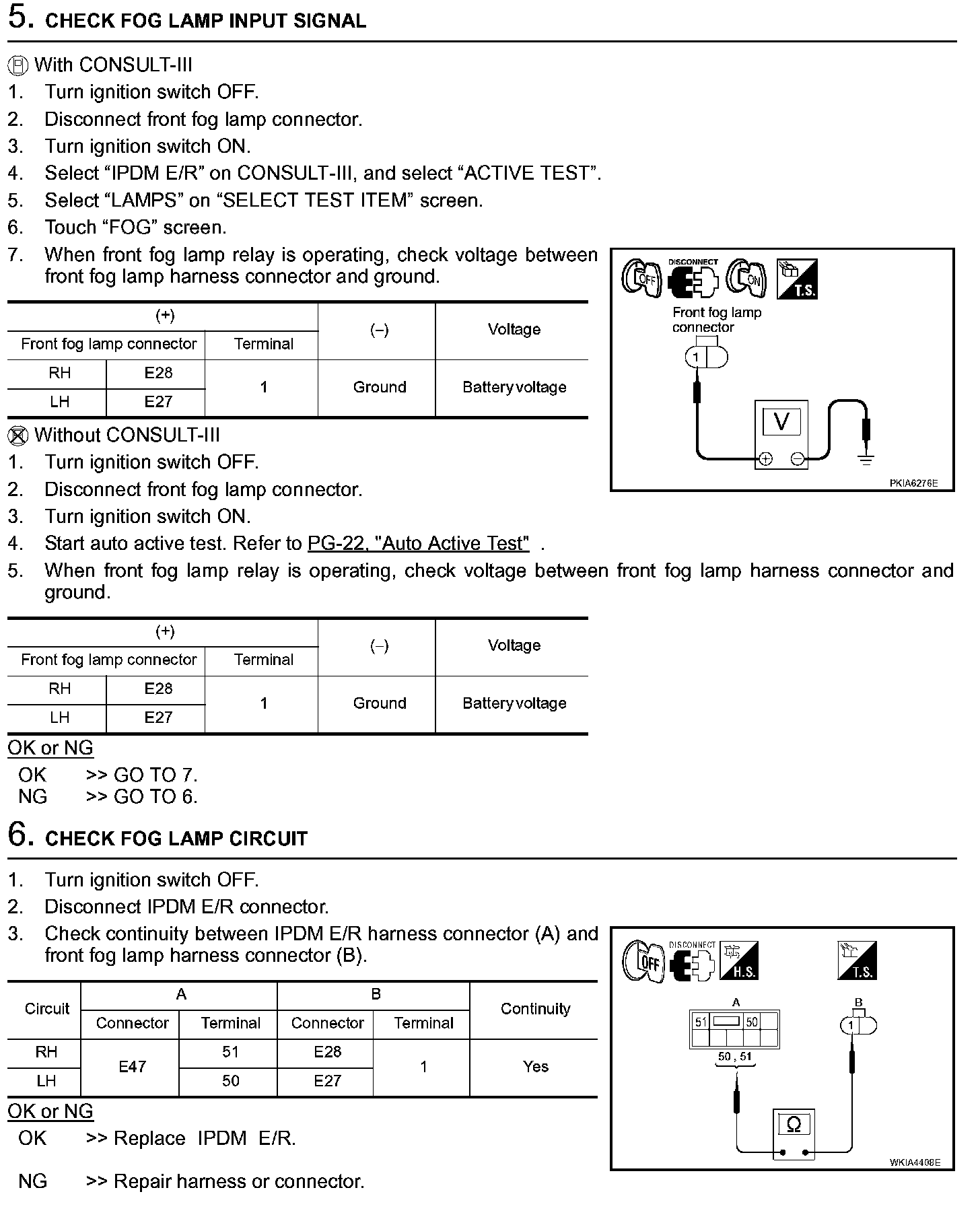

Front Fog Lamps Do Not Illuminate (Both Sides) (Steps 5 - 6):

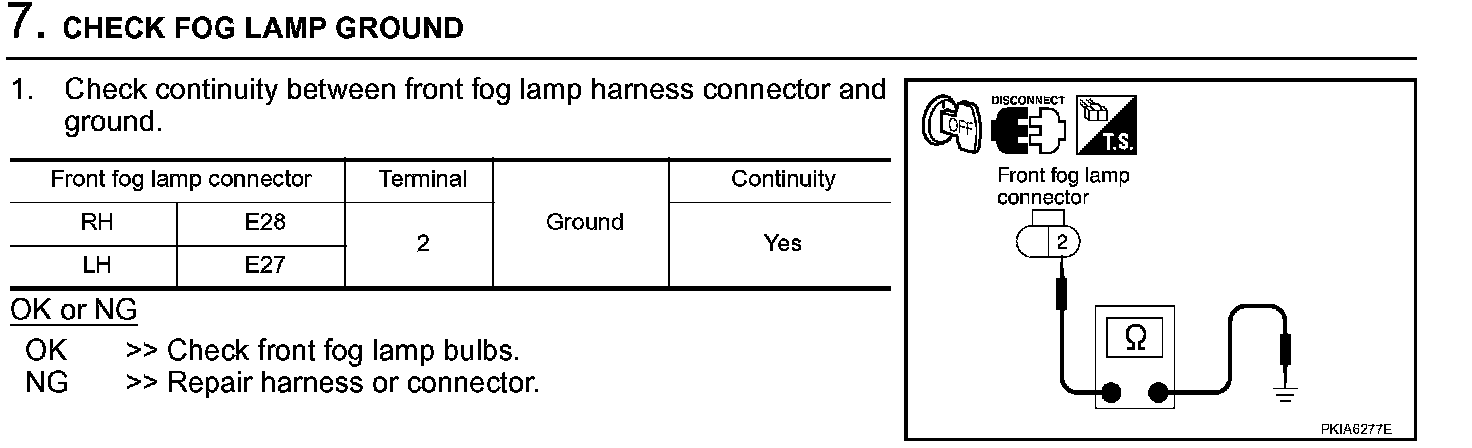

Front Fog Lamps Do Not Illuminate (Both Sides) (Step 7):
