Fog/Driving Lamp: Service and Repair

FRONT FOG LAMP

Removal and Installation, All Except SE-R

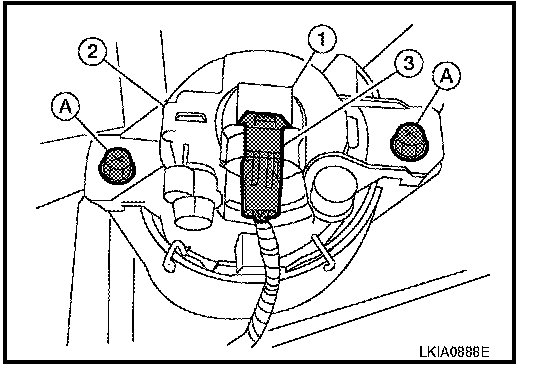

REMOVAL
1. Remove the fender protector.




2. Disconnect the front fog lamp connector (3) from the fog lamp bulb (1).
3. Remove the front fog lamp screws (A) and remove the front fog lamp (2).
- As necessary, remove the two staples attaching the base of the fog lamp (2) and discard the staples.

INSTALLATION
Installation is in the reverse order of removal.

Removal and Installation, SE-R

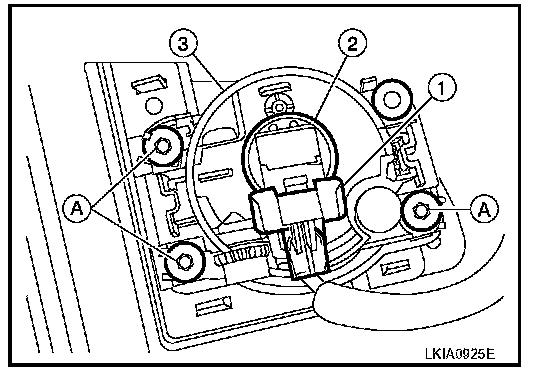

REMOVAL




1. Disconnect the front fog lamp connector (1) from the fog lamp bulb (2).
2. Remove the front fog lamp screws (A) and remove the front fog lamp (3).

INSTALLATION
Installation is in the reverse order of removal.
