Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LAMP

Bulb Replacement
1. Turn lighting switch OFF.
2. Position back the front fender protector.

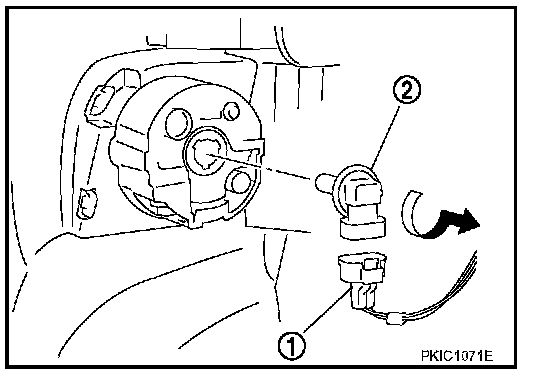

3. Disconnect front fog lamp connector (1).
4. Turn bulb socket (2) counterclockwise unlock and remove it.
5. Remove bulb from its socket.
