Map Lamp

INTERIOR LAMP

Map lamp

REMOVAL AND INSTALLATION

Removal
1. Remove the map lamp lens.

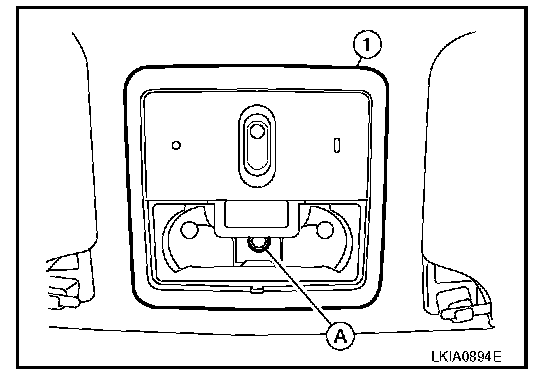

2. Remove the screw (A) from the map lamp (1).
3. Disconnect map lamp connector and remove map lamp (1).

Installation
Installation is in the reverse order of removal.
