Glove Box Lamp: Service and Repair
Bulb ReplacementGLOVE BOX LAMP
1. Remove glove box assembly.

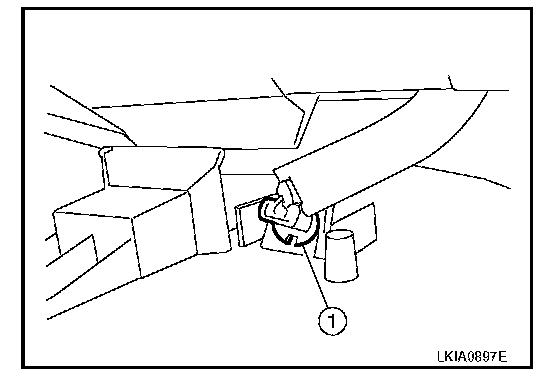

2. Turn bulb socket (1) counterclockwise and remove it.
3. Remove the bulb.
4. Installation of the bulb is in the reverse order of removal.
GLOVE BOX LAMP
1. Remove glove box assembly.
2. Turn bulb socket (1) counterclockwise and remove it.
3. Remove the bulb.
4. Installation of the bulb is in the reverse order of removal.
