Map Lamp

INTERIOR LAMP

Map lamp

BULB REPLACEMENT
1. Remove the map lamp.

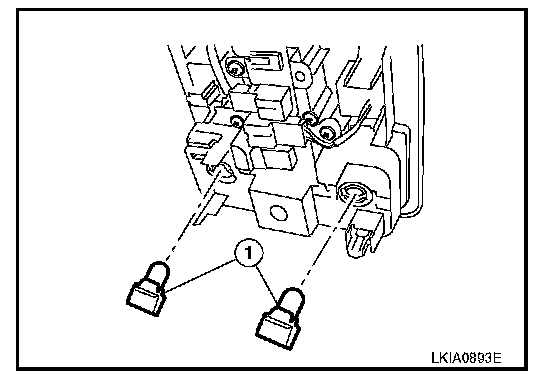

2. Twist and remove the bulbs (1) from lamp.
3. Installation is in the reverse order of removal.
