Center Mounted Brake Lamp: Service and Repair

Removal and Installation of High-Mounted Stop Lamp, All Except SE-R

REMOVAL

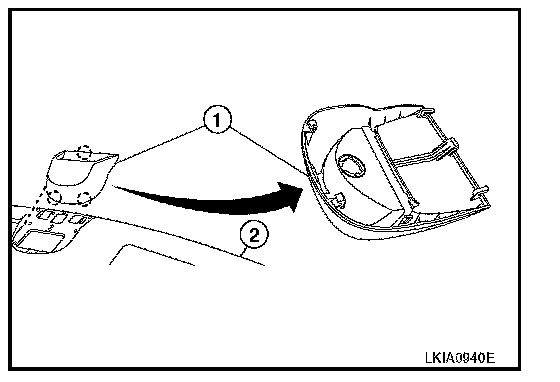

1. Unclip to release the rear high-mount stop lamp (1) from the rear parcel shelf finisher (2) and remove the rear high-mount stop lamp (1).
2. Disconnect the rear high-mounted stop lamp connector, turn the bulb socket counterclockwise and remove the high-mounted stop lamp bulb.

INSTALLATION
Installation is in the reverse order of removal.

Removal and Installation of High-Mounted Stop Lamp, SE-R

REMOVAL
1. Remove the trunk lid finisher.

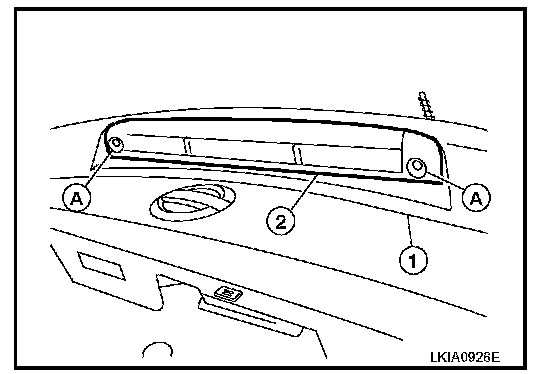

2. Remove the led high-mounted stop lamp screws (A), then remove the led high-mounted stop lamp assembly (2).
- Rear air spoiler (1)

INSTALLATION
Installation is in the reverse order of removal.
