Component Tests

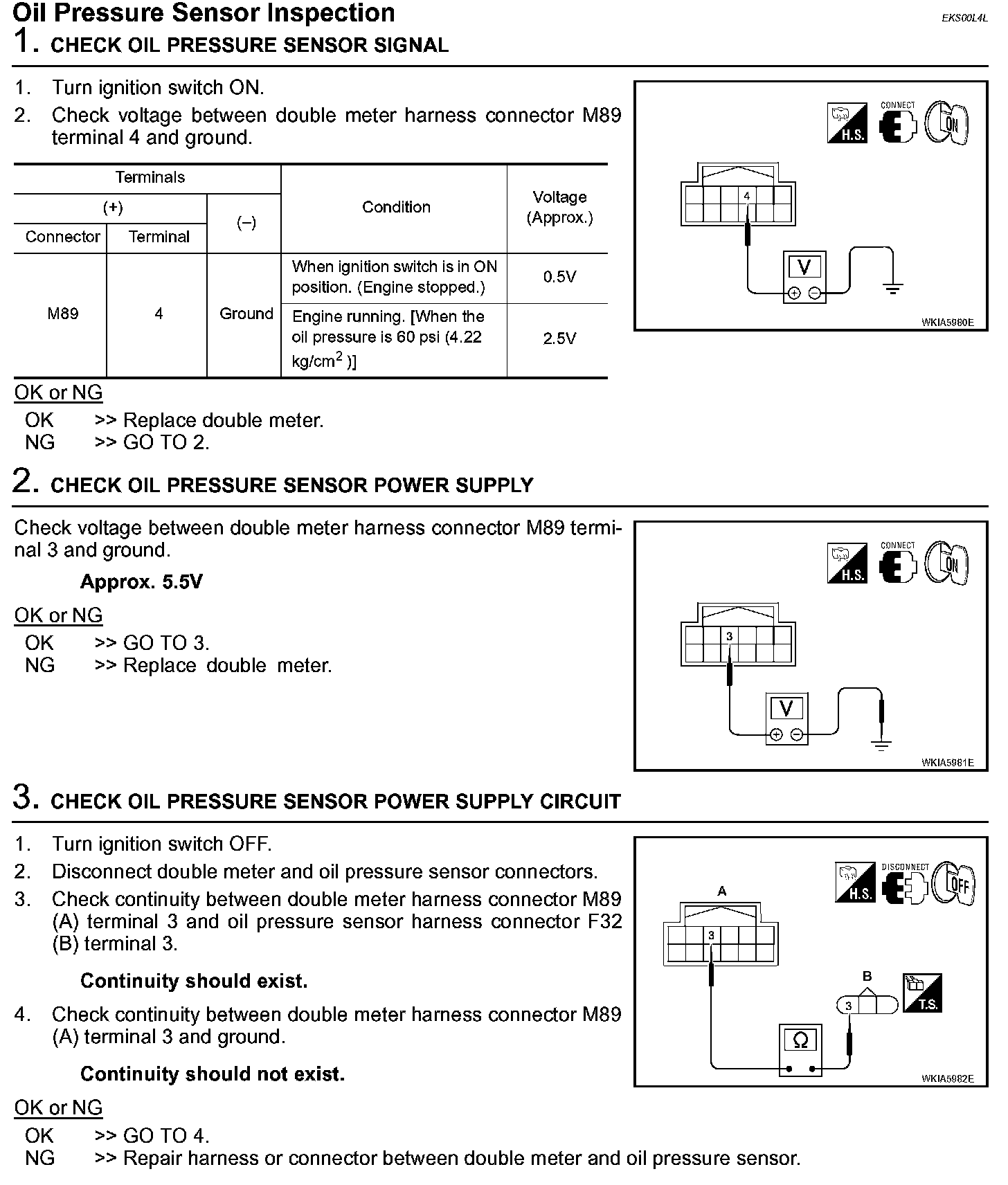

Oil Pressure Sensor Inspection (Steps 1 - 3):

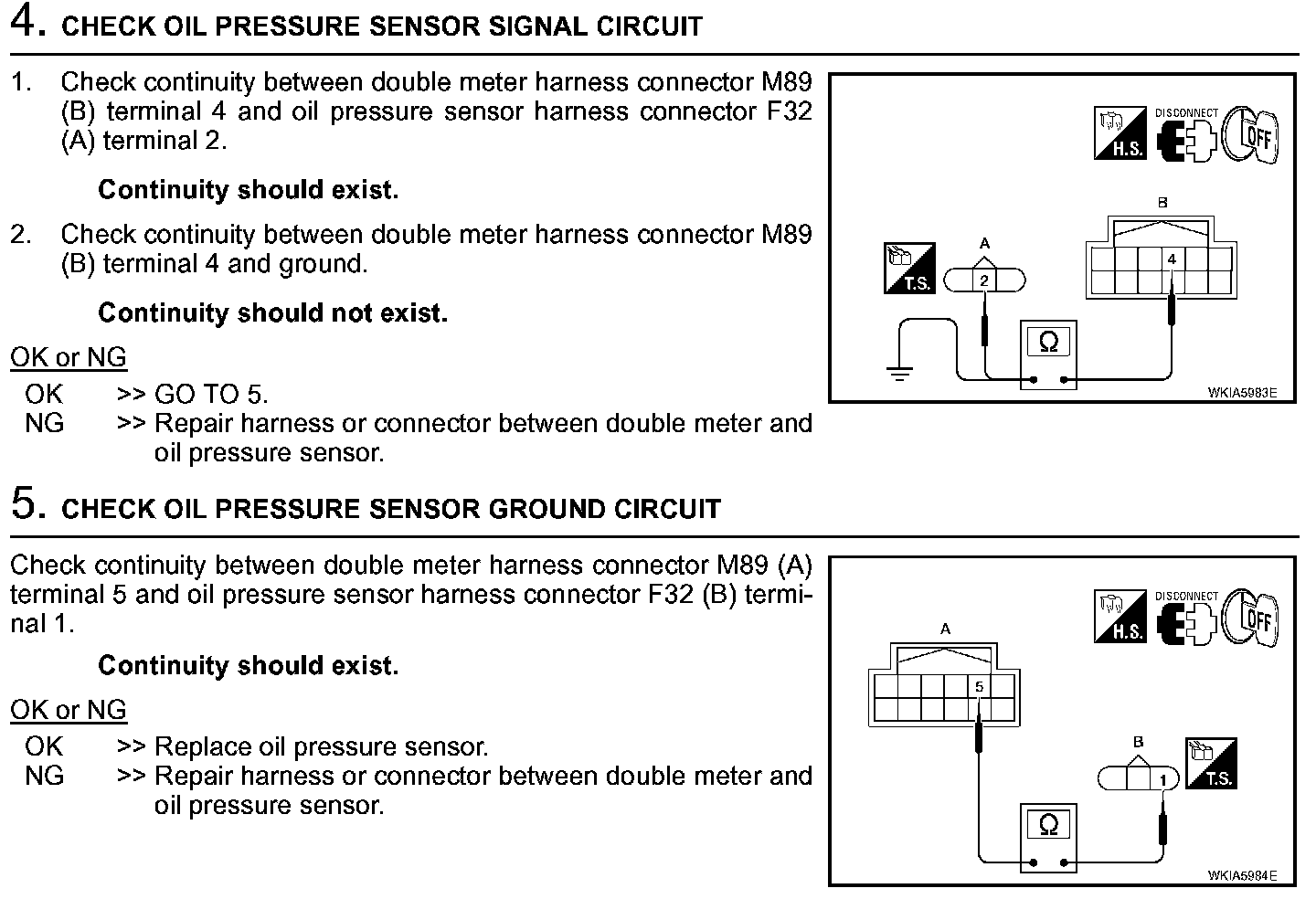

Oil Pressure Sensor Inspection (Steps 4 - 5):
