Vehicle Speed Signal Inspection

Vehicle Speed Signal Inspection

Symptom:
- Improper speedometer and odo/trip meter indication.
- Display VEHICLE SPEED CIRC [B2205] at the result of self-diagnosis for combination meter.

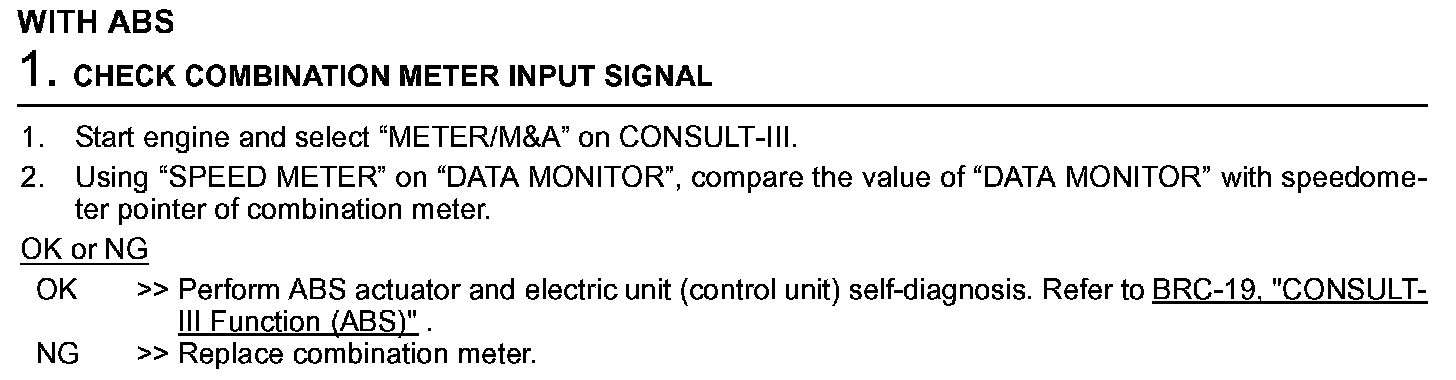

Vehicle Speed Signal Inspection (With ABS):

WITH ABS

Vehicle Speed Signal Inspection (Without ABS Or CVT):

WITHOUT ABS OR CVT

Vehicle Speed Signal Inspection (With CVT, Without ABS):

WITH CVT, WITHOUT ABS
