Fuel Level Sensor Unit Check

Electrical Components Inspection

FUEL LEVEL SENSOR UNIT CHECK
For removal, refer to "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY".

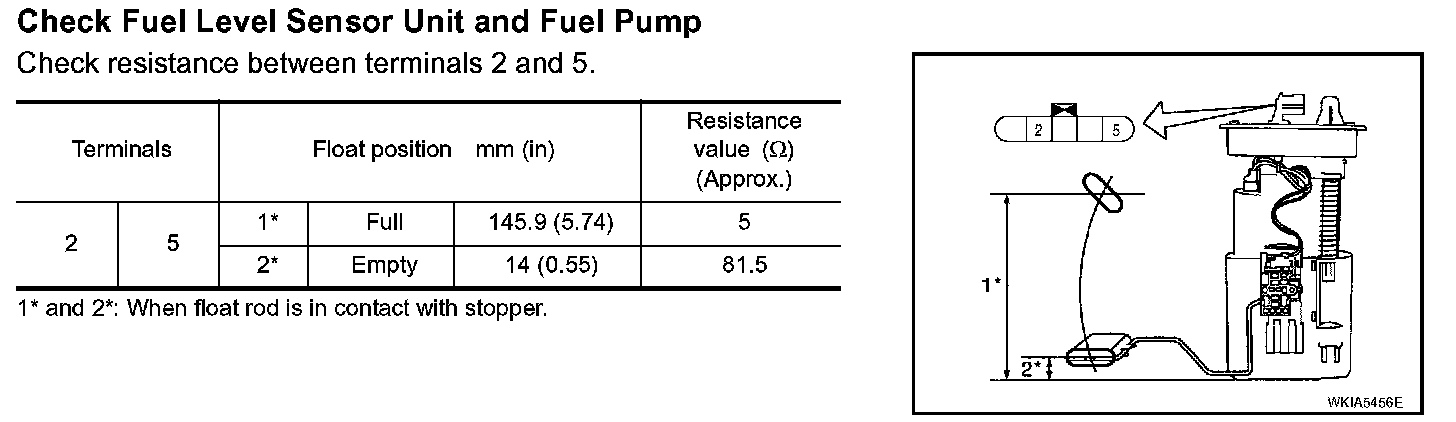

Check Fuel Level Sensor Unit and Fuel Pump

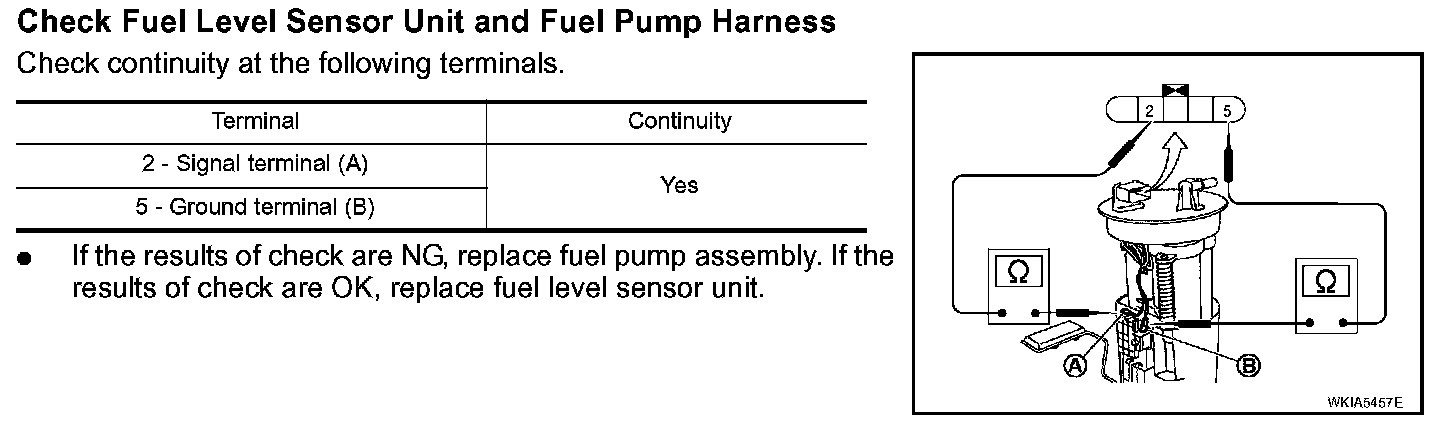

Check Fuel Level Sensor Unit and Fuel Pump Harness
