Fuel Level Sensor Signal Inspection

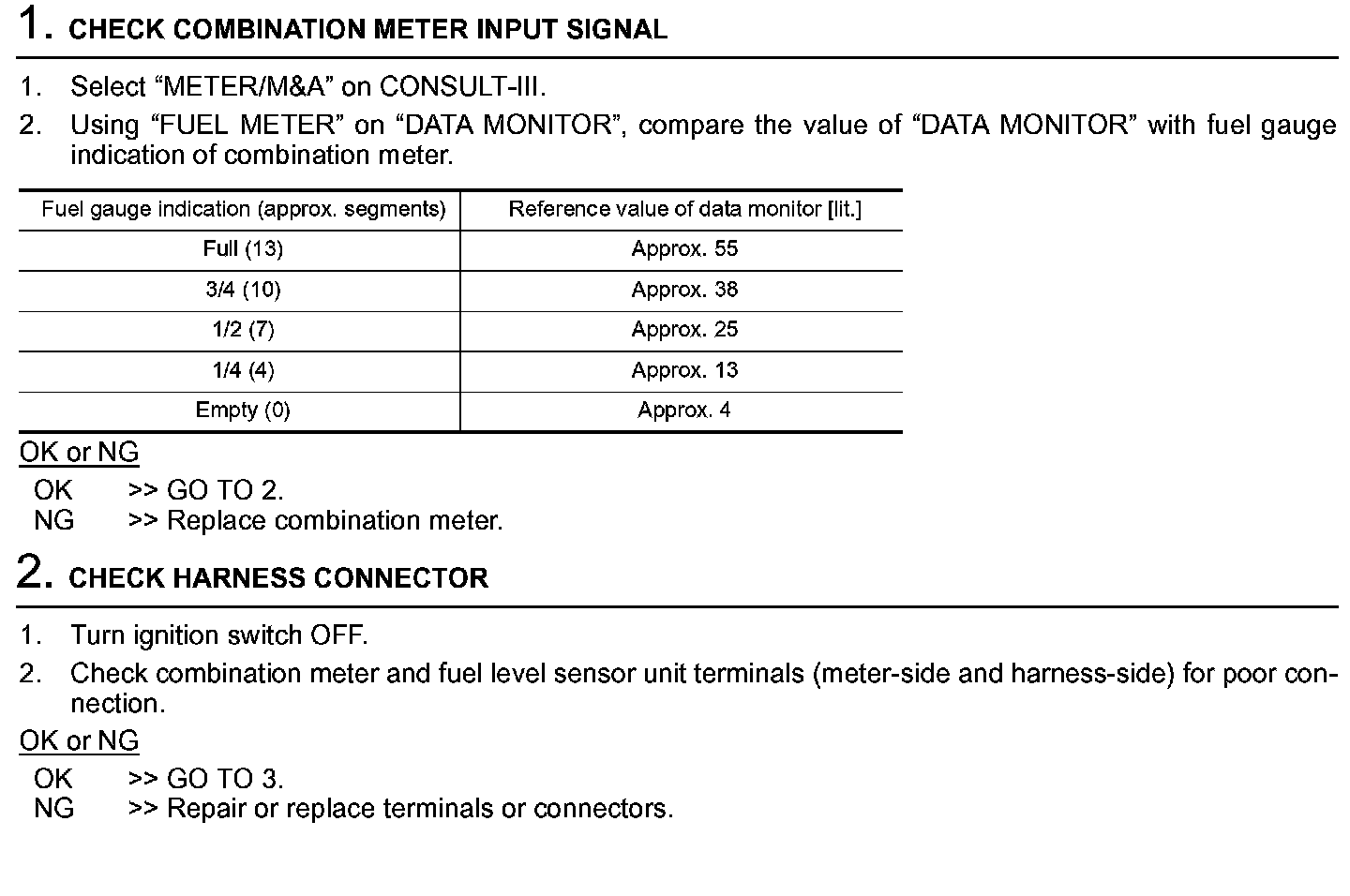

Fuel Level Sensor Signal Inspection (Steps 1- 2):

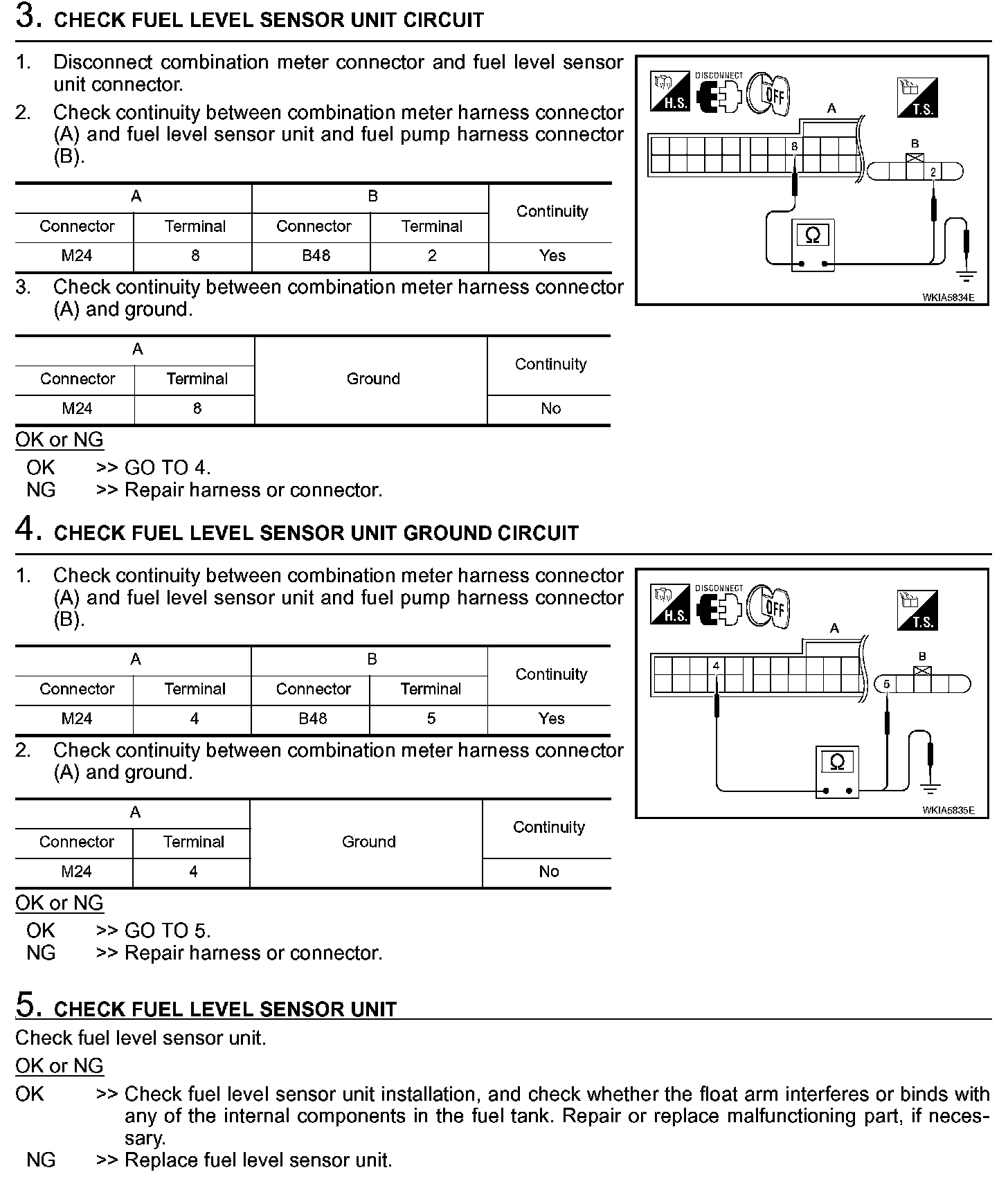

Fuel Level Sensor Signal Inspection (Steps 3 - 5):

Fuel Level Sensor Signal Inspection

Symptom:
- Improper fuel gauge indication.
- Low-fuel warning lamp indication is irregular.

NOTE:
The following symptoms do not indicate a malfunction.
- Depending on vehicle position or driving circumstance, the fuel level in the tank shifts and the indication may fluctuate.
- If the vehicle is fueled with the ignition switch ON, the indication will update slowly.
- If the vehicle is tilted when the ignition switch is turned ON, fuel in the tank may flow to one direction resulting in a change of reading.
