FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2007
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Seat Belt Buckle Switch LH Signal Inspection
Seat Belt Buckle Switch LH Signal Inspection

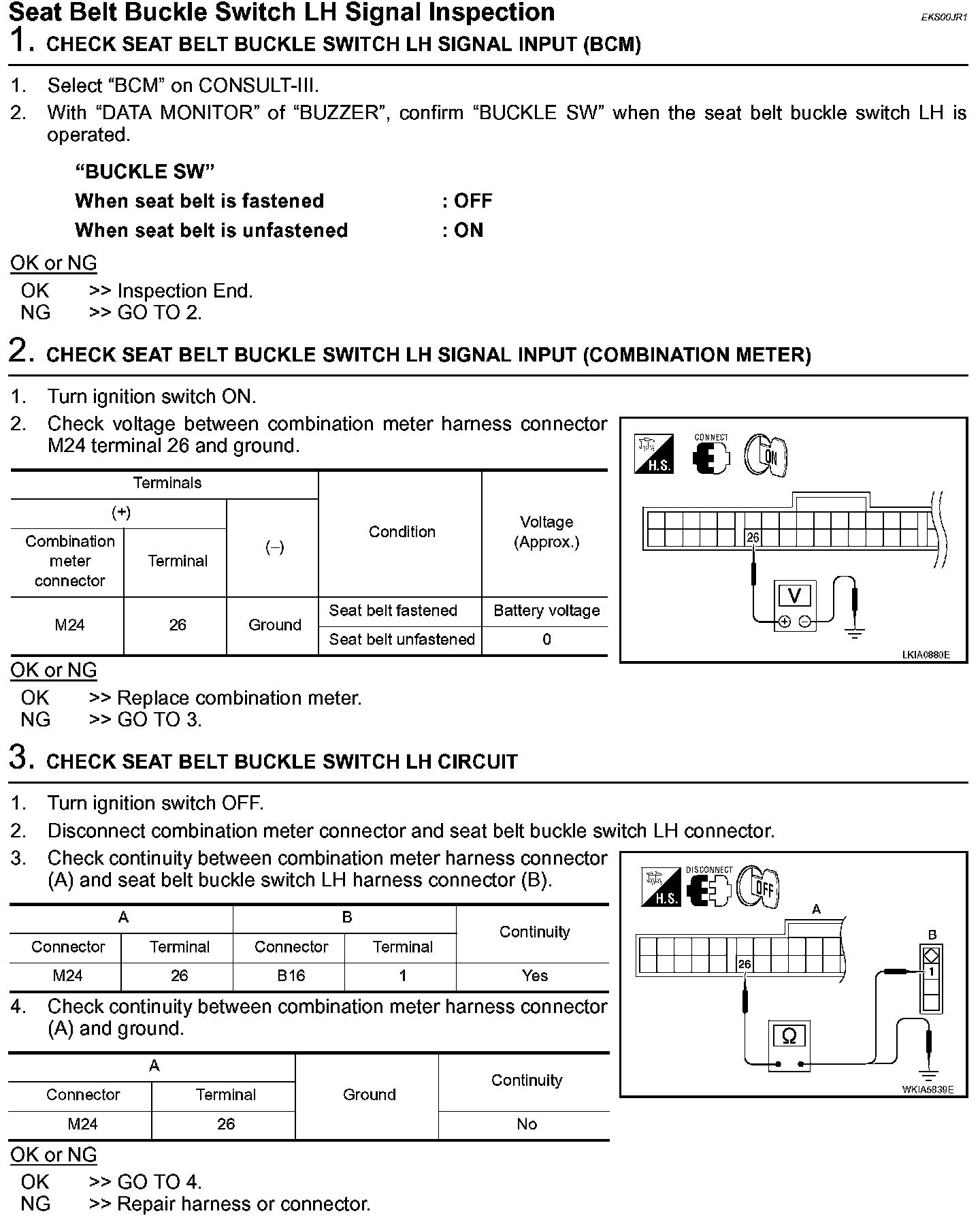

Seat Belt Buckle Switch LH Signal Inspection (Steps 1 - 3):

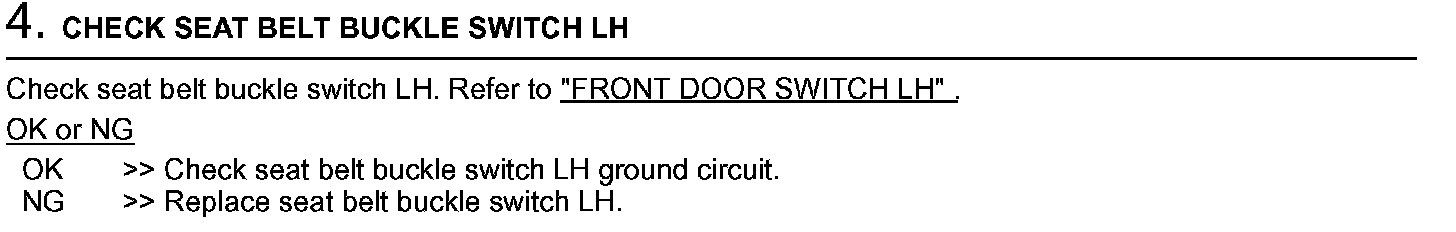

Seat Belt Buckle Switch LH Signal Inspection (Step 4):
