Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Front Door Switch LH Signal Inspection

Front Door Switch LH Signal Inspection

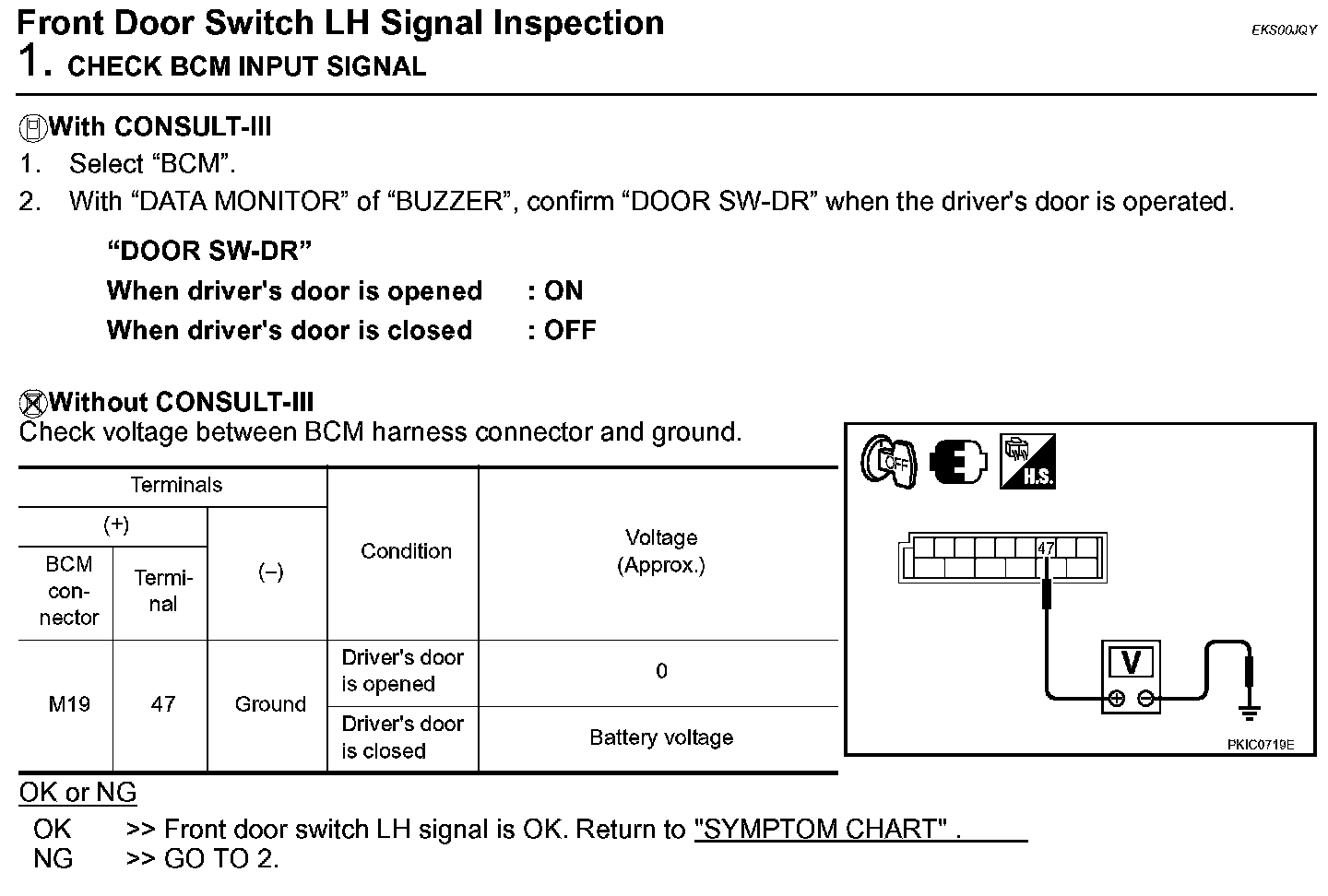

Front Door Switch LH Signal Inspection (Step 1):

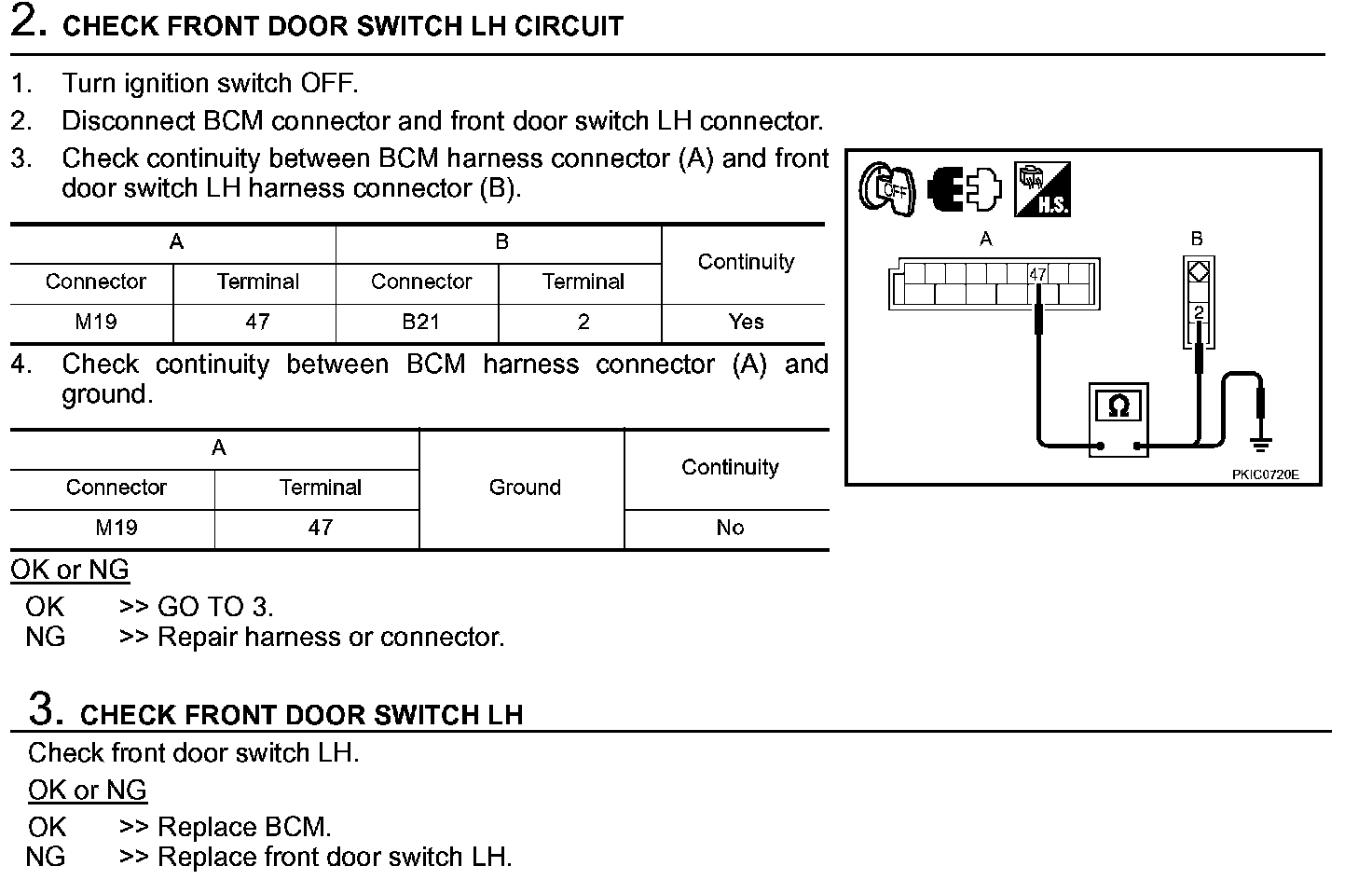

Front Door Switch LH Signal Inspection (Steps 2 - 3):
