Pinout Values and Diagnostic Parameters

Front Air Control Terminals and Reference Values

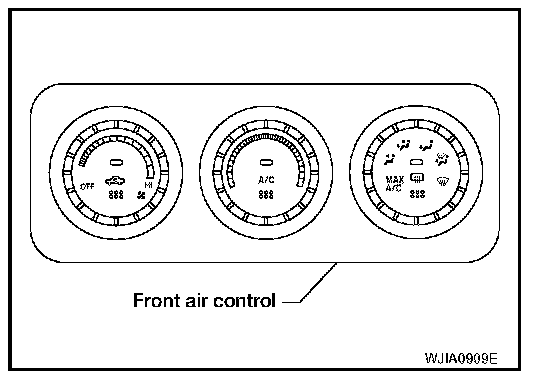

INSPECTION OF FRONT AIR CONTROL
- Measure voltage between each terminal and body ground by following Terminals and Reference Value for front air control.

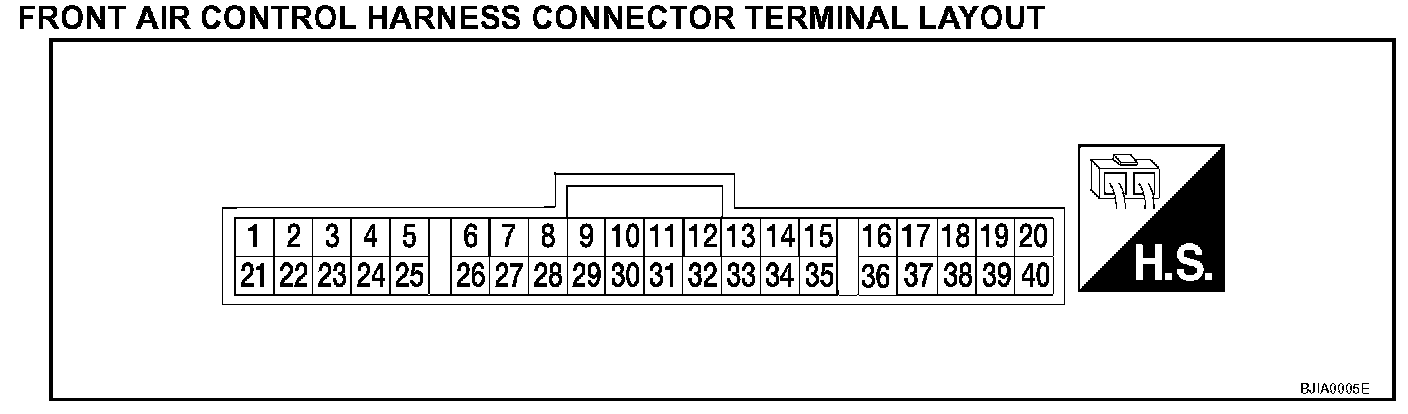

FRONT AIR CONTROL HARNESS CONNECTOR TERMINAL LAYOUT

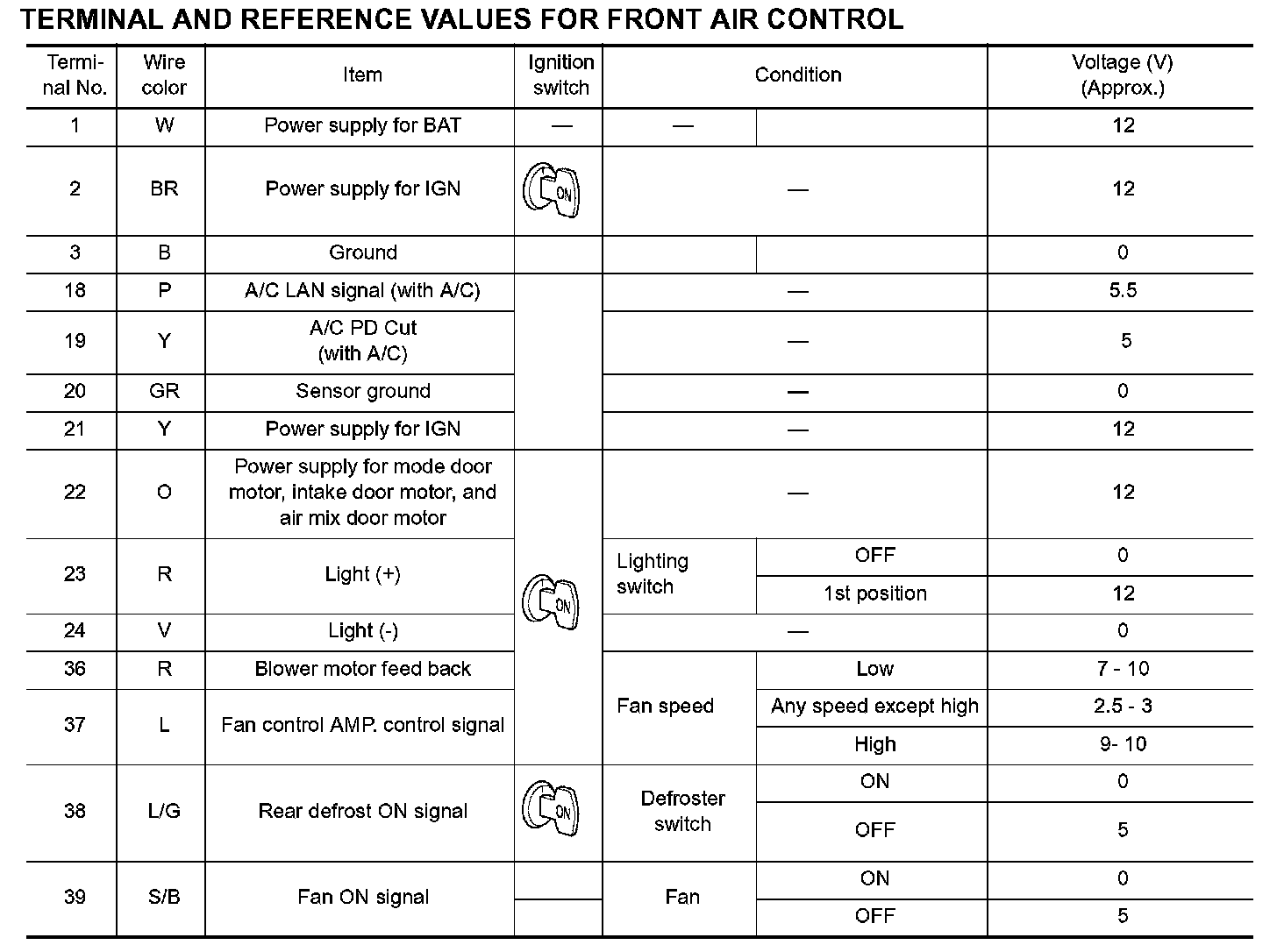

Terminals And Reference Values For Front Air Control (Part 1):

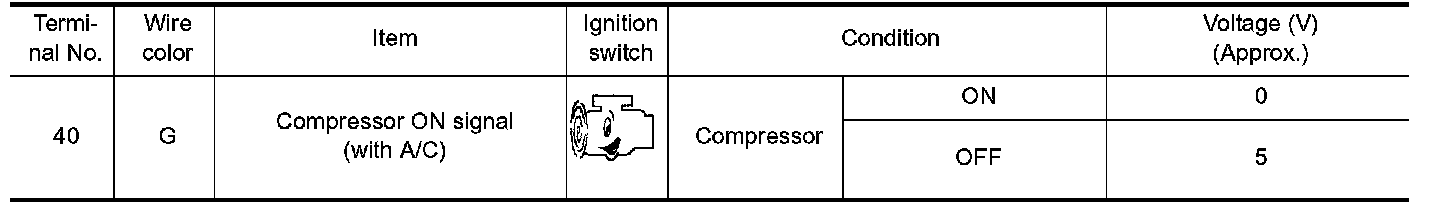

Terminals And Reference Values For Front Air Control (Part 2):

TERMINAL AND REFERENCE VALUES FOR FRONT AIR CONTROL
