Magnet Clutch Circuit

Magnet Clutch Circuit

SYMPTOM: Magnet clutch does not engage.

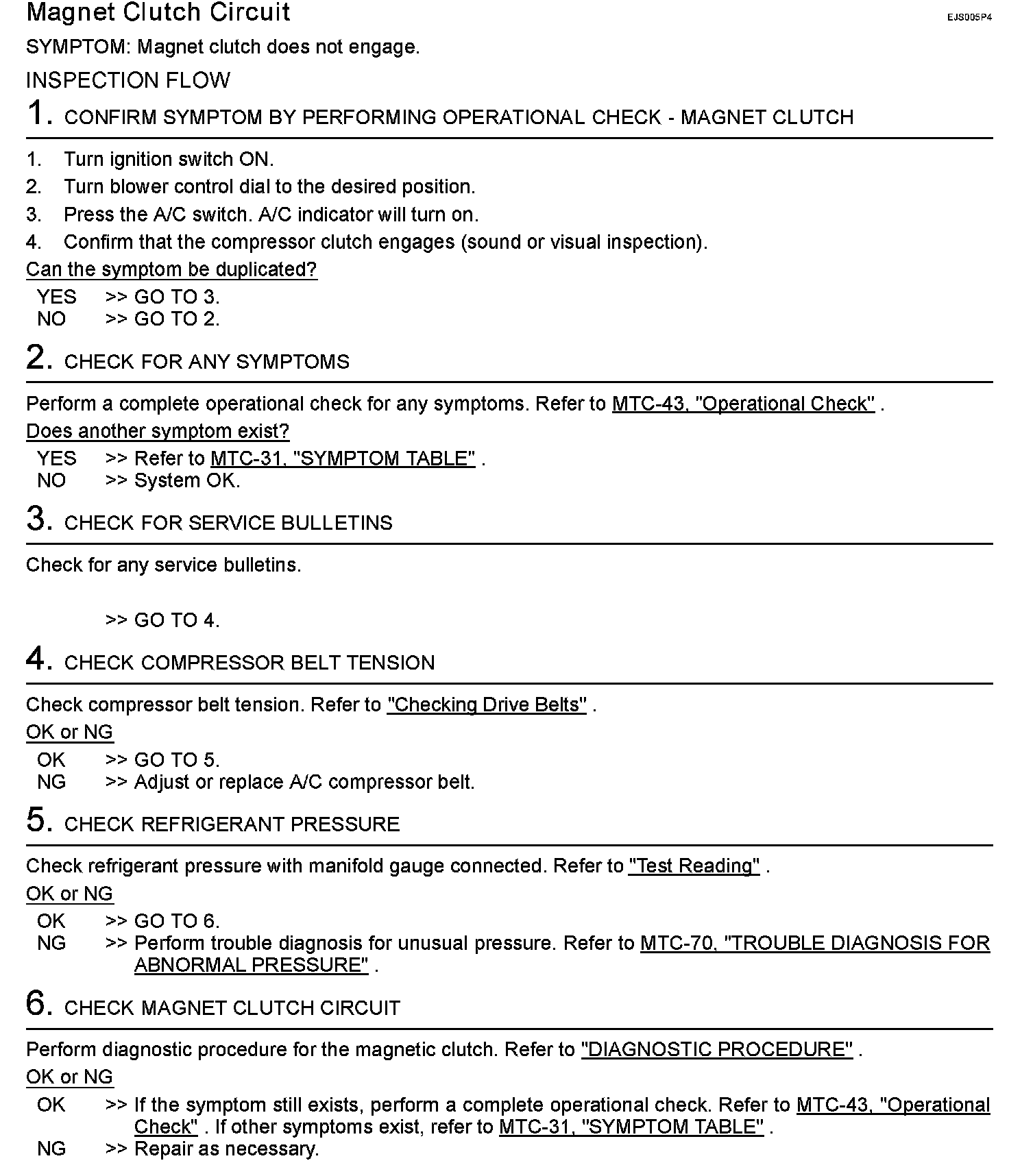

Inspection Flow:

INSPECTION FLOW

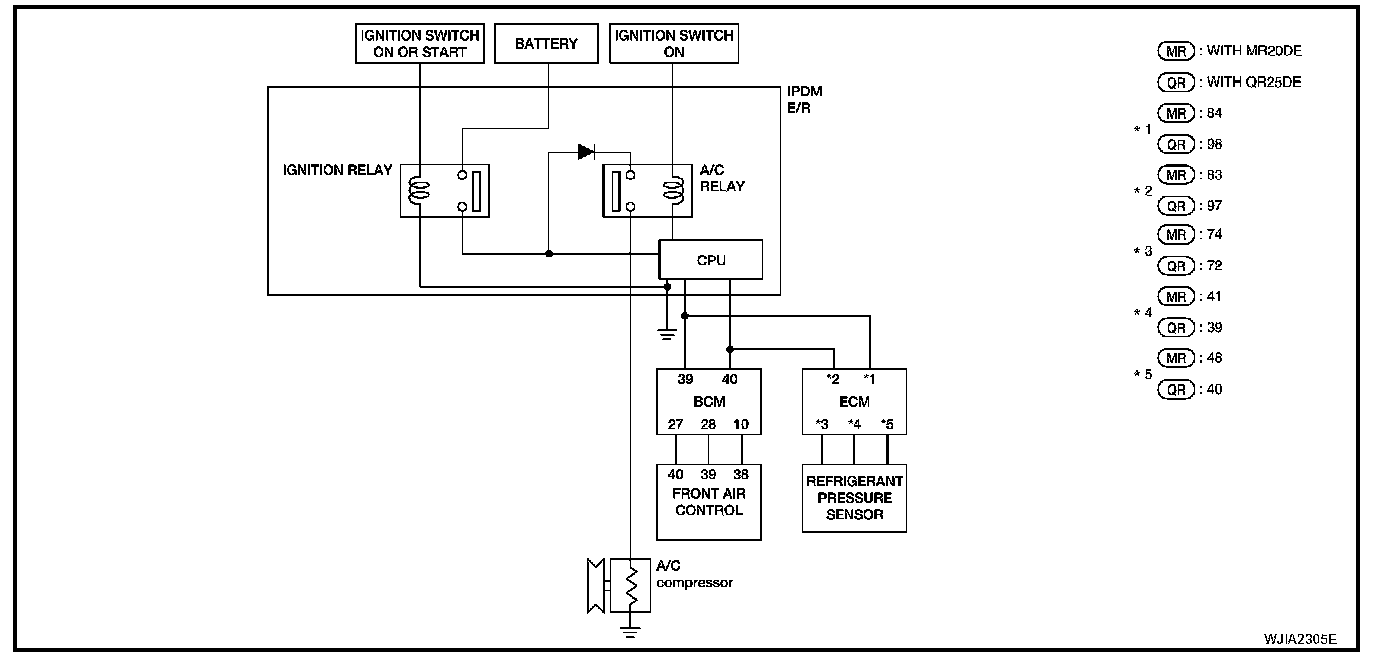

SYSTEM DESCRIPTION
Front air control controls compressor operation by a signal from ECM.

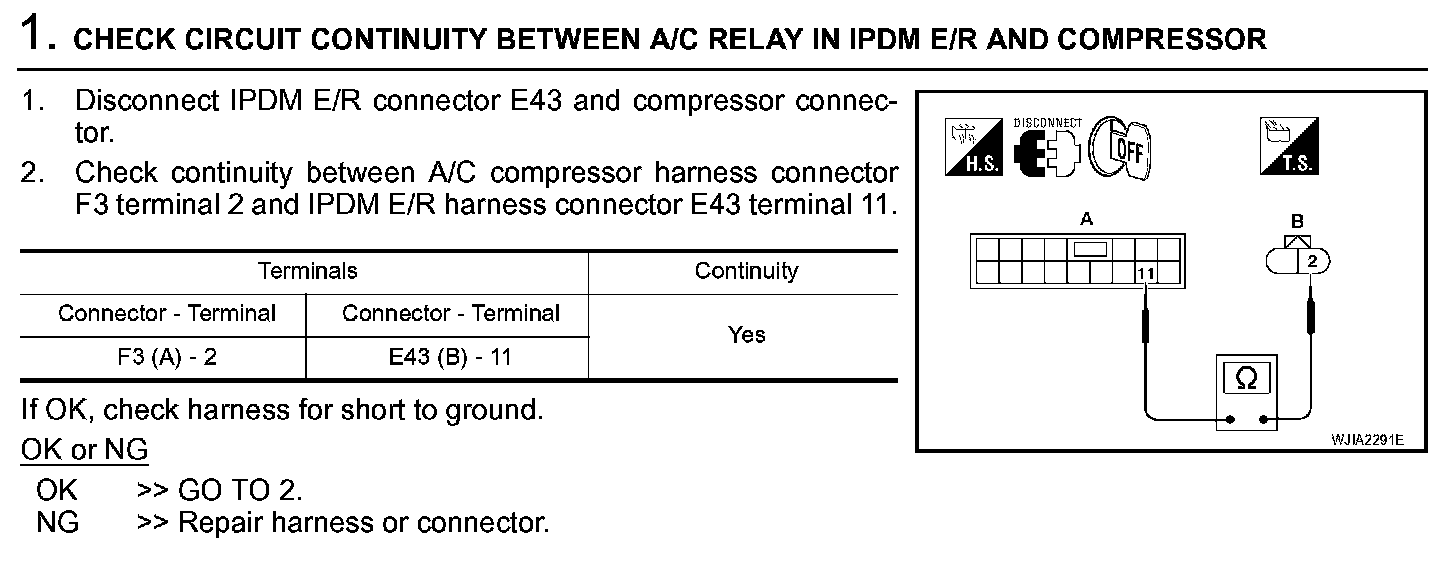

Diagnostic Procedure (Step 1):

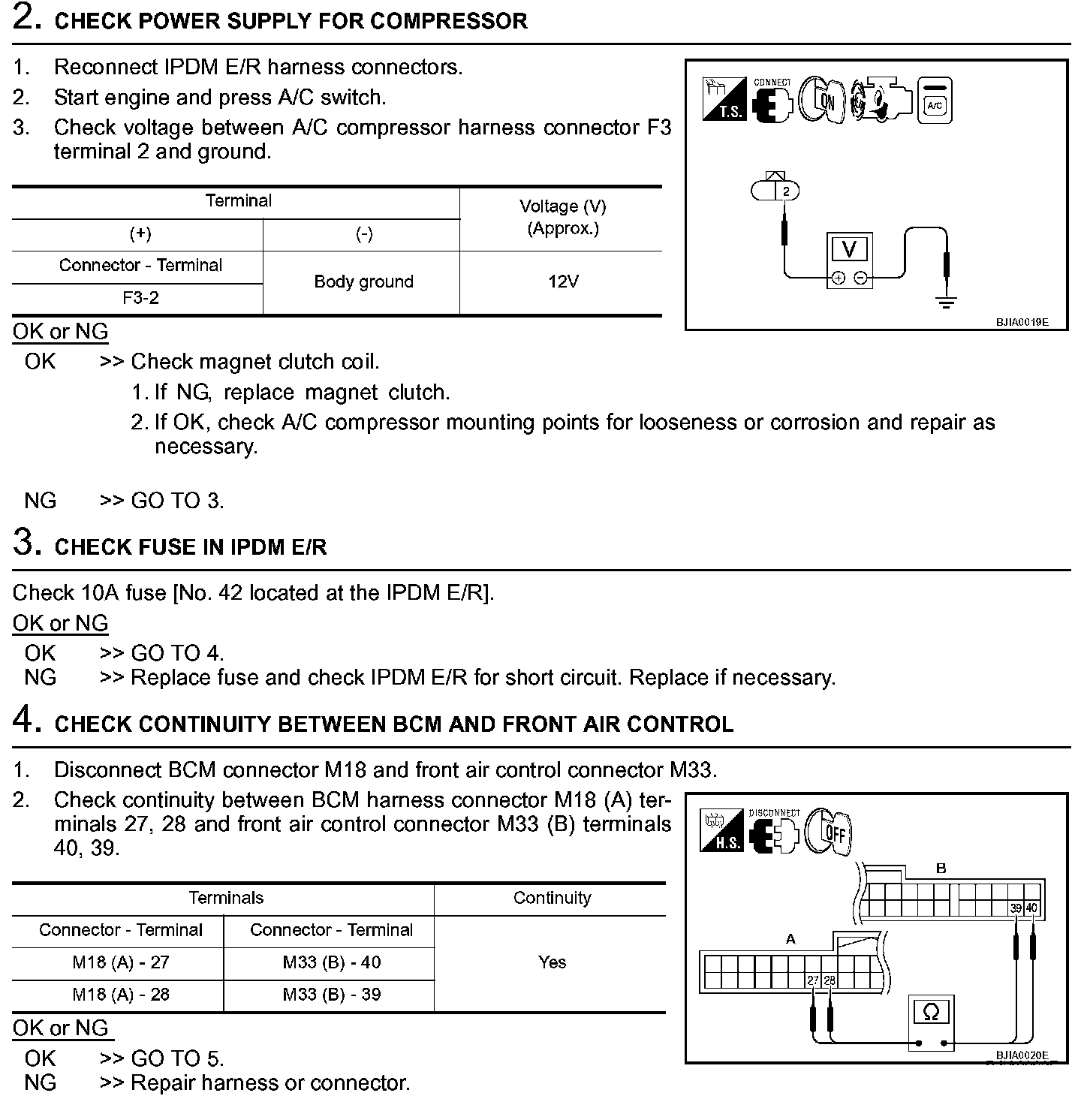

Diagnostic Procedure (Steps 2 - 4):

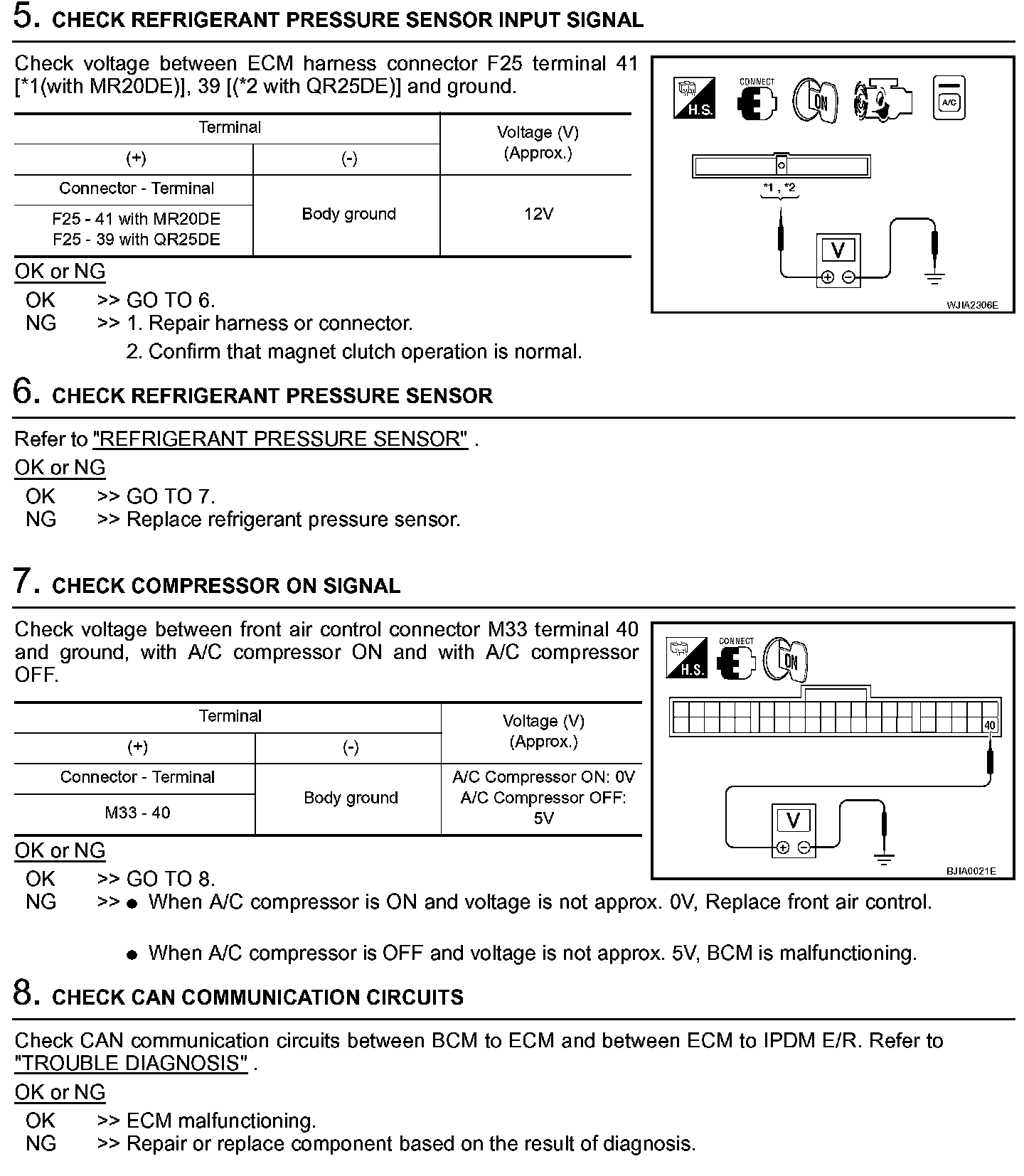

Diagnostic Procedure (Steps 5 - 8):

DIAGNOSTIC PROCEDURE

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.
