Evaporator Core: Service and Repair

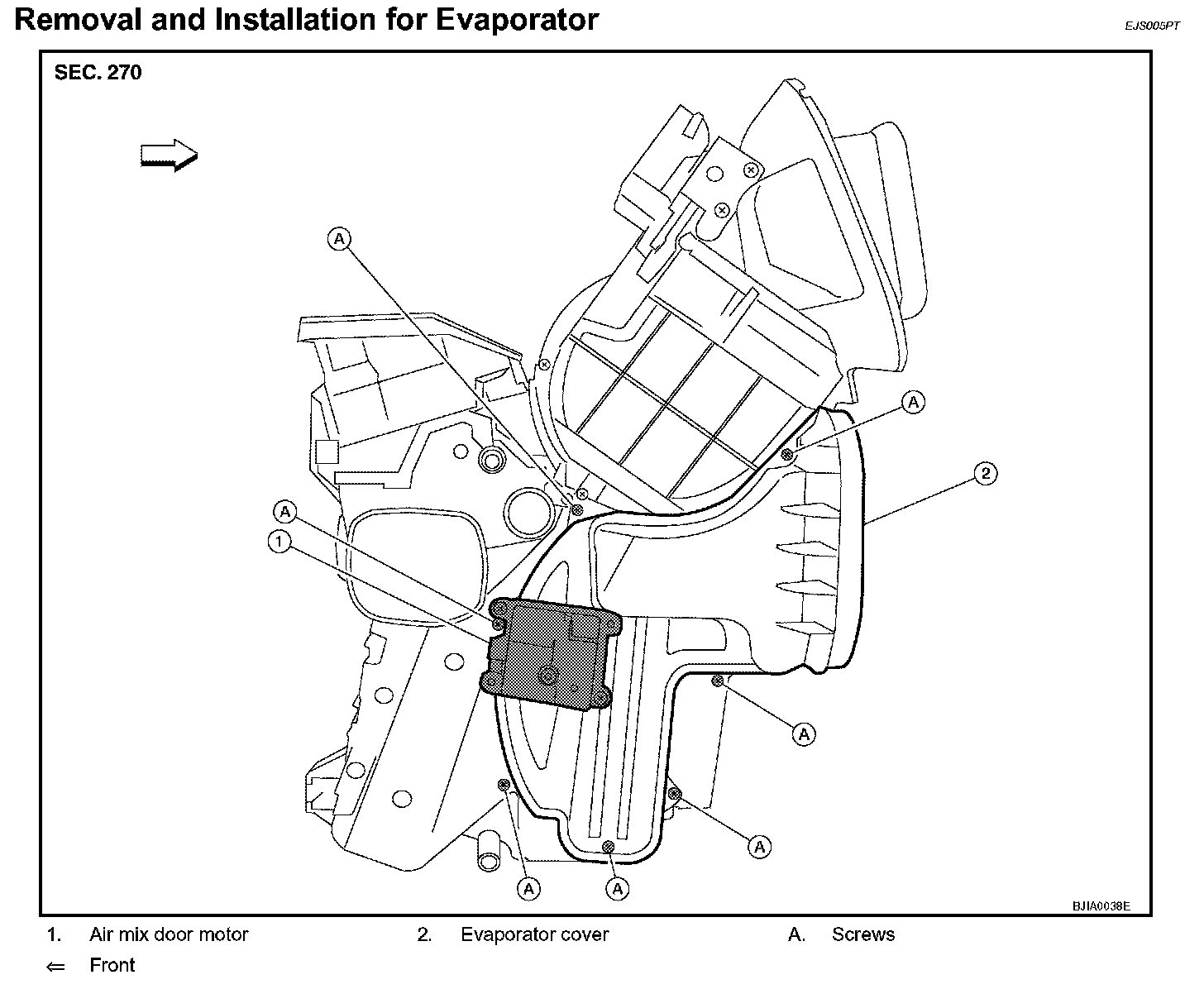

Removal and Installation for Evaporator

REMOVAL
1. Remove the expansion valve.
2. Remove the instrument lower cover RH. Refer to "Component Parts".
3. Remove the glove box.

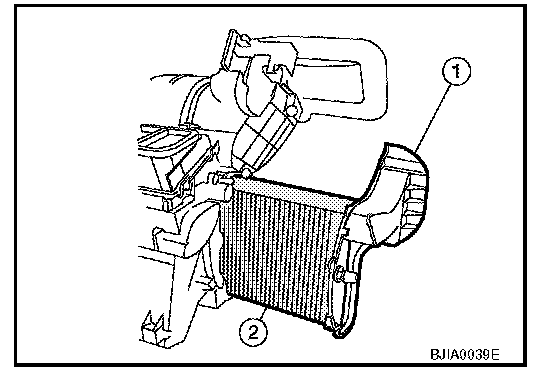

4. Remove the evaporator cover (1).
5. Remove the evaporator (2).

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- Replace the O-rings with new ones, then apply compressor oil to them when installing them.
