Control Assembly: Service and Repair

CONTROL UNIT

Removal and Installation

FRONT AIR CONTROL

Removal
1. Remove controller finisher. Refer to "INSTRUMENT PANEL ASSEMBLY".

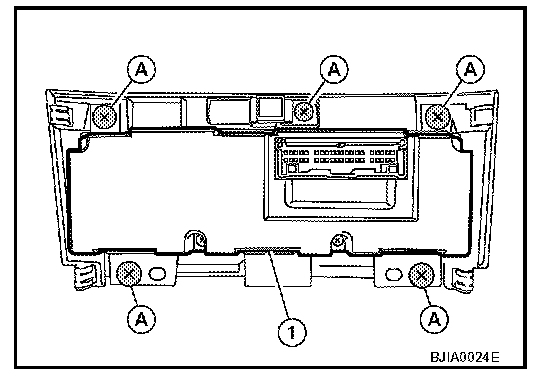

2. Remove the five screws (A) and remove the front air control (1).

Installation
Installation is in the reverse order of removal.
