Drive Belt Tensioner: Service and Repair

DRIVE BELTS

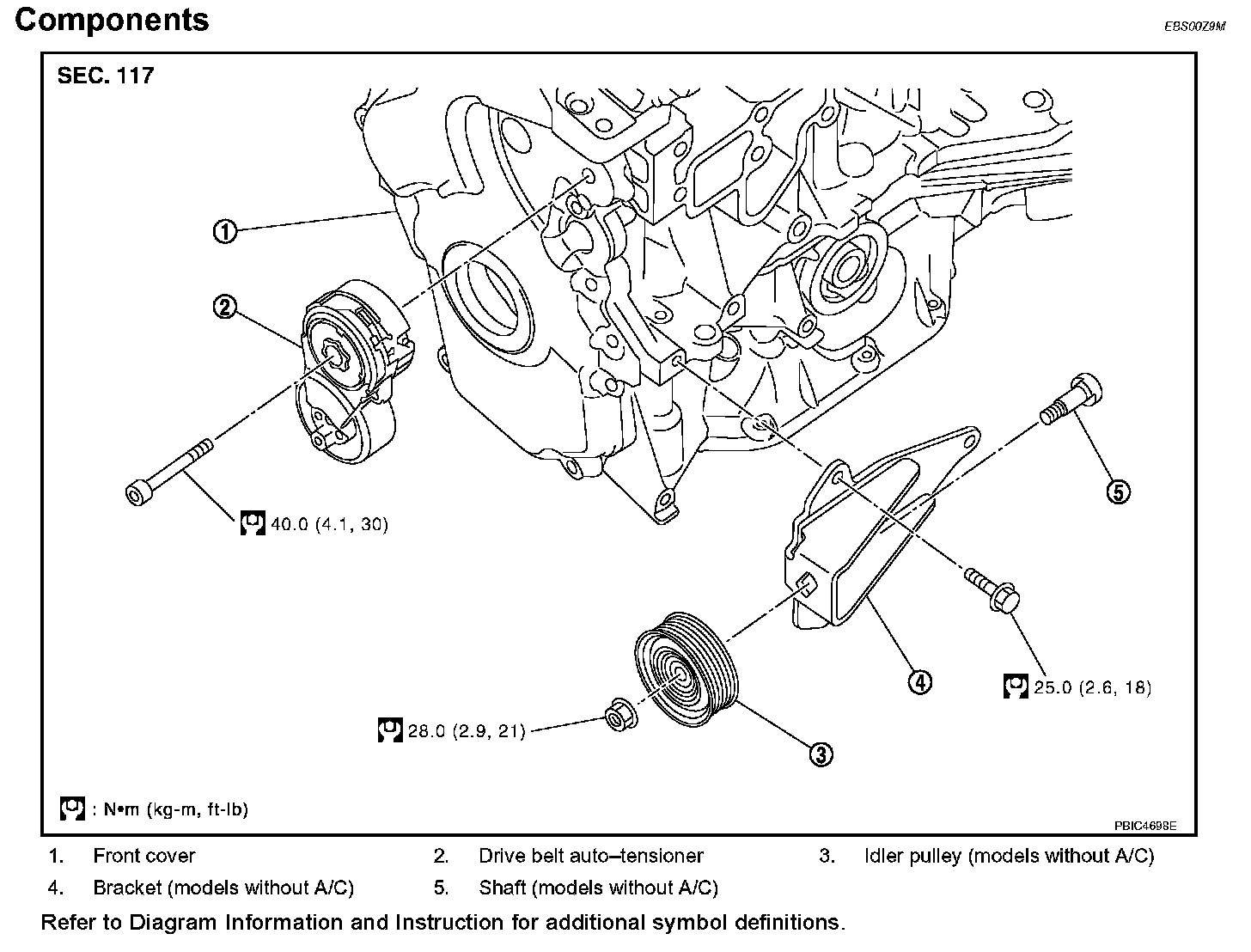

Exploded View EM-16:

Removal and Installation of Drive Belt Auto-Tensioner
REMOVAL
1. Remove drive belt.
2. Release the fixed drive belt auto-tensioner pulley.
3. Loosen bolt and remove drive belt auto-tensioner.

NOTE: Use TORX socket (size T50).

4. Remove idler pulley and bracket (models without A/C).

INSTALLATION
Installation is the reverse order of removal.

CAUTION:
^ When installing drive belt auto-tensioner, be careful not to interfere with water pump pulley.
^ If there is damage greater than peeled paint, replace drive belt auto-tensioner and/or idler pulley.
