Checking Cooling System For Leaks

CHECKING COOLING SYSTEM FOR LEAKS

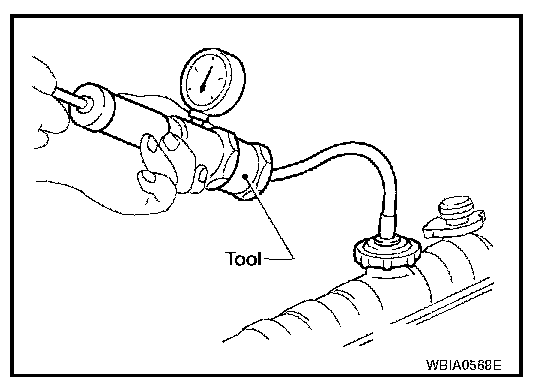

To check for leaks, apply pressure to the cooling system using Tool.
Tool number: EG17650301 (J-33984-A)
Testing pressure: 157 kPa (1.6 kg/cm2, 23 psi)

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.

CAUTION: Higher pressure than specified may cause radiator damage.
