Engine Control System Schematic

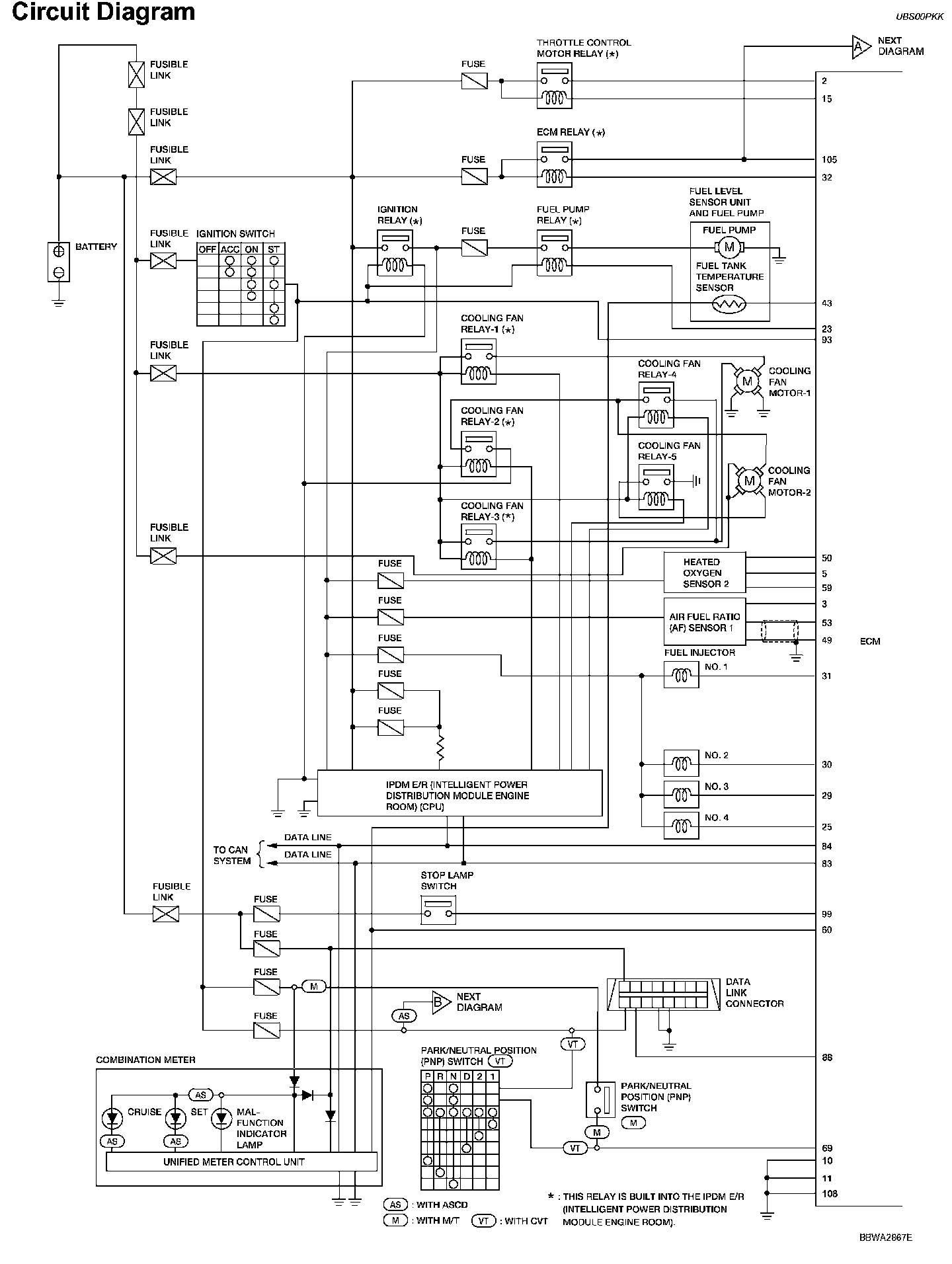

Engine Control System Schematic (Part 1):

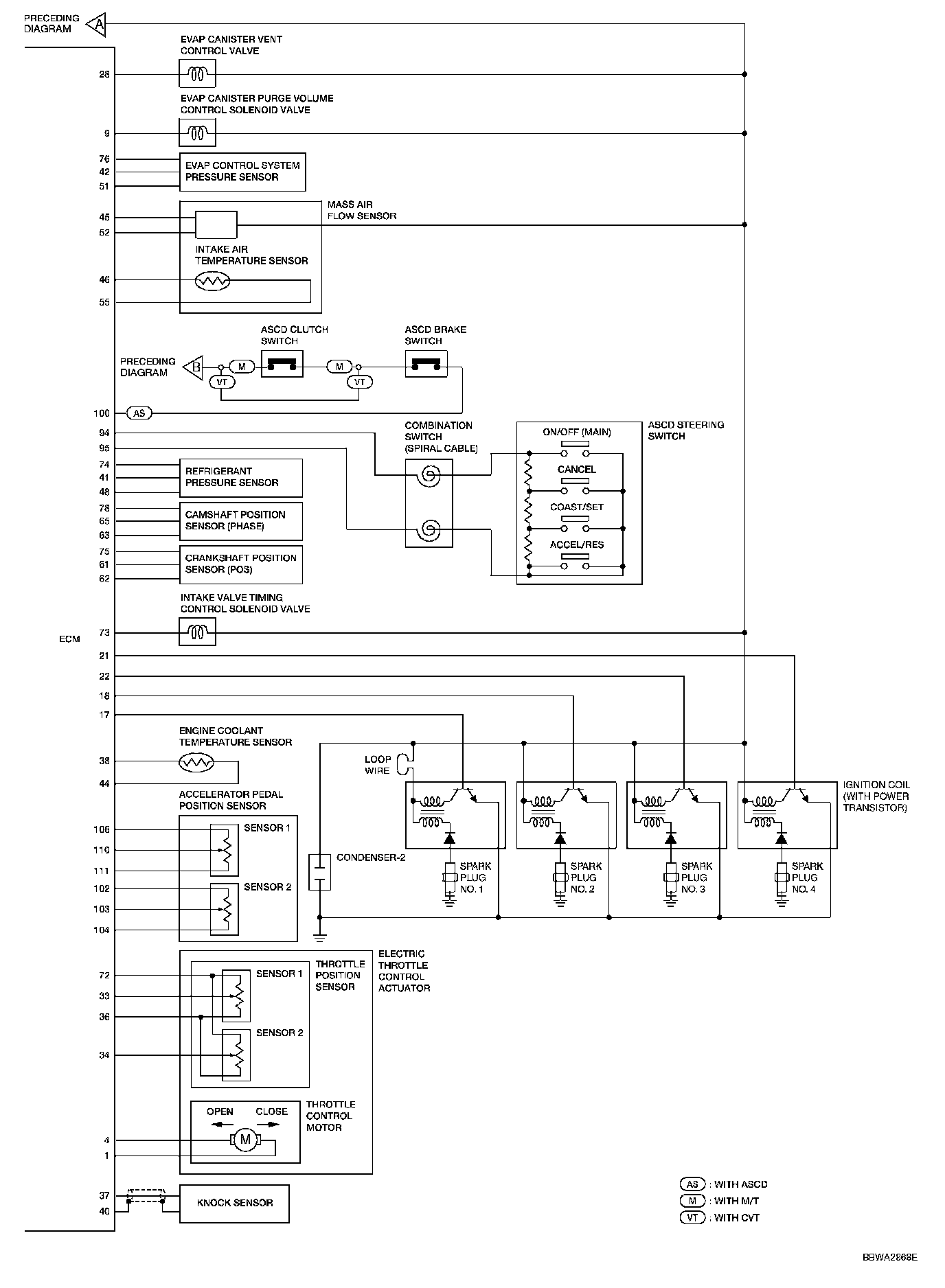

Engine Control System Schematic (Part 2):
