Engine Room Harness

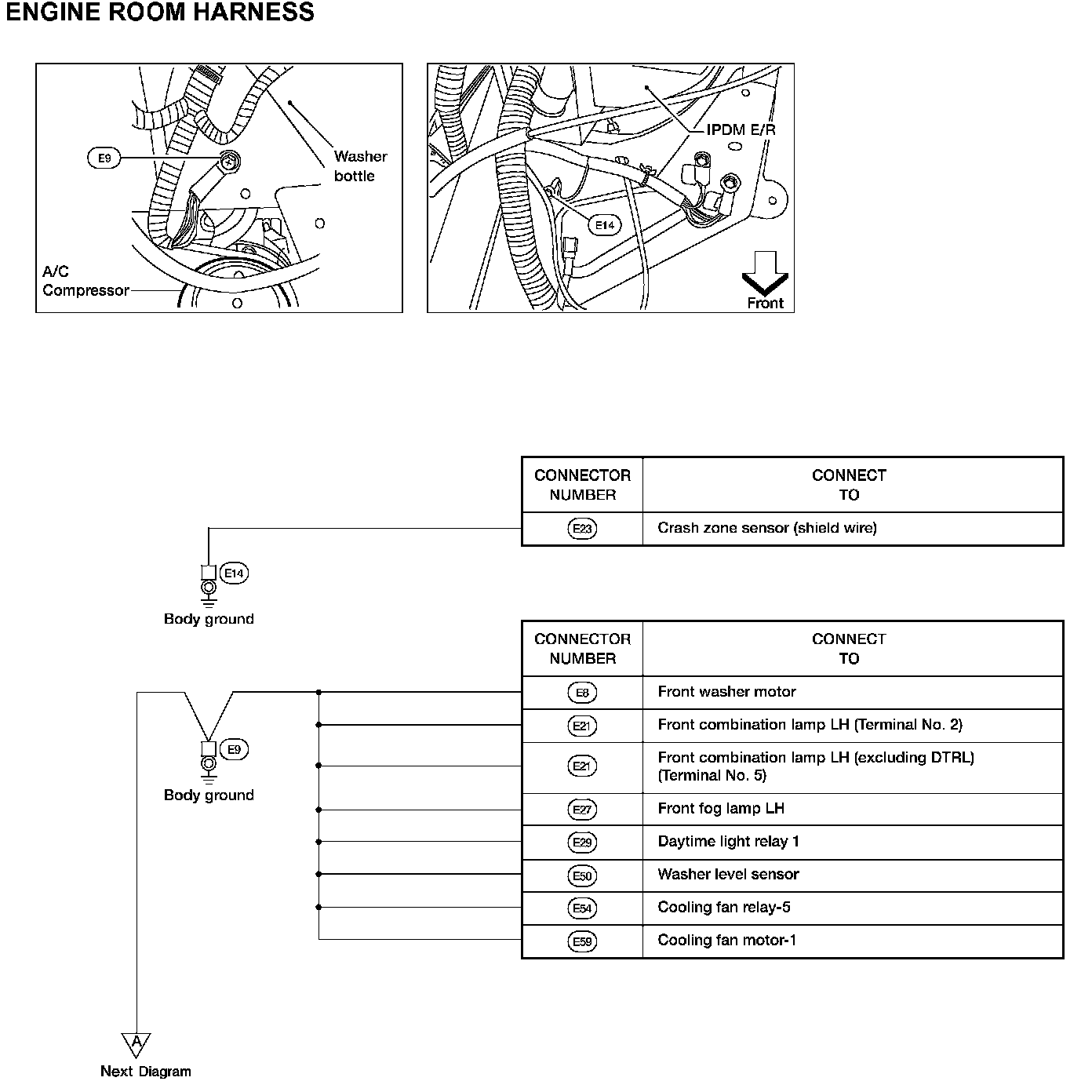

Engine Room Harness (Part 1):

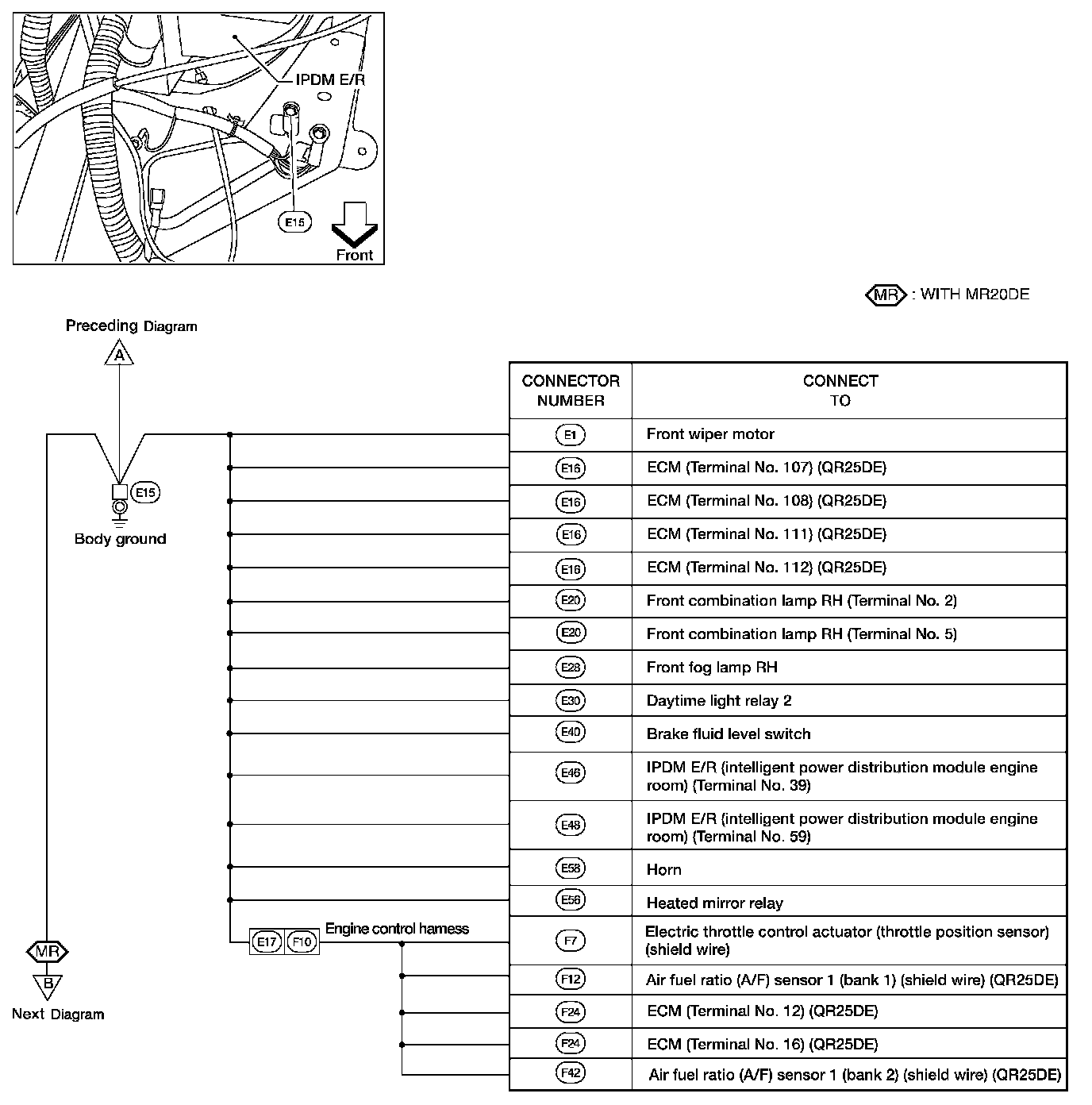

Engine Room Harness (Part 2):

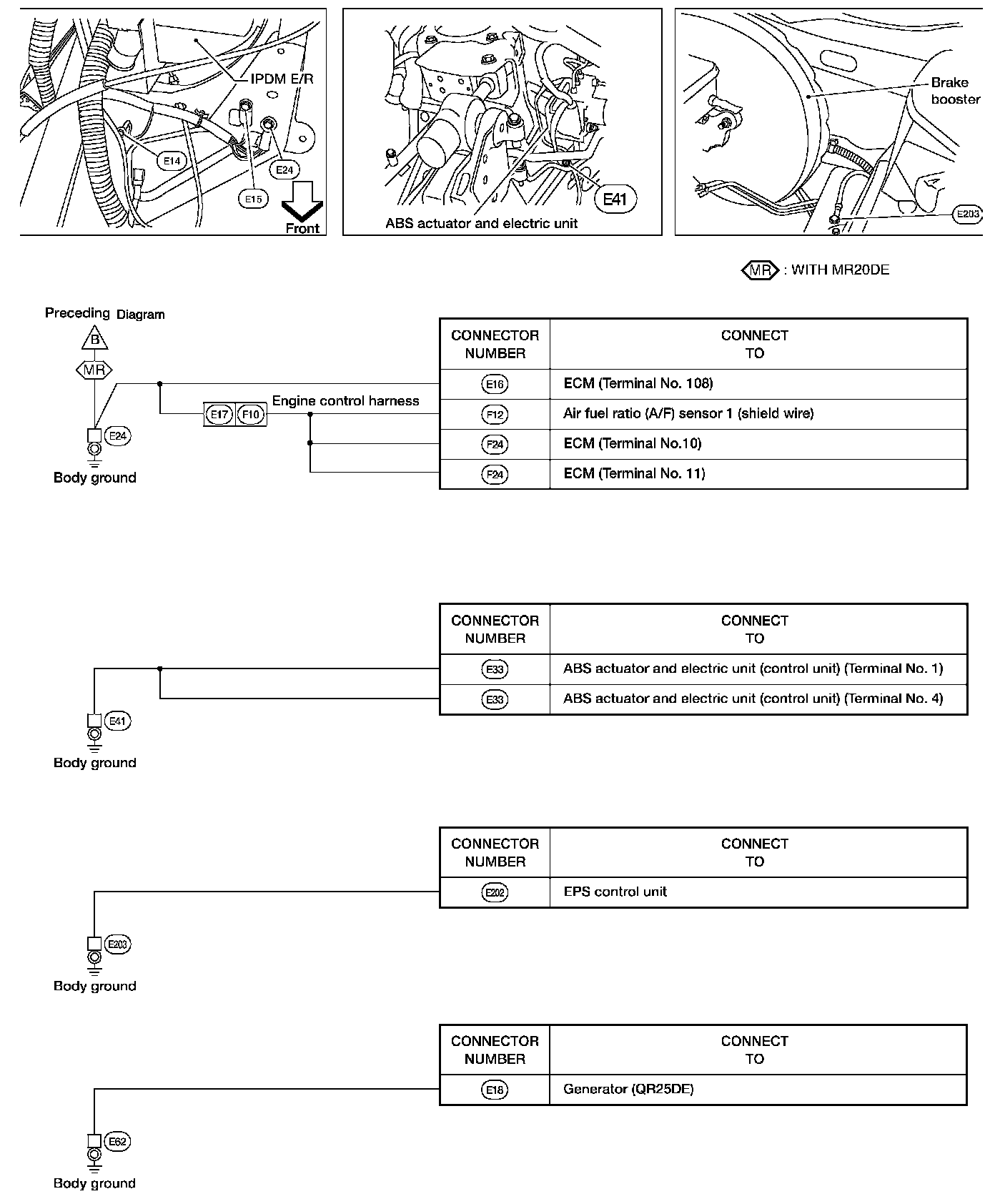

Engine Room Harness (Part 3):
