Headlamp (For CANADA) - Daytime Light System Schematic

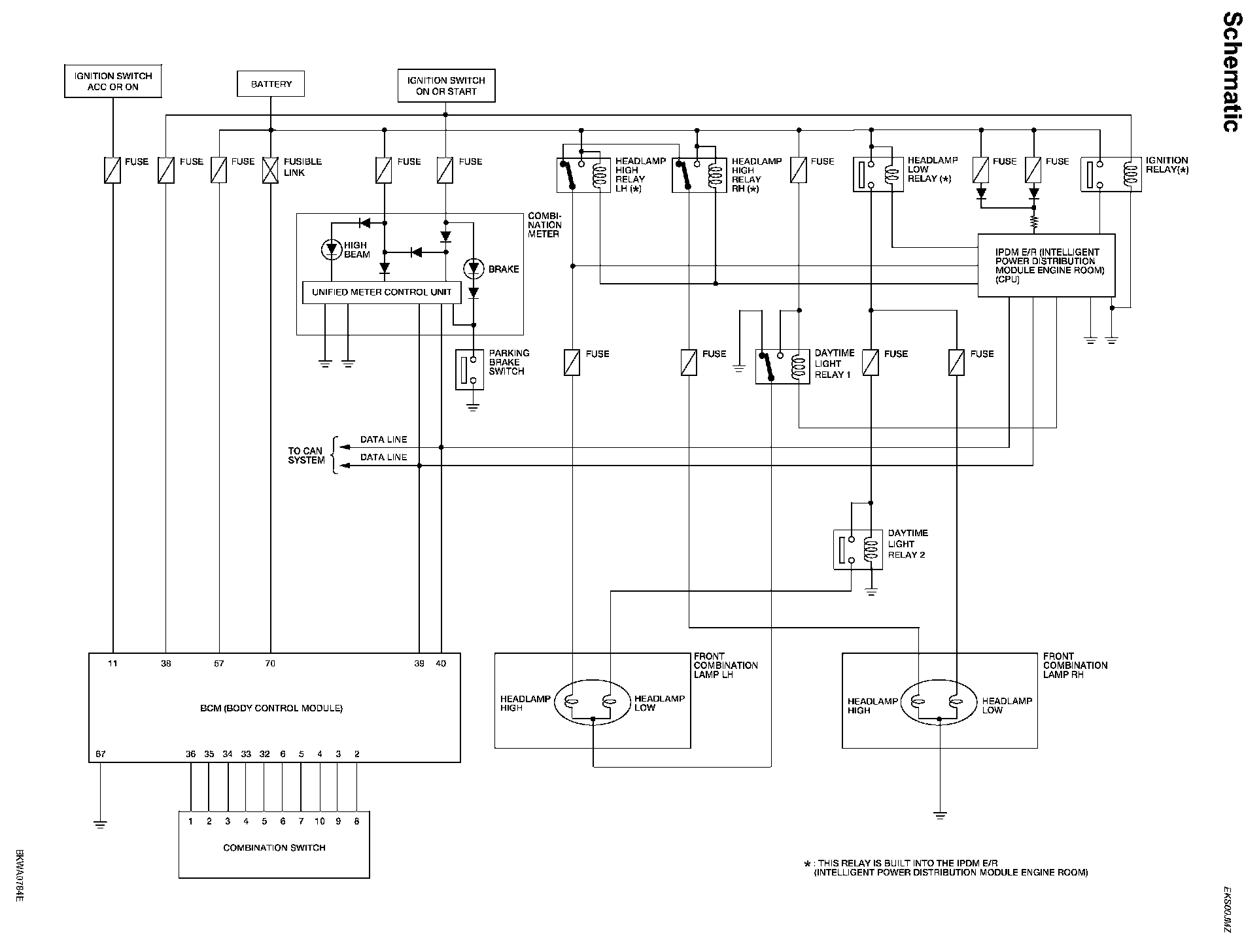

Headlamp (For Canada) - Daytime Light System Schematic:
